Square Pallet Tooling Plates – Mini (500mm)

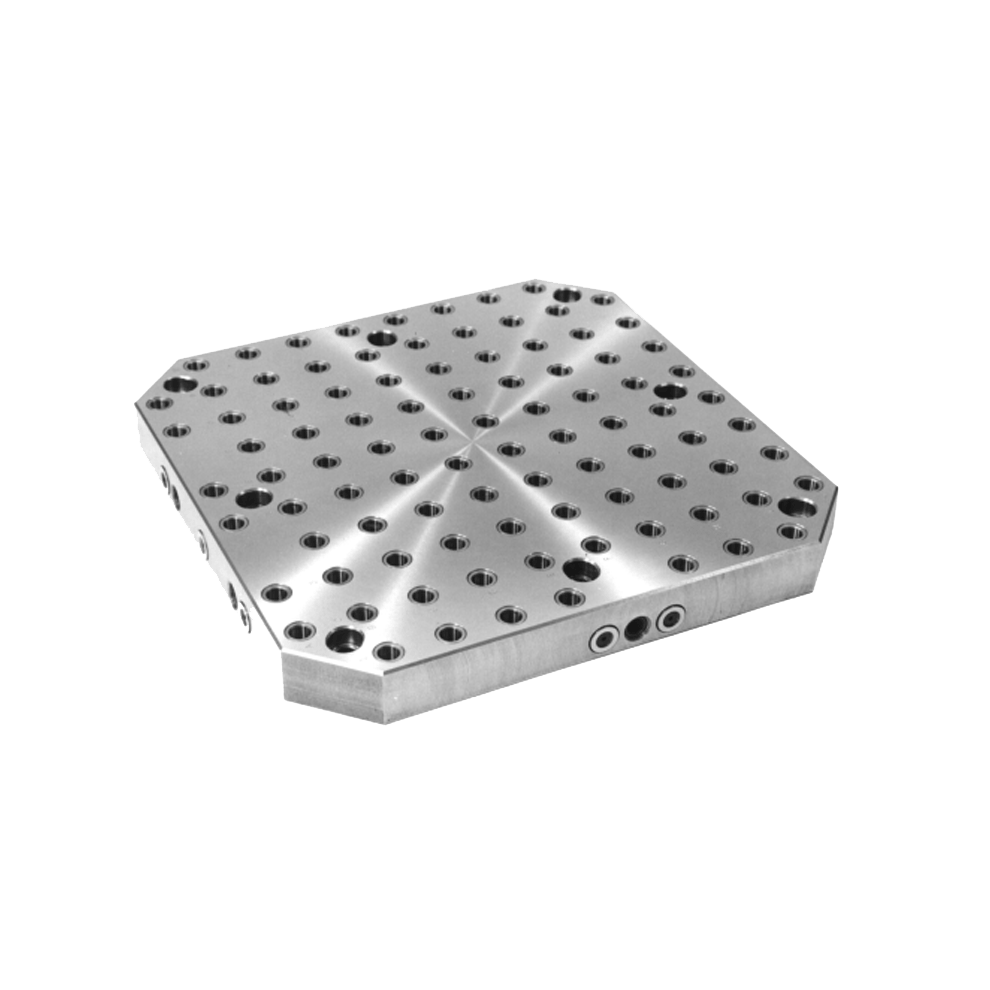

Three Dimensional (3D) View
View Large Image
Carr Lane

CL-MF25-0802  •  Square Pallet Tooling Plates – Mini (500mm)

Pricing & Availability

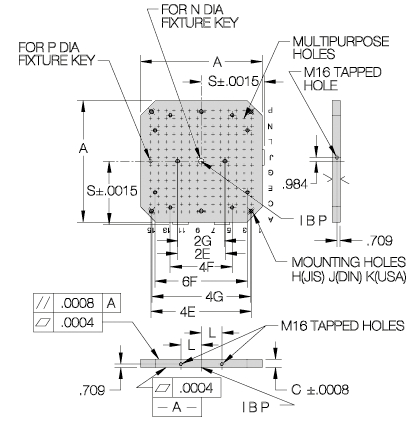

SQUARE PALLET TOOLING PLATE


Status Legend:
  • !

Part Specifications

Part NumberHOLE
THREAD
HOLE
ID
HOLE
SPACING
HOLE
PATTERN
A
NOMINAL
A
ACTUAL
CE
(JIS)
F
(DIN)
G
(USA)
H
(JIS)
J
(DIN)
K
(USA)
LN
DIA
P
DIA
SWEIGHT
(lbs)
CL-MF25-08025/16-18.50001.000019 x 19500mm19.131.5000100mm100mm4.000M16M125/8-11 or M162.95325mm20mm9.8425130

Oops! We can’t seem to find this drawing in our database. Please email [email protected] with the item number and file type you require.
