Modular Tooling Plates & Blocks – 1/2" (Standard)

Modular Fixturing

Save to My Project

What is this?

Product Information

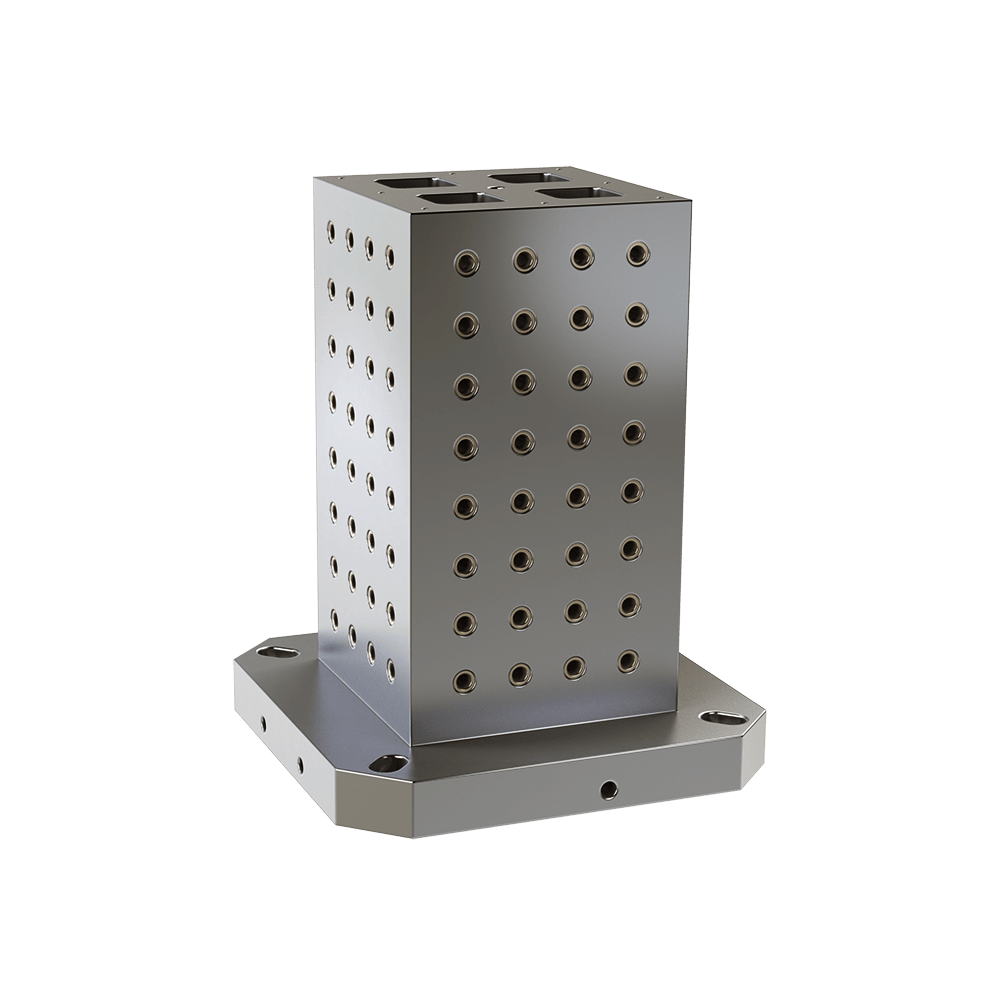

All modular tooling plates and blocks utilize multipurpose holes in a precise grid pattern for locating and fastening. The "Standard" system size shown here is suitable for the majority of machining applications. Each multipurpose hole on a Standard System MF40 tooling plate or block has a 1/2" ID bushing on top with a 1/2-13 threaded insert below it, to accept Locating Screws, Socket-Head Cap Screws, Clamping Studs, and many other threaded components. Multipurpose holes are located in a precise 2.0000" grid pattern, spaced within ±.0008 inches of true position. A typical 1/2-13 Clamp Strap exerts 2300 lbs clamping force.

Contact Customer Service
Contact Customer Service

Browse our Selection of Modular Tooling Plates & Blocks – 1/2" (Standard)

Rectangular Tooling Plates – Modular, Standard 1/2" (16" x 20")

Rectangular Tooling Plates – Modular, Standard 1/2" (20" x 24")

Platform Tooling Plates – Modular, Standard 1/2" (500mm)

Two-Sided Tooling Blocks – Modular, Standard 1/2" (400mm)

Four-Sided Tooling Blocks – Modular, Standard 1/2" (400mm)

Products Related to Modular Tooling Plates & Blocks – 1/2" (Standard)

CL5® Fixture Plates for Mounting on Quintus Riser

CL5® Subplates for Mounting on Machine Table
