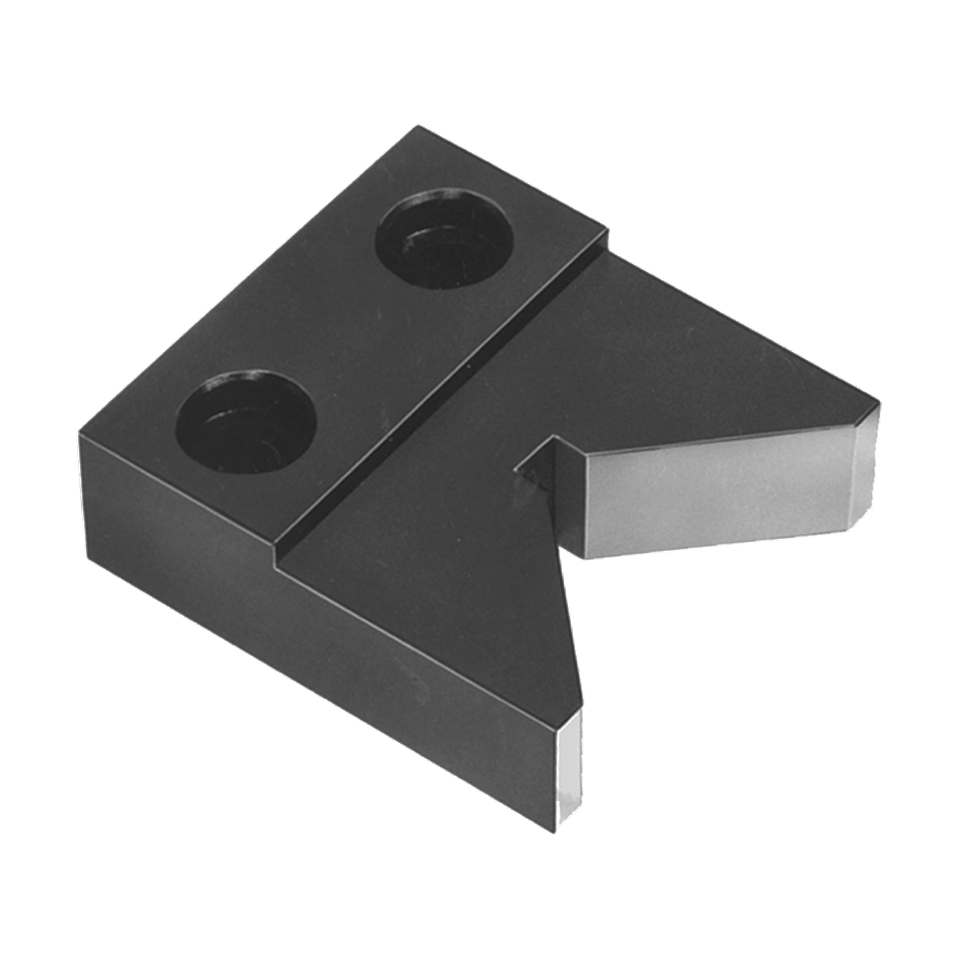

Vertical V Blocks (Standard)

Modular Fixturing,Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

Ideal for holding a cylindrical workpiece in an exact location with its axis perpendicular to the tooling surface. Locating surfaces are precision ground and accurately qualified in relation to the mounting holes. The Standard MF40 size is shown here.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Mounting

Fasten with two Locating Screws (order separately below).

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Body	1045 Steel	Heat Treated	Black Oxide
Bushing	High-Carbond Steel	Heat Treated	-

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Vertical V Blocks (Standard)

QUANTITY	PART NO.	WORKPIECE DIAMETER RANGE	A	B	C	E	MOUNTING SCREW SIZE
	CL-MF40-6101	9/16 to 3-1/8	2-1/2	1.3951	3-1/4	1/2-13	1/2-13

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Required Locating Screws

QUANTITY	PART NO.	FITS VERTICAL V BLOCK	QUANTITY REQUIRED
	CL-MF40-4302	CL-MF40-6101	2
