Torque Screw Jacks (Standard)

Modular Fixturing

Save to My Project

What is this?

Product Information

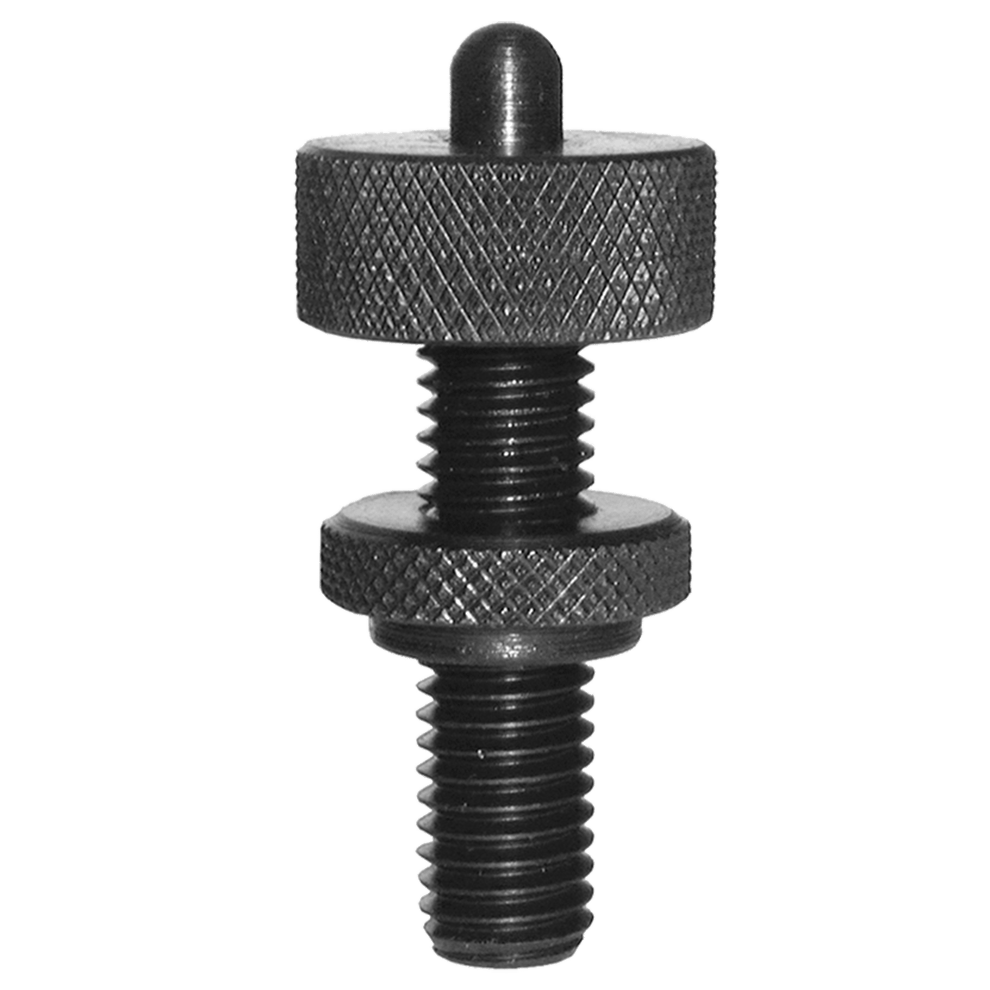

Screw jack with a spring-loaded clutch mechanism. Knurled head disengages when the indicated end force is reached. Prevents exerting excessive force on thinwall and other delicate workpieces. Furnished with Knurled Check Nut. Made in USA.

The Torque Screw Jacks shown here are for Standard System MF40 (1/2-13 thread). For our complete selection of Torque Screw Jacks, see Related Products below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Torque Screw Jacks provide controlled torque counterclockwise, and positive retraction clockwise.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body,Knob and Check Nut	12L15 Steel	-	Black Oxide	✔	✔
Spring	Spring Steel	-	-	✔	✔
Ball	440C Stainless Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Torque Screw Jacks (Standard)

QUANTITY	PART NO.	A	END FORCE (lbs)	B	C DIA	KNURLED CHECK NUT (FURNISHED)
	CL-6-TSJ	1/2-13	18 - 20	1/2	1-1/8	CL-1213-TSJN
