Shoulder Support Cylinders (Standard)

Work Supports & Rest Buttons,Modular Fixturing

Save to My Project

What is this?

Product Information

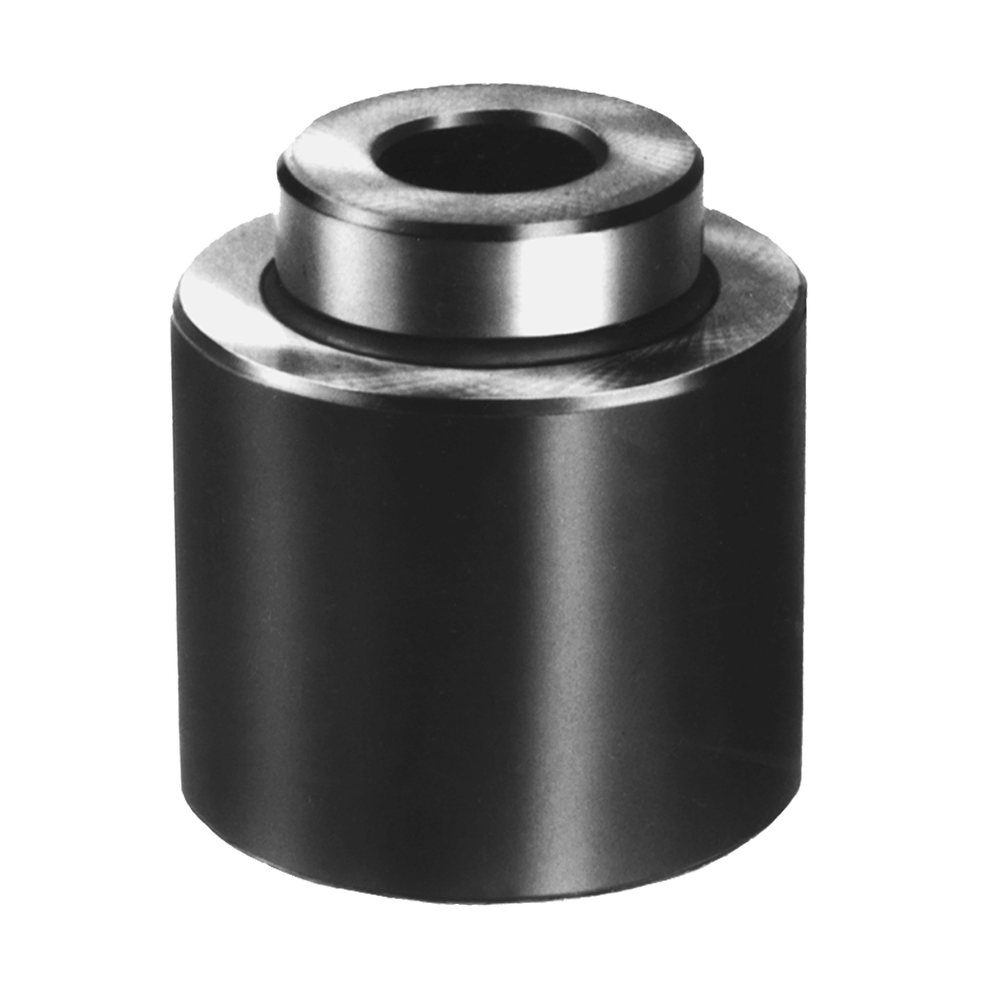

Shoulder Support Cylinders (Standard) Part # CL-MF40-4301 Carr Lane Mfg.®

Precision edge locator with a ground shoulder step for simultaneous horizontal and vertical location. The Standard MF40 size shown here is available in several support heights to match other types of modular-fixturing height locators.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Shoulder Support Cylinders can be used to locate from internal edges as well as external edges. In this example, three cylinders locate a large bored diameter (one cylinder mounted on a Multipurpose Extension Support).

Mounting

Fasten with a Locating Screw (order separately below).

To position between grid points, the Support Cylinder can be mounted on a Multipurpose Extension Support. For additional height, the Support Cylinder can be mounted on a Multipurpose Riser Block. See Related Products below.

Material

MATERIAL	HEAT TREAT	FINISH
1045 or 1144 Steel	Heat Treated	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Shoulder Support Cylinders (Standard)

Required Locating Screw

QUANTITY	PART NO.	FITS SHOULDER SUPPORT CYLINDER	QUANTITY REQUIRED
	CL-MF40-4301	CL-MF40-3201 CL-MF40-3202 CL-MF40-3205	1
	CL-MF40-4302	CL-MF40-3207	1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Shoulder Support Cylinders (Standard)

Locating Screws (Standard)

Multipurpose Extension Supports (Standard)

Multipurpose Riser Blocks (Standard)
