Screw Rest Pads (Standard)

Modular Fixturing

Save to My Project

What is this?

Product Information

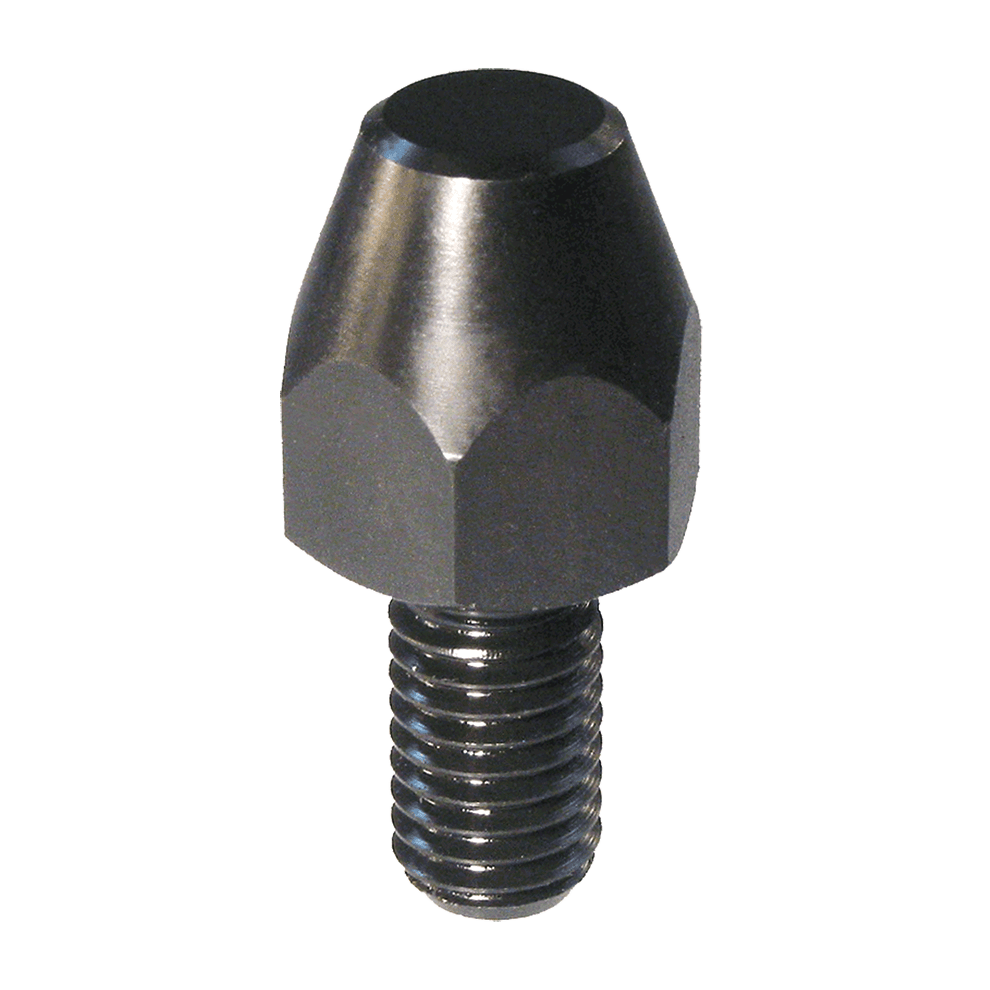

Screw Rest Pads (Standard) Part # CL-MF40-4801 Carr Lane Mfg.®

Precision height locator with a threaded shank for installation in a tapped hole. Cone shape provides a small contact area in combination with a large stable base. Screw Rest Pads are extremely useful as supports, side locator pads, and jig feet. Available in a wide range of heights, from 1/4" to 2" tall. Made in USA.

The Screw Rest Pads shown here are for Standard System MF40 (1/2-13 thread). For our complete selection of Screw Rest Pads, see Related Products below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

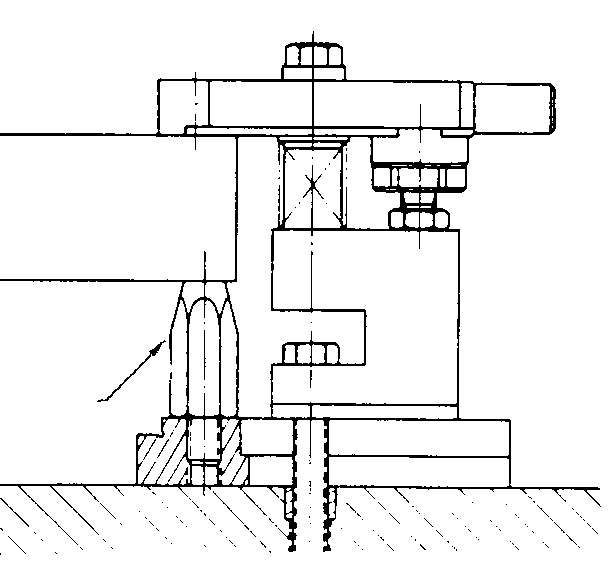

Application Information

Material

12L14 steel, carburized-hardened, black oxide finish. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

Screw Rest Pads (Standard)

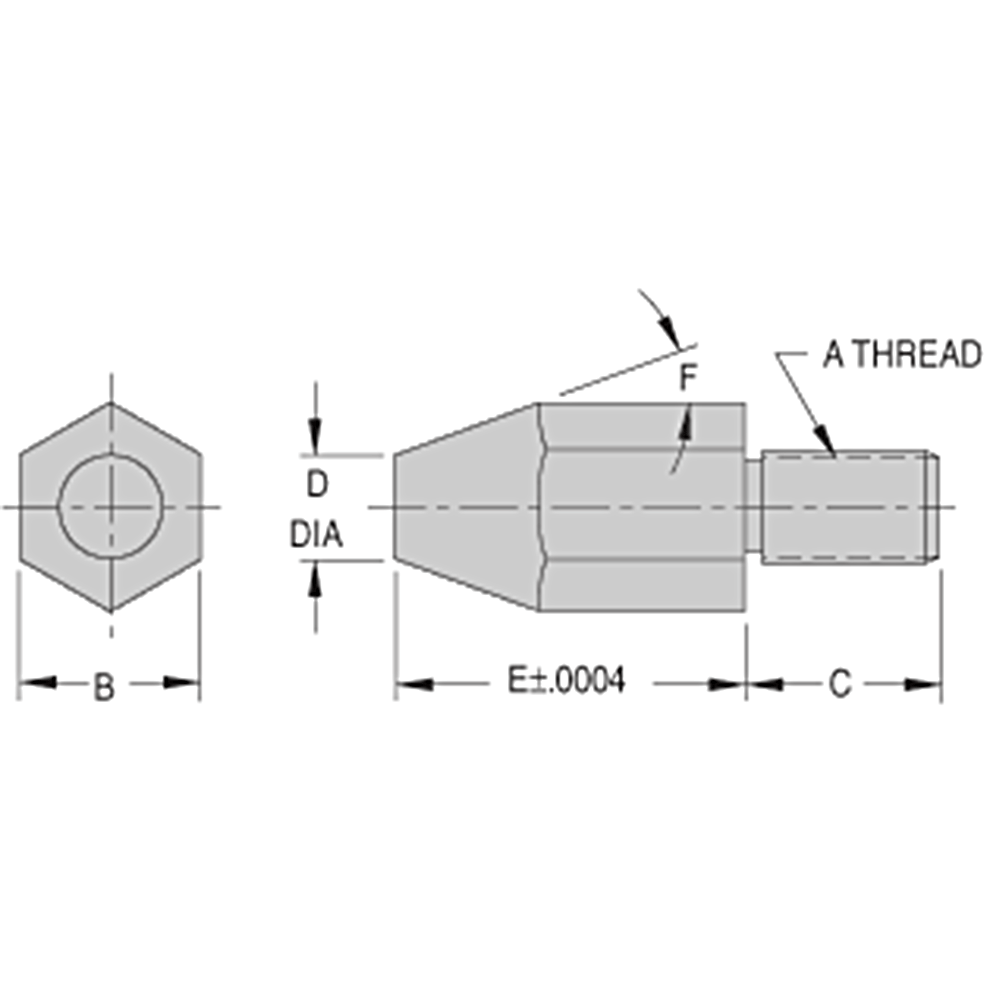

PART NO.	A	B	C	D DIA	E	F
CL-MF40-4801	1/2-13	7/8	15/16	1/2	.2500	75°
CL-MF40-4802	1/2-13	7/8	15/16	1/2	.3750	60°
CL-MF40-4803	1/2-13	7/8	15/16	1/2	.5000	35°
CL-MF40-4804	1/2-13	7/8	15/16	1/2	.7500	25°
CL-MF40-4805	1/2-13	7/8	15/16	1/2	1.0000	20°
CL-MF40-4806	1/2-13	7/8	15/16	1/2	1.2500	15°
CL-MF40-4807	1/2-13	7/8	15/16	1/2	1.5000	15°
CL-MF40-4808	1/2-13	7/8	15/16	1/2	2.0000	15°
