Heavy-Duty Screw Jacks (Standard)

Modular Fixturing

Save to My Project

What is this?

Product Information

Heavy-Duty Screw Jacks (Standard) Part # CL-MF10-3501 Carr Lane Mfg.®

Heavy-duty adjustable support that accepts any of three different tips (order separately below). Choice of three support heights. Made in USA.

The Heavy-Duty Screw Jacks shown here are for Standard System MF40 (1/2-13 mounting stud). For our complete selection of Heavy-Duty Screw Jacks, see Related Products below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Heavy-Duty Screw Jacks are available in three heights.

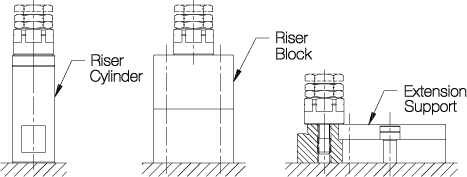

For additional height, see Riser Cylinders in Related Products below.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Jack Screw	1215 Steel	-	Black Oxide	✔	✔
Body	1144 Steel	-	Black Oxide	✔	✔
Stud	1144 Steel	Heat Treated	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Heavy-Duty Screw Jacks (Standard)

PART NO.	G THREADED MOUNTING STUD	A	B	C	D DIA	E	F
CL-MF40-3401	1/2-13	1-5/8	3/8	1-1/4	1-9/16	1-7/16	1-5/16
CL-MF40-3402	1/2-13	2	3/4	1-1/4	1-9/16	1-7/16	1-5/16
CL-MF40-3403	1/2-13	2-3/4	1-1/2	1-1/4	1-9/16	1-7/16	1-5/16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

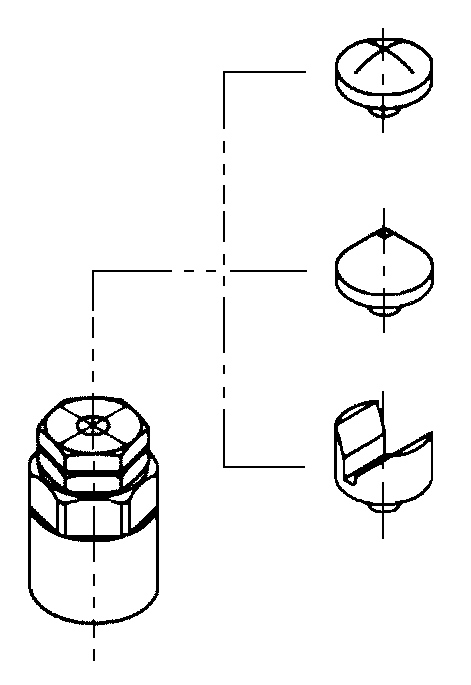

Optional Screw-Jack Tips

PART NO.	TYPE	FITS SCREW JACKS
CL-MF10-3501	RADIUS	ALL SIZES
CL-MF10-3502	CONICAL	ALL SIZES
CL-MF10-3503	V-SHAPED	ALL SIZES

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Heavy-Duty Screw Jacks (Standard)

Screw-Jack Tips (Conical)

Screw-Jack Tips (Radius)

Screw-jack Tips (V Shaped)

Riser Cylinders
