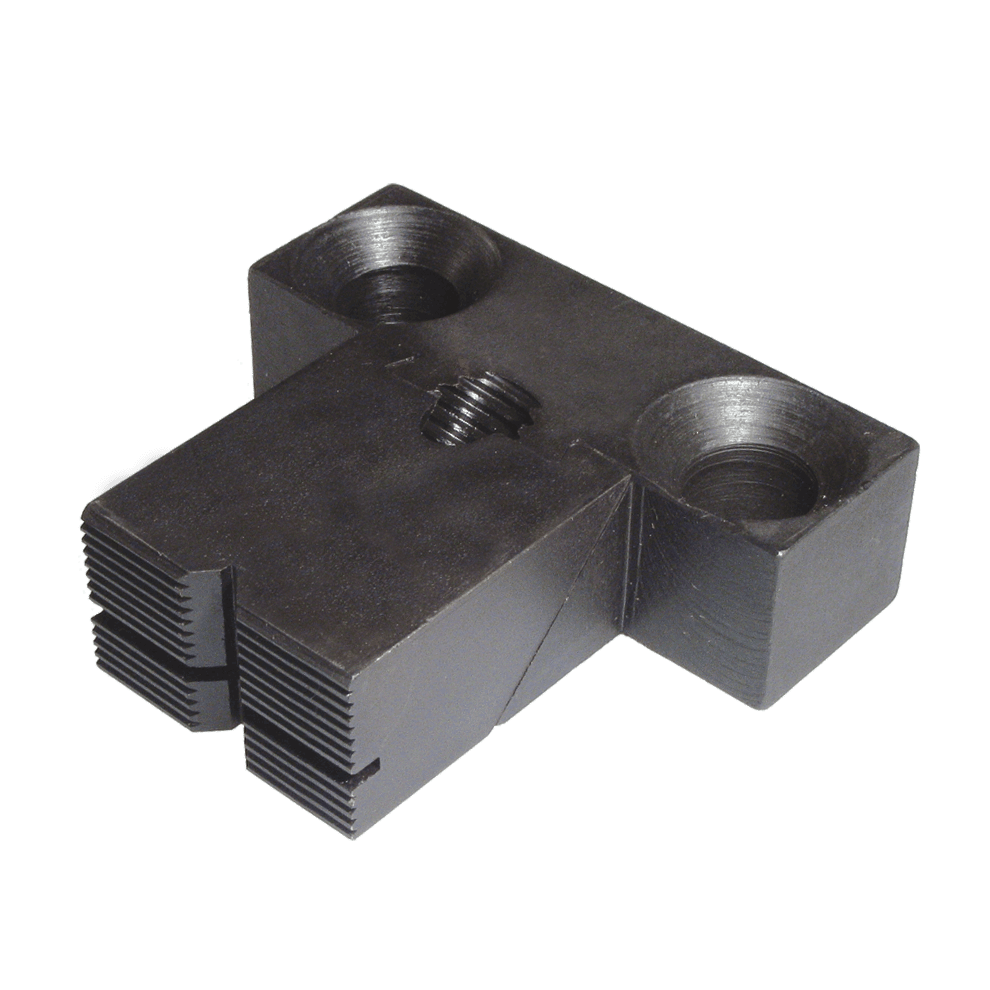

Serrated Fixed Edge Clamps (Standard) Part # CL-40-SFC Carr Lane Mfg.®

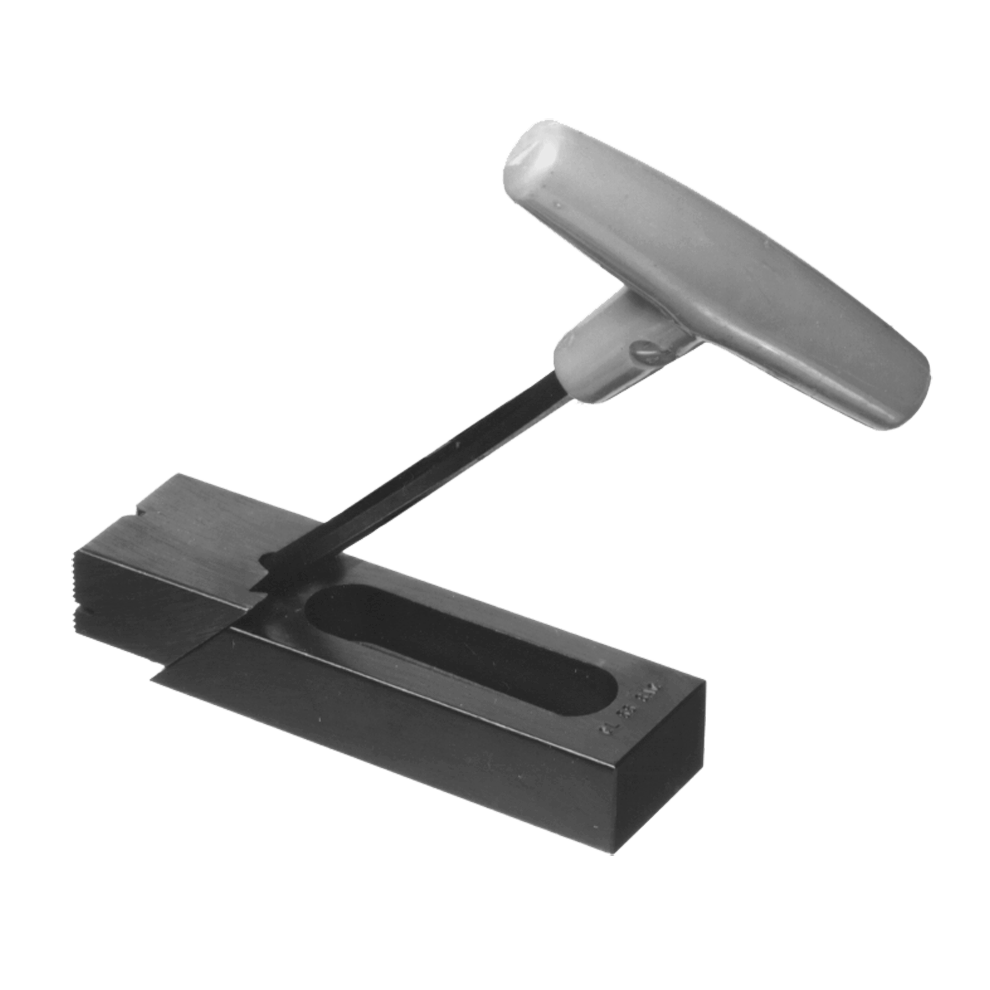

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.

The fixed version shown here can be used on some modular fixtures, but is usually best for permanent fixtures because it mounts in a fixed position rather than having a slot for adjustment. This allows the clamp to be more compact, and ensures correct position without adjustment. The Flat-Head Socket Screws used for mounting absolutely prevent slippage (order separately below). Made in USA.

The Serrated Adjustable Edge Clamps shown here are for Standard System MF40 (1/2-13 mounting screws). For our complete selection of Serrated Edge Clamps, see Related Products below.

Application Information

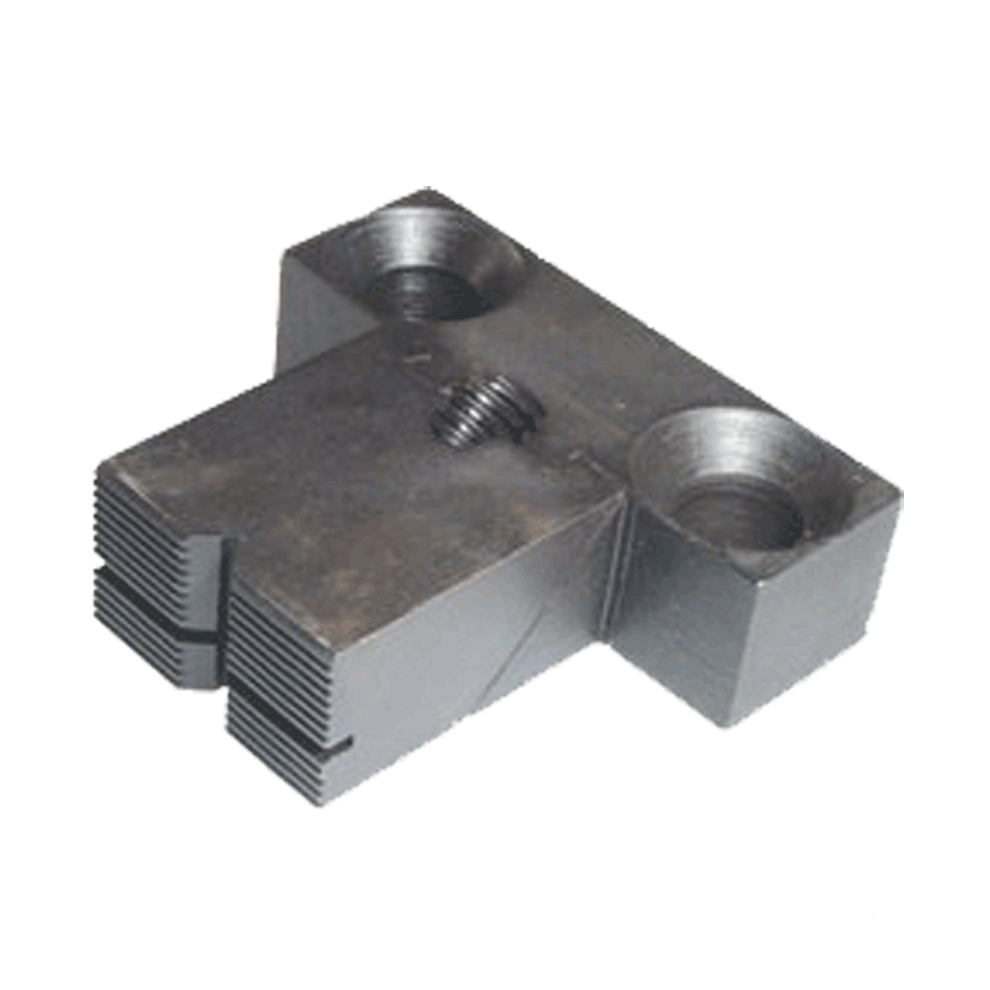

High-Nose Version

Diagram showcasing the application of Serrated Fixed Edge Clamps Standard

The high-nose version shown here is best for most applications – gripping high on the workpiece, close to the machining plane, to provide maximum clamping rigidity. This version includes a removable aluminum nose cover for clamping soft or machined parts without damage.

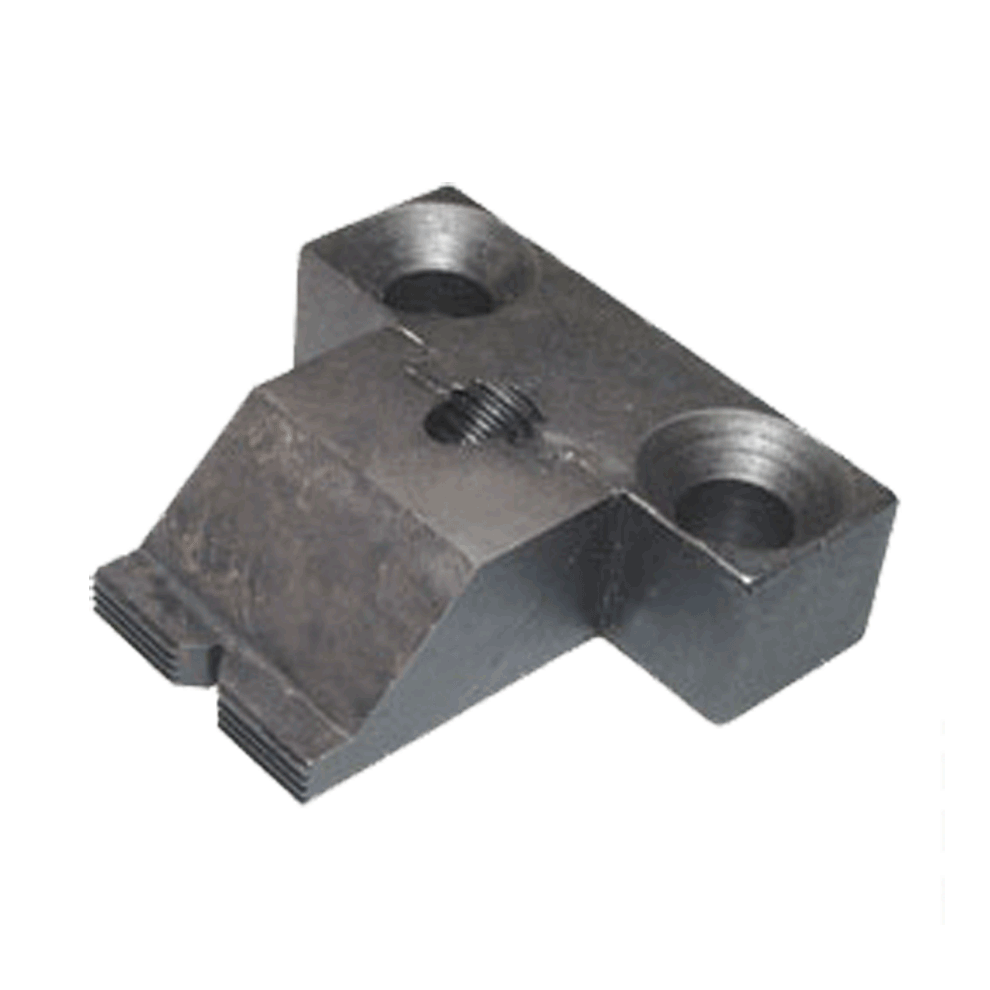

Low-Nose Version

The low-nose version shown here is ideal for thin parts and other applications where extra machining clearance is required.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body and Nose	1018 Steel	Carburized-Hardened	Black Oxide	✔	✔
Clamping Screw	4140 Steel	Heat Treated Rc 43-45	Black Oxide	✔	✔
