Forged Adjustable Clamps (Standard)

Modular Fixturing

Save to My Project

What is this?

Product Information

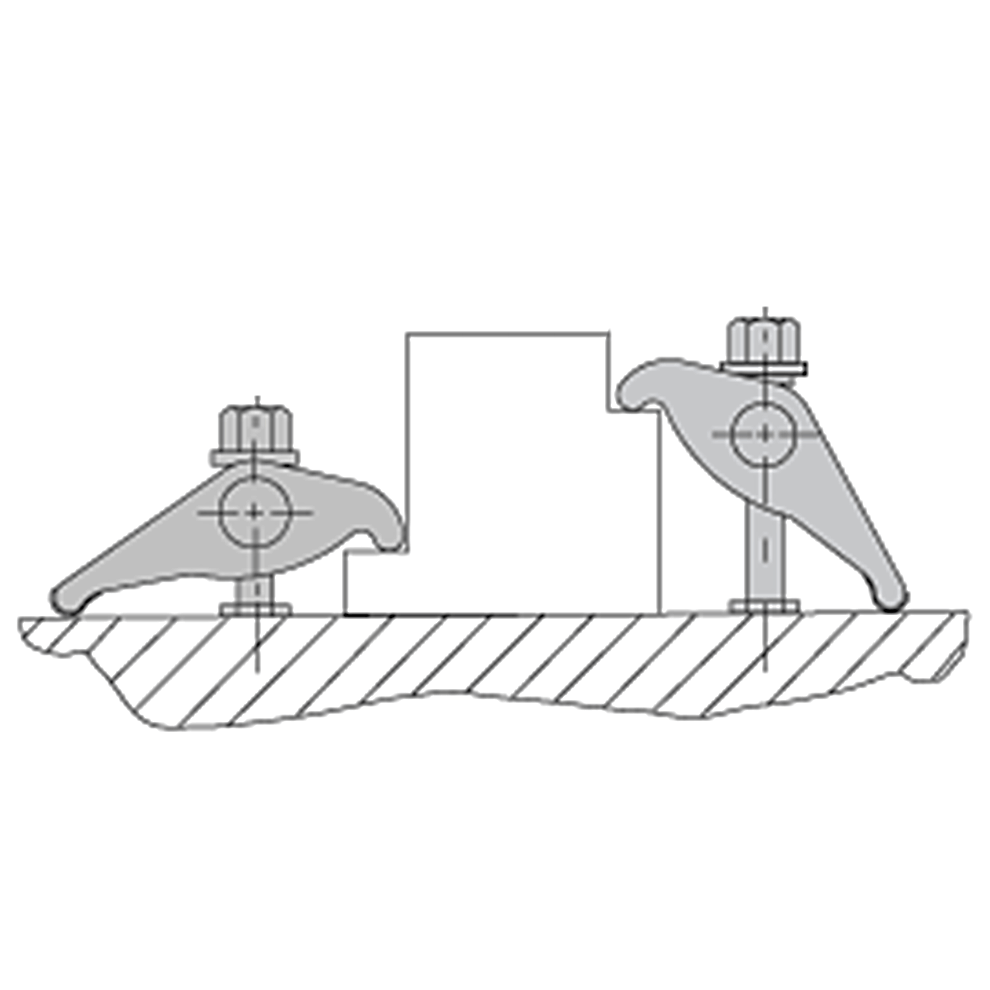

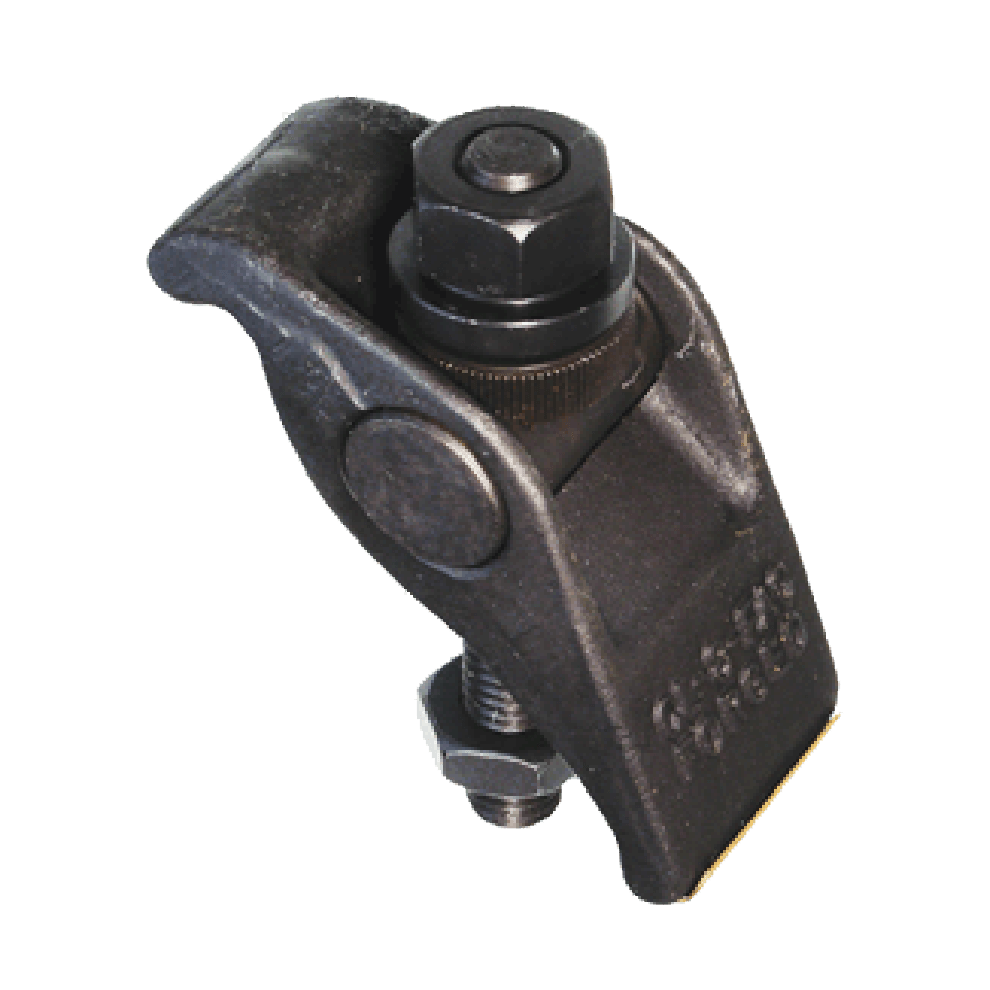

Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces. Turn clamp 90° in either direction for loading clearance. Removable brass heel protects tooling plate. Order Fully Threaded Stud, Flange Nut, and Jam Nut separately below.

The Forged Adjustable Clamps shown here are for Standard System MF40 (1/2-13 stud size). For our complete selection of Forged Adjustable Clamps, see Related Products below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Forged 1045 Steel	-	Black Oxide	✔	✔
Pivot	Mild Steel	-	Black Oxide	✔	✔
Removable Heel Pad	Brass	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Forged Adjustable Clamps (Standard)

Clamp Strap Only

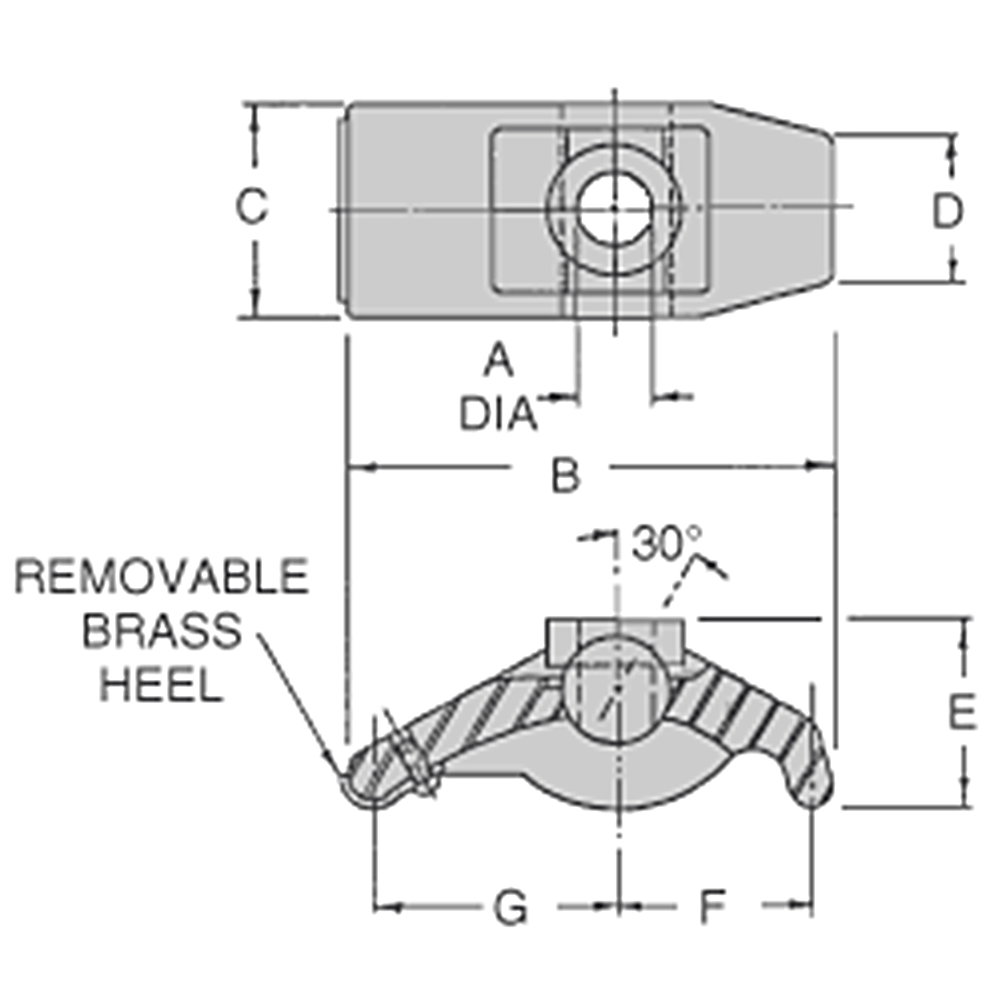

QUANTITY	PART NO.	STUD SIZE	CLAMPING HEIGHT	A	B	C	D	E	F	G
	CL-8-FAC	1/2-13	O to 2-1/16	9/16	4	1-5/8	1-1/8	1-7/16	1-7/16	2-5/16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

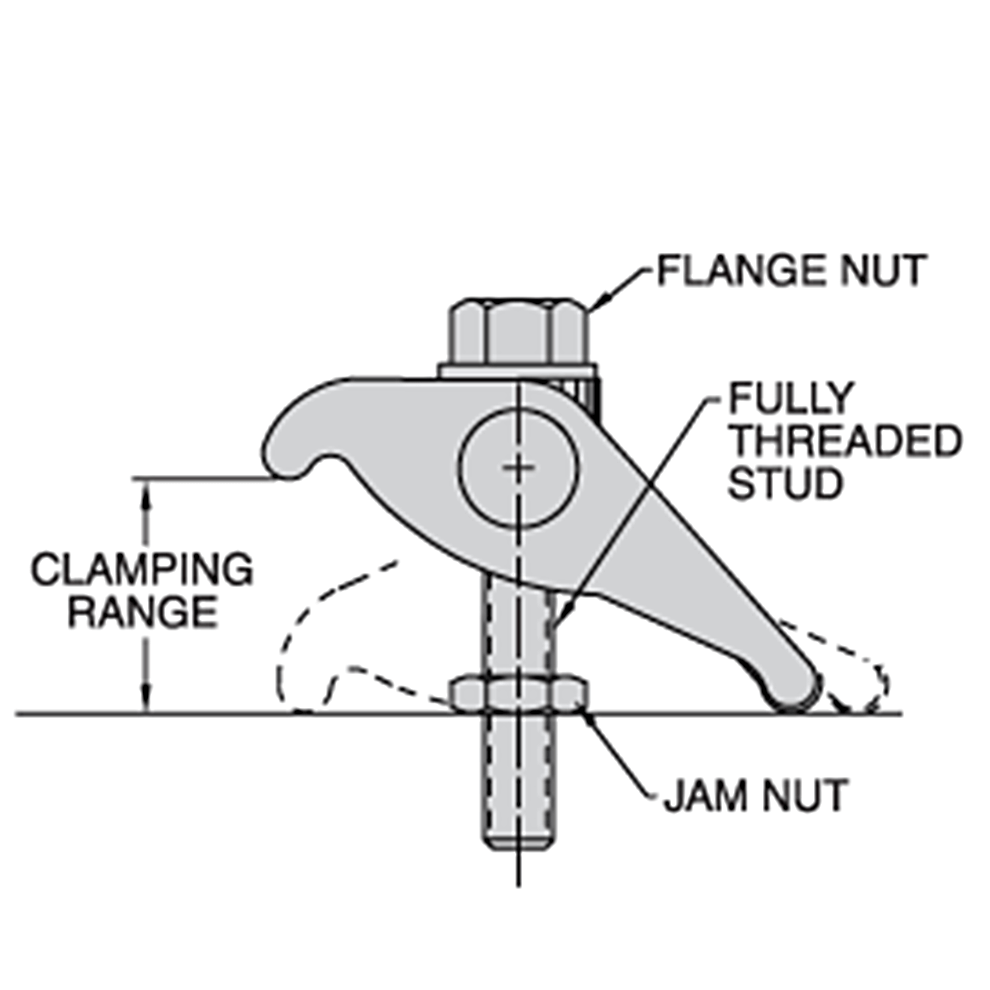

Required Components for Clamp Assembly

PART NO.	COMPONENT	QUANTITY REQUIRED
CL-1/2-13x4.00-FTS	Fully Threaded Stud	1
CL-3-FN	Flange Nut	1
CL-8-JN	Jam Nut	1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
