Liner Bushings & Threaded Inserts for Custom Tooling Plates (Heavy)

Modular Fixturing

Save to My Project

What is this?

Product Information

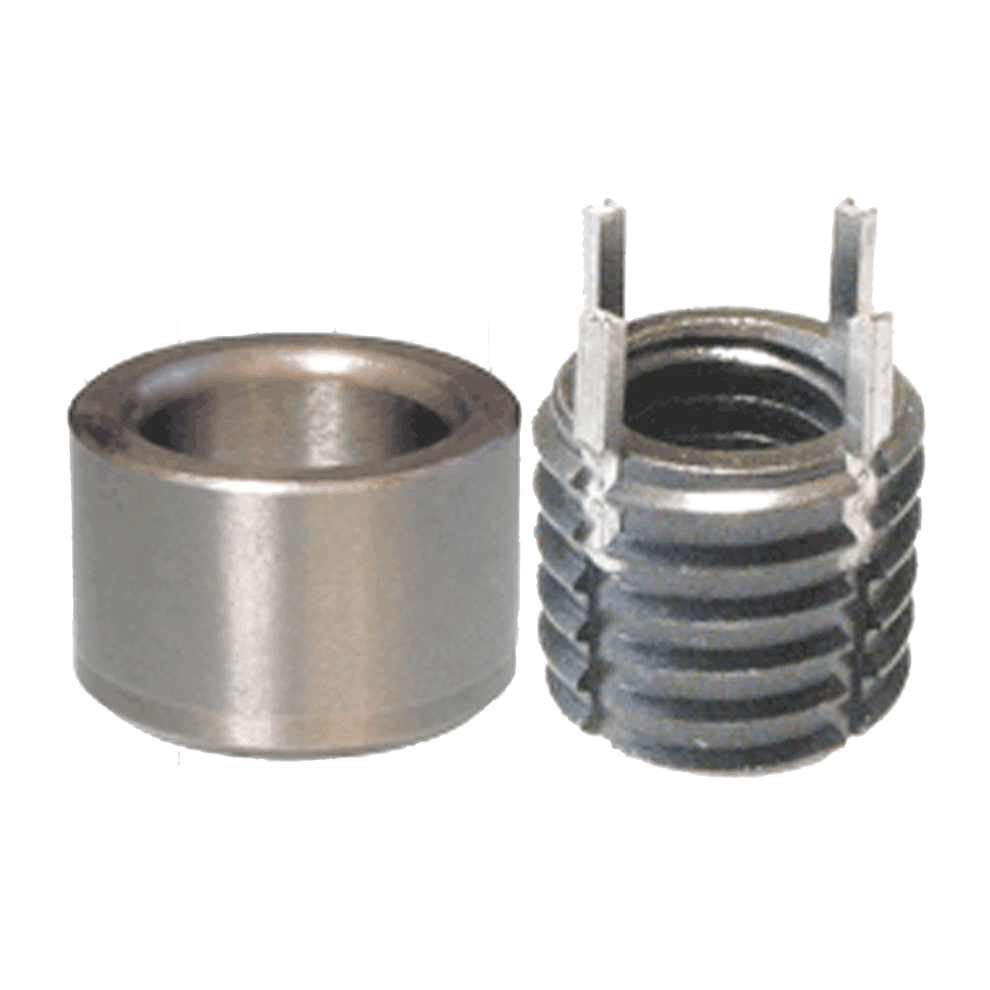

Liner Bushings & Threaded Inserts for Custom Tooling Plates (Heavy) Part # CL-5811-KS Carr Lane Mfg.®

These precision liner bushings and threaded inserts can be used to build your own custom modular tooling plates. When installed correctly, the liner bushing and threaded insert together will create a precise multipurpose hole (Heavy System MF50 shown here).

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

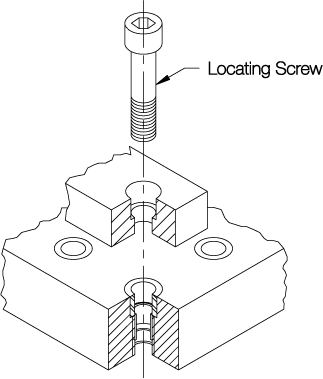

When used together, this liner bushing and threaded insert can create a precise multipurpose hole (Heavy System MF50).

Installation

Bushing-installation holes in the tooling plate must be jig bored. See dimensions below for proper counterbore depth. To make installation easier, the threaded insert's locking keys can be driven down by the bushing as it is pressed into the tooling plate.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Liner Bushings	52100 or 1144 Stressproff Steel	heat treated to achieve Rc 60-65 ID hardness	-	✔	✔
Key Inserts	1215 Steel	-	black oxide finish, with 302 stainless steel keys	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Liner Bushings & Threaded Inserts for Custom Tooling Plates (Heavy)

Precision Bushing

QUANTITY	PART NO.	ID	OD	LENGTH
	CL-MF50-0101-02	.6256/.6263	.9060/.9056	.625

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Key Insert

QUANTITY	PART NO.	ID THREAD	OD THREAD	LENGTH
	CL-5811-KS	5/8-11	7/8-14	7/8

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
