Platform Tooling Plates – Modular, Heavy 5/8" (630mm)

Modular Fixturing

Product Information

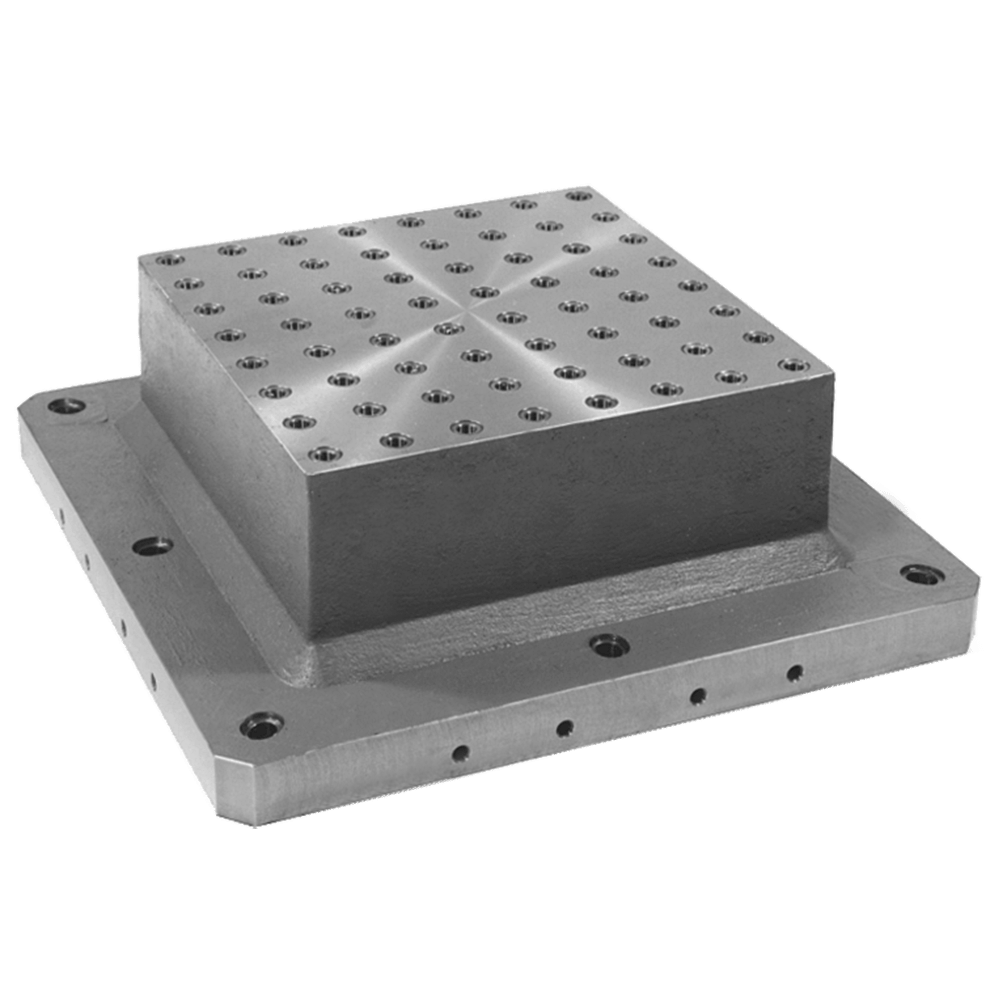

Platform Tooling Plates – Modular, Heavy 5/8"" (630mm) Part # CL-MF50-0833 Carr Lane Mfg.®

Raised tooling plate for horizontal machining centers, incorporating our Heavy (5/8-11) modular system. Allows tool access to low workpieces that would normally be below minimum spindle height on horizontal machining centers. Cast iron material provides superior accuracy, dimensional stability, and vibration dampening. Finish machined to tight tolerances, with a grid of multipurpose holes spaced at 2.0000" within .0008" of true position. Universal mounting holes fit almost any inch or metric slot spacing. The tooling plates shown here fit 630mm square pallets.

Application Information

Platform Tooling Plates allow tool access to workpieces that would normally be below minimum spindle height.

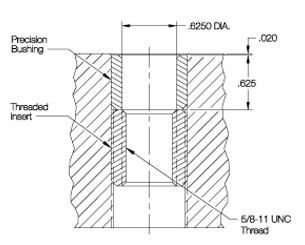

Multipurpose Holes (Heavy)

Diagram showcasing the application of Platform Tooling Plates Modular Heavy 58

Each multipurpose hole on a Heavy System MF50 tooling plate or block has a 5/8" ID bushing on top with a 5/8-11 threaded insert below it. Multipurpose holes are located in a precise 2.0000" grid pattern, spaced within ±.0008 inches of true position. Locating Screws, with a precision ground shoulder, are used to locate and fasten at the same time.

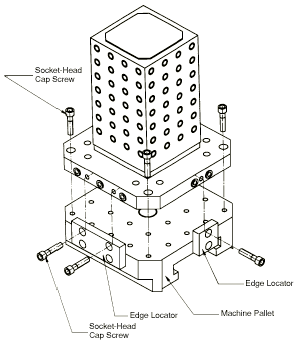

Mounting

JIS mounting only (locating from two reference edges). Mounting holes fit almost any USA or metric slot spacing.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Gray Cast Iron	-	ASTM class 45	✔	✔
Bushings	High-Carbon Steel	heat treated Rc 40-45	-	✔	✔
Threaded Inserts	Steel	-	-	✔	✔
Protection Plugs	Plastic	-	-	✔	✔
