Modular Tooling Plates & Blocks – 5/8" (Heavy)

Modular Fixturing

Save to My Project

What is this?

Product Information

All modular tooling plates and blocks utilize multipurpose holes in a precise grid pattern for locating and fastening. The "Heavy" system size shown here is suitable for machining of large parts on larger machining centers. Each multipurpose hole on a Heavy System MF50 tooling plate or block has a 5/8" ID bushing on top with a 5/8-11 threaded insert below it, to accept Locating Screws, Socket-Head Cap Screws, Clamping Studs, and many other threaded components. Multipurpose holes are located in a precise 2.0000" grid pattern, spaced within ±.0008 inches of true position. A typical 5/8-11 Clamp Strap exerts 3700 lbs clamping force.

Contact Customer Service
Contact Customer Service

Browse our Selection of Modular Tooling Plates & Blocks – 5/8" (Heavy)

Square Pallet Tooling Plates – Modular, Heavy 5/8" (400mm)

Square Pallet Tooling Plates – Modular, Heavy 5/8" (500mm)

Platform Tooling Plates – Modular, Heavy 5/8" (630mm)

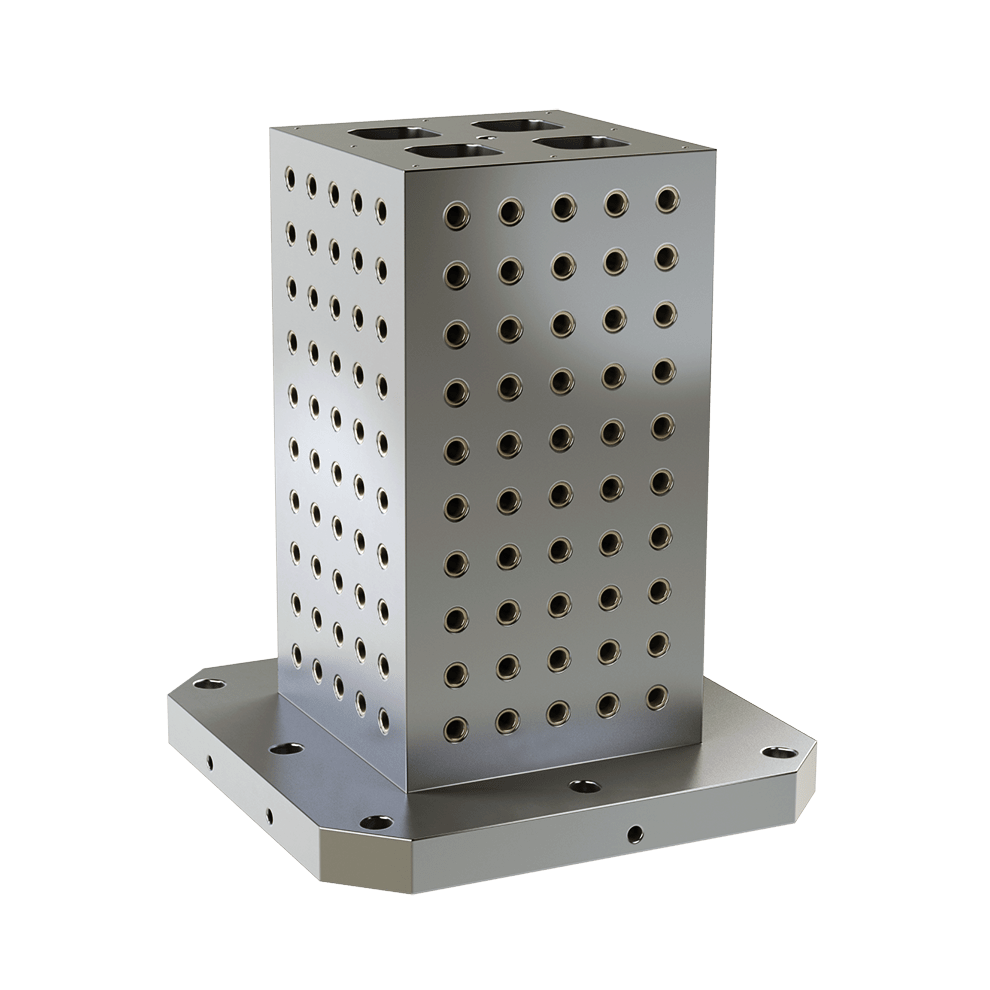

Two-Sided Tooling Blocks – Modular, Heavy 5/8" (500mm)

Four-Sided Tooling Blocks – Modular, Heavy 5/8" (500mm)
