Screw Rest Pads (Heavy)

Modular Fixturing

Save to My Project

What is this?

Product Information

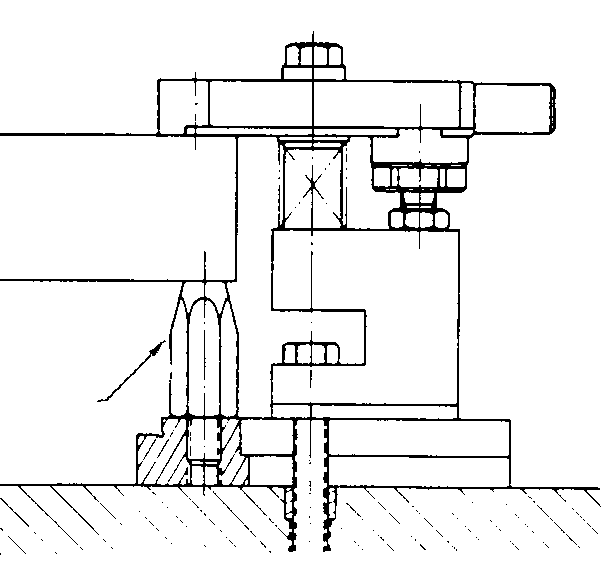

Precision height locator with a threaded shank for installation in a tapped hole. Cone shape provides a small contact area in combination with a large stable base. Screw Rest Pads are extremely useful as supports, side locator pads, and jig feet. Available in a wide range of heights, from 1/4" to 2" tall. Made in USA.

The Screw Rest Pads shown here are for Standard System MF50 (5/8-11 thread). For our complete selection of Screw Rest Pads, see Related Products below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1215 Steel	Carburized Hardened	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Screw Rest Pads (Heavy)

PART NO.	A	B	C	D DIA	E	F
CL-MF50-4801	5/8-11	1	1-1/4	5/8	.2500	75°
CL-MF50-4802	5/8-11	1	1-1/4	5/8	.3750	60°
CL-MF50-4803	5/8-11	1	1-1/4	5/8	.5000	35°
CL-MF50-4804	5/8-11	1	1-1/4	5/8	.7500	25°
CL-MF50-4805	5/8-11	1	1-1/4	5/8	1.0000	20°
CL-MF50-4806	5/8-11	1	1-1/4	5/8	1.2500	15°
CL-MF50-4807	5/8-11	1	1-1/4	5/8	1.5000	15°
CL-MF50-4808	5/8-11	1	1-1/4	5/8	2.0000	15°

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Screw Rest Pads (Heavy)
