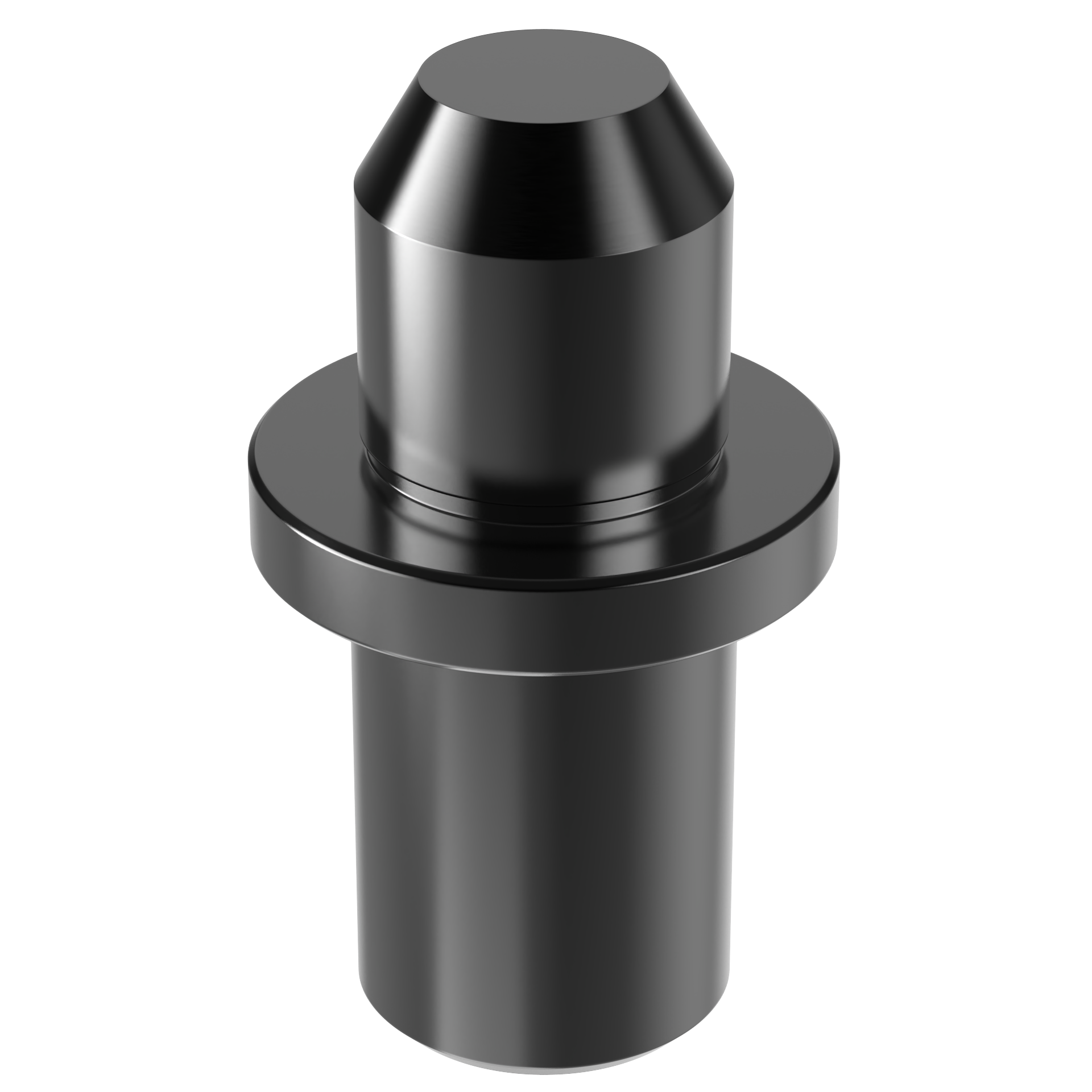

Round Locating Pins (Press-Fit Type) Part # CL-155-RPT Carr Lane Mfg.®

These precision locating pins are especially useful for workpiece location because of the wide selection of head diameters available to fit machined holes in the part. One Round Locating Pin and one Diamond Locating Pin are often used together to locate from two holes without binding, because the Diamond Locating Pin is relieved to locate in only 1 axis. The type shown here, with a press-fit shank, is designed for permanent installation. Head and shank diameters are concentric to within .0005" TIR. Made in USA.

Round & Diamond Locating Pins are available in four standard shank diameters, each with a range of standard head diameters in 1/32" increments (2mm increments in metric), each available in either standard or undersize fit. In addition to standard diameters, these pins are also quickly made to order in any special head diameter from .1150" to 1.0400" in .0001" increments. The Part Configurator link at the top of this page can be used for Round Locating Pins with a special head diameter.

Application Information

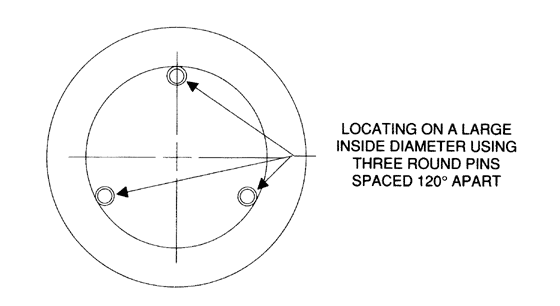

A series of locating pins can take the place of a locating plug. The pins are positioned at three points, 120 degrees apart, around the internal diameter of the hole. This arrangement is usually much more economical than making a custom plug.

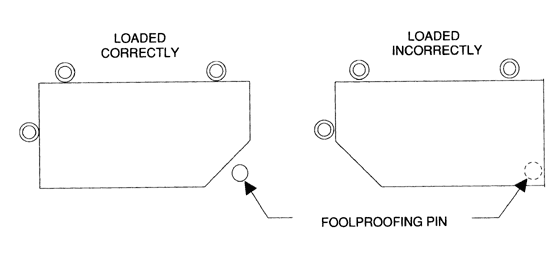

Foolproofing prevents improper loading of a workpiece. The problem is most prevalent with parts that are symmetrical or located concentrically. The simplest way to foolproof a workholder is to position one or two pins in a location that ensures correct orientation.

Locating Principles

Diagram showcasing the application of Round Locating Pins Press Fit Type

When a round pin and diamond pin are used together, the round pin is the primary, 2-axis locator, while the diamond pin is the secondary, 1-axis locator. Diamond pins are relieved to locate only radially around the round pin, avoiding redundant location. This prevents binding, yet still maintains high accuracy.

Specials

Diagram showcasing the application of Round Locating Pins Press Fit Type

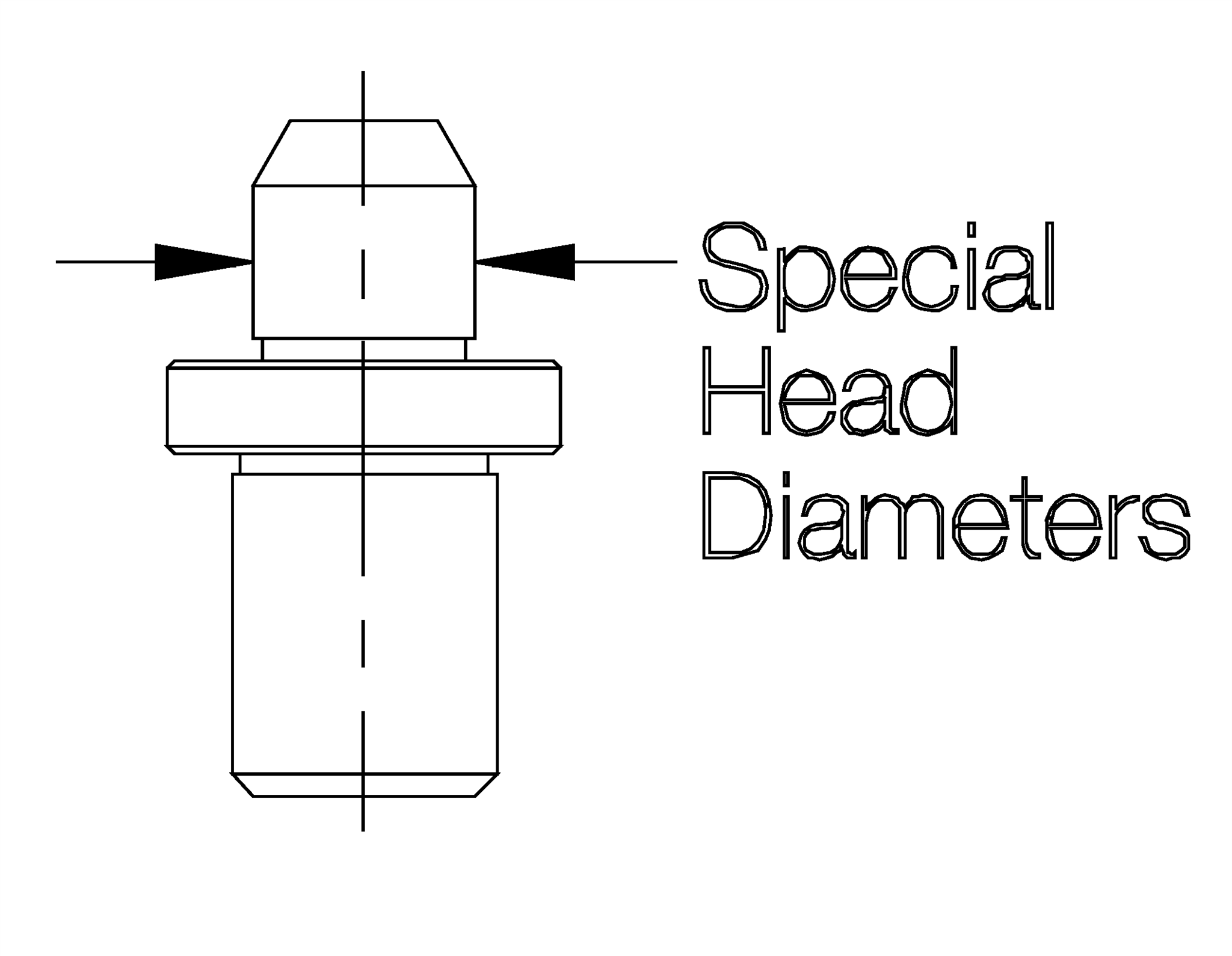

Pins with a special head diameter (A dimension) are quickly made to order in any of the four standard shank diameters.

5 5/16" shank

8 1/2" shank

12 3/4" shank

16 1" shank

Head diameters are limited to the following ranges:

5 .1150-.3180

8 .2780-.5040

12 .4640-.7540

16 .7140-1.0040

Example:

For a Round Locating Pin with a 1/2" shank and A = .4000", specify part number as CL-8-RPT-.4000.

Specials for Configuration

Click Here

To launch our configurator

To email us with any questions

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Steel	Heat Treated Rc 48-55	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Round Locating Pins (Press-Fit Type)

Inch

QUANTITY	PART NO.	B SHANK DIA	A DIA NOMINAL	A DIA ACTUAL	C	D	E DIA	F
	CL-123-RPT	5/16	1/8	.1235	1-3/16	7/16	5/8	3/32
	CL-124-RPT	5/16	1/8	.1245	1-3/16	7/16	5/8	3/32
	CL-154-RPT	5/16	5/32	.1548	1-3/16	7/16	5/8	3/32
	CL-155-RPT	5/16	5/32	.1558	1-3/16	7/16	5/8	3/32
	CL-186-RPT	5/16	3/16	.1860	1-3/16	7/16	5/8	3/32
	CL-187-RPT	5/16	3/16	.1870	1-3/16	7/16	5/8	3/32
	CL-217-RPT	5/16	7/32	.2173	1-3/16	7/16	5/8	3/32
	CL-218-RPT	5/16	7/32	.2183	1-3/16	7/16	5/8	3/32
	CL-248-RPT	5/16	1/4	.2485	1-3/16	7/16	5/8	3/32
	CL-249-RPT	5/16	1/4	.2495	1-3/16	7/16	5/8	3/32
	CL-279-RPT	5/16	9/32	.2798	1-3/16	7/16	5/8	3/32
	CL-280-RPT	5/16	9/32	.2808	1-3/16	7/16	5/8	3/32
	CL-311-RPT	5/16	5/16	.3110	1-3/16	7/16	5/8	3/32
	CL-312-RPT	5/16	5/16	.3120	1-3/16	7/16	5/8	3/32
	CL-310-RPT	1/2	5/16	.3105	1-1/2	1/2	7/8	1/8
	CL-3115-RPT	1/2	5/16	.3115	1-1/2	1/2	7/8	1/8
	CL-341-RPT	1/2	11/32	.3418	1-1/2	1/2	7/8	1/8
	CL-342-RPT	1/2	11/32	.3428	1-1/2	1/2	7/8	1/8
	CL-373-RPT	1/2	3/8	.3730	1-1/2	1/2	7/8	1/8
	CL-374-RPT	1/2	3/8	.3740	1-1/2	1/2	7/8	1/8
	CL-404-RPT	1/2	13/32	.4043	1-1/2	1/2	7/8	1/8
	CL-405-RPT	1/2	13/32	.4053	1-1/2	1/2	7/8	1/8
	CL-435-RPT	1/2	7/16	.4355	1-1/2	1/2	7/8	1/8
	CL-436-RPT	1/2	7/16	.4365	1-1/2	1/2	7/8	1/8
	CL-466-RPT	1/2	15/32	.4668	1-1/2	1/2	7/8	1/8
	CL-467-RPT	1/2	15/32	.4678	1-1/2	1/2	7/8	1/8
	CL-498-RPT	1/2	1/2	.4980	1-1/2	1/2	7/8	1/8
	CL-499-RPT	1/2	1/2	.4990	1-1/2	1/2	7/8	1/8
	CL-4980-RPT	3/4	1/2	.4980	1-15/16	11/16	1-1/8	3/16
	CL-4990-RPT	3/4	1/2	.4990	1-15/16	11/16	1-1/8	3/16
	CL-529-RPT	3/4	17/32	.5293	1-15/16	11/16	1-1/8	3/16
	CL-530-RPT	3/4	17/32	.5303	1-15/16	11/16	1-1/8	3/16
	CL-560-RPT	3/4	9/16	.5605	1-15/16	11/16	1-1/8	3/16
	CL-561-RPT	3/4	9/16	.5615	1-15/16	11/16	1-1/8	3/16
	CL-591-RPT	3/4	19/32	.5918	1-15/16	11/16	1-1/8	3/16
	CL-592-RPT	3/4	19/32	.5928	1-15/16	11/16	1-1/8	3/16
	CL-623-RPT	3/4	5/8	.6230	1-15/16	11/16	1-1/8	3/16
	CL-624-RPT	3/4	5/8	.6240	1-15/16	11/16	1-1/8	3/16
	CL-654-RPT	3/4	21/32	.6543	1-15/16	11/16	1-1/8	3/16
	CL-655-RPT	3/4	21/32	.6553	1-15/16	11/16	1-1/8	3/16
	CL-685-RPT	3/4	11/16	.6855	1-15/16	11/16	1-1/8	3/16
	CL-686-RPT	3/4	11/16	.6865	1-15/16	11/16	1-1/8	3/16
	CL-716-RPT	3/4	23/32	.7168	1-15/16	11/16	1-1/8	3/16
	CL-717-RPT	3/4	23/32	.7178	1-15/16	11/16	1-1/8	3/16
	CL-748-RPT	3/4	3/4	.7480	1-15/16	11/16	1-1/8	3/16
	CL-749-RPT	3/4	3/4	.7490	1-15/16	11/16	1-1/8	3/16
	CL-7480-RPT	1	3/4	.7480	2-5/8	1	1-1/2	9/32
	CL-7490-RPT	1	3/4	.7490	2-5/8	1	1-1/2	9/32
	CL-779-RPT	1	25/32	.7793	2-5/8	1	1-1/2	9/32
	CL-780-RPT	1	25/32	.7803	2-5/8	1	1-1/2	9/32
	CL-810-RPT	1	13/16	.8105	2-5/8	1	1-1/2	9/32
	CL-811-RPT	1	13/16	.8115	2-5/8	1	1-1/2	9/32
	CL-841-RPT	1	27/32	.8418	2-5/8	1	1-1/2	9/32
	CL-842-RPT	1	27/32	.8428	2-5/8	1	1-1/2	9/32
	CL-873-RPT	1	7/8	.8730	2-5/8	1	1-1/2	9/32
	CL-874-RPT	1	7/8	.8740	2-5/8	1	1-1/2	9/32
	CL-904-RPT	1	29/32	.9043	2-5/8	1	1-1/2	9/32
	CL-905-RPT	1	29/32	.9053	2-5/8	1	1-1/2	9/32
	CL-935-RPT	1	15/16	.9355	2-5/8	1	1-1/2	9/32
	CL-936-RPT	1	15/16	.9365	2-5/8	1	1-1/2	9/32
	CL-966-RPT	1	31/32	.9668	2-5/8	1	1-1/2	9/32
	CL-967-RPT	1	31/32	.9678	2-5/8	1	1-1/2	9/32
	CL-998-RPT	1	1	.9980	2-5/8	1	1-1/2	9/32
	CL-999-RPT	1	1	.9990	2-5/8	1	1-1/2	9/32

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	B SHANK DIA	A DIA NOMINAL (mm)	A DIA ACTUAL (mm)	C (mm)	D (mm)	E DIA (mm)	F (mm)
	CL-5-RPT-.2347	5/16"	6	5.961	30	11	16	2.4
	CL-5-RPT-.2357	5/16"	6	5.987	30	11	16	2.4
	CL-8-RPT-.3130	1/2"	8	7.950	38	12.5	22	3.2
	CL-8-RPT-.3140	1/2"	8	7.976	38	12.5	22	3.2
	CL-8-RPT-.3917	1/2"	10	9.949	38	12.5	22	3.2
	CL-8-RPT-.3927	1/2"	10	9.974	38	12.5	22	3.2
	CL-8-RPT-.4704	1/2"	12	11.948	38	12.5	22	3.2
	CL-8-RPT-.4714	1/2"	12	11.974	38	12.5	22	3.2
	CL-12-RPT-.5492	3/4"	14	13.950	49	17.5	28.5	4.8
	CL-12-RPT-.5502	3/4"	14	13.975	49	17.5	28.5	4.8
	CL-12-RPT-.6279	3/4"	16	15.949	49	17.5	28.5	4.8
	CL-12-RPT-.6289	3/4"	16	15.974	49	17.5	28.5	4.8
	CL-12-RPT-.7067	3/4"	18	17.950	49	17.5	28.5	4.8
	CL-12-RPT-.7077	3/4"	18	17.976	49	17.5	28.5	4.8
	CL-16-RPT-.7854	1"	20	19.949	66.5	25.5	38	7
	CL-16-RPT-.7864	1"	20	19.974	66.5	25.5	38	7
