Bushings for Bullet-Nose Pins

Locating Pins

Save to My Project

What is this?

Product Information

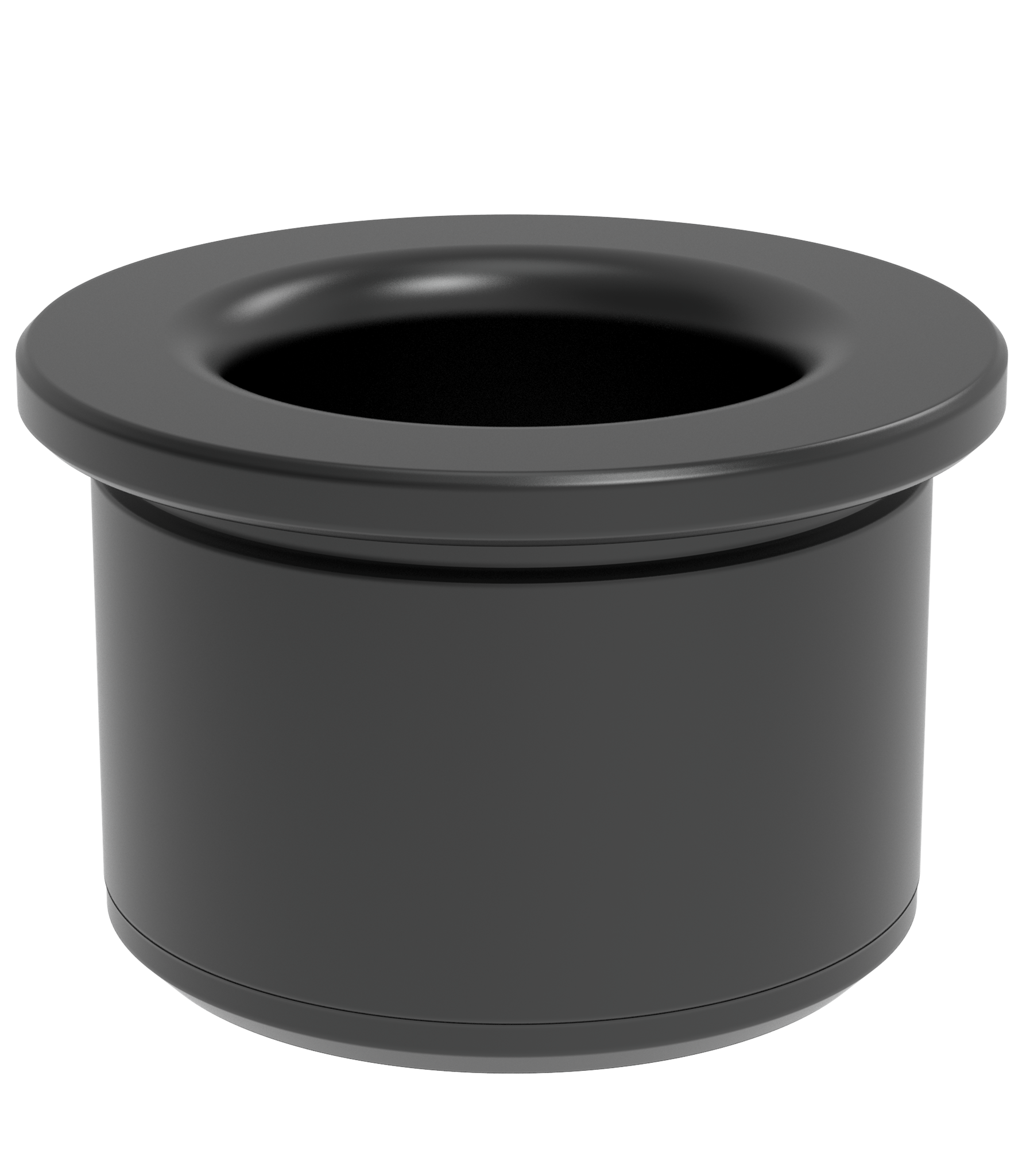

Bushings for Bullet-Nose Pins Part # CL-B-10000 Carr Lane Mfg.®

Precision bushing used with a Bullet-Nose Round Pin or Bullet-Nose Diamond Pin to align two pieces of a fixture. The pin's shank diameter and the bushing's OD are exactly the same size, to allow boring the installation hole in both fixture pieces at the same time for greater accuracy. The bushing's ID and OD are concentric to within .0003" TIR. Available for pin diameters 1/4, 5/16, 3/8, 1/2, 3/4, and 1" (6, 8, 10, and 12mm in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Steel	Heat Treated Rc 50-55	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Bushings for Bullet-Nose Pins

Inch

PART NO.	A DIA	B DIA NOMINAL	B DIA ACTUAL	C DIA NOMINAL	C DIA ACTUAL	D	E
CL-B-8000	9/16	1/4	.2501	13/32	.4075	7/16	1/16
CL-B-9000	5/8	5/16	.3126	1/2	.5014	7/16	1/16
CL-B-10000	3/4	3/8	.3751	5/8	.6265	7/16	1/16
CL-B-11000	7/8	1/2	.5001	3/4	.7515	1/2	1/16
CL-B-12000	1-1/8	3/4	.7502	1	1.0015	1/2	1/8
CL-B-13000	1-1/2	1	1.0002	1-3/8	1.3768	11/16	1/8

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A DIA (mm)	B DIA NOMINAL (mm)	B DIA ACTUAL (mm)	C DIA NOMINAL (mm)	C DIA ACTUAL (mm)	D (mm)	E (mm)
CLM-6-B	13	6	6.002	10	10.033	8	2
CLM-8-B	15	8	8.002	12	12.035	8	2
CLM-10-B	18	10	10.002	15	15.038	10	2
CLM-12-B	22	12	12.002	18	18.038	10	2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Download CAD Model
