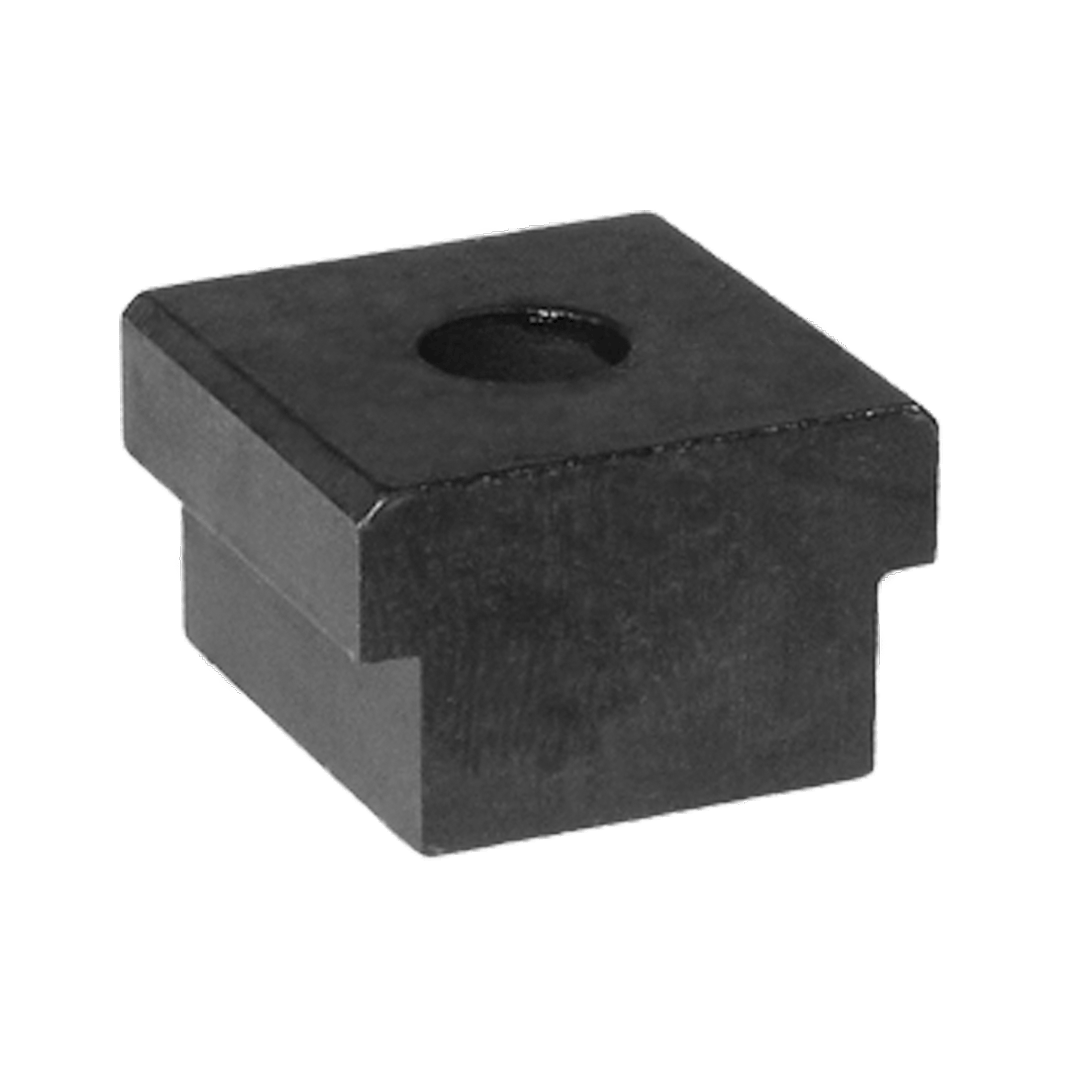

Step Fixture Keys Part # CL-10-SFK-18 Carr Lane Mfg.®

Adapts a key-slotted fixture or vise to machine tables with a different slot size. Keys are available for machine-table slots either larger or smaller than the fixture slot. Top and bottom of key are centered within .0005" of each other. Fasten with a socket-head cap screw (not furnished). Available for fixture-slot sizes from 1/2 to 13/16" (20mm in metric), and table-slot sizes from 7/16 to 13/16" (12 to 20mm in metric). Made in USA.

Application Information

Key to fit a larger machine-table slot. (left)

Key to fit a smaller machine-table slot. (right)

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Mild Steel	Carburized Hardened	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Step Fixture Keys

Inch

QUANTITY	PART NO.	FIXTURE SLOT SIZE	A	TABLE SLOT SIZE	B	C SOCKET-HEAD CAP SCREW (ORDER SEPARATELY)	D
	CL-8-SFK-437	1/2	.5000	7/16	.4375	CL-1/4-20X.62-SHCS	9/32
	CL-8-SFK-562	1/2	.5000	9/16	.5625	CL-1/4-20X.62-SHCS	7/32
	CL-8-SFK-625	1/2	.5000	5/8	.6250	CL-1/4-20X.62-SHCS	7/32
	CL-8-SFK-687	1/2	.5000	11/16	.6875	CL-1/4-20X.62-SHCS	7/32
	CL-8-SFK-12	1/2	.5000	12mm	.4724	CL-1/4-20X.62-SHCS	9/32
	CL-8-SFK-14	1/2	.5000	14mm	.5512	CL-1/4-20X.62-SHCS	7/32
	CL-8-SFK-16	1/2	.5000	16mm	.6299	CL-1/4-20X.62-SHCS	7/32
	CL-8-SFK-18	1/2	.5000	18mm	.7087	CL-1/4-20X.62-SHCS	7/32
	CL-9-SFK-437	9/16	.5625	7/16	.4375	CL-1/4-20X.62-SHCS	9/32
	CL-9-SFK-500	9/16	.5625	1/2	.5000	CL-1/4-20X.62-SHCS	9/32
	CL-9-SFK-625	9/16	.5625	5/8	.6250	CL-1/4-20X.62-SHCS	7/32
	CL-9-SFK-12	9/16	.5625	12mm	.4724	CL-1/4-20X.62-SHCS	9/32
	CL-9-SFK-14	9/16	.5625	14mm	.5512	CL-1/4-20X.62-SHCS	9/32
	CL-9-SFK-16	9/16	.5625	16mm	.6299	CL-1/4-20X.62-SHCS	7/32
	CL-10-SFK-500	5/8	.6250	1/2	.5000	CL-5/16-18X.75-SHCS	9/32
	CL-10-SFK-562	5/8	.6250	9/16	.5625	CL-5/16-18X.75-SHCS	9/32
	CL-10-SFK-687	5/8	.6250	11/16	.6875	CL-5/16-18X.75-SHCS	7/32
	CL-10-SFK-750	5/8	.6250	3/4	.7500	CL-5/16-18X.75-SHCS	7/32
	CL-10-SFK-812	5/8	.6250	13/16	.8125	CL-5/16-18X.75-SHCS	7/32
	CL-10-SFK-12	5/8	.6250	12mm	.4724	CL-5/16-18X.75-SHCS	9/32
	CL-10-SFK-14	5/8	.6250	14mm	.5512	CL-5/16-18X.75-SHCS	9/32
	CL-10-SFK-16	5/8	.6250	16mm	.6299	CL-5/16-18X.75-SHCS	7/32
	CL-10-SFK-18	5/8	.6250	18mm	.7087	CL-5/16-18X.75-SHCS	7/32
	CL-10-SFK-20	5/8	.6250	20mm	.7874	CL-5/16-18X.75-SHCS	7/32
	CL-11-SFK-562	11/16	.6875	9/16	.5625	CL-5/16-18X.75-SHCS	9/32
	CL-11-SFK-625	11/16	.6875	5/8	.6250	CL-5/16-18X.75-SHCS	9/32
	CL-11-SFK-750	11/16	.6875	3/4	.7500	CL-5/16-18X.75-SHCS	7/32
	CL-11-SFK-812	11/16	.6875	13/16	.8125	CL-5/16-18X.75-SHCS	7/32
	CL-11-SFK-16	11/16	.6875	16mm	.6299	CL-5/16-18X.75-SHCS	9/32
	CL-11-SFK-18	11/16	.6875	18mm	.7087	CL-5/16-18X.75-SHCS	7/32
	CL-11-SFK-20	11/16	.6875	20mm	.7874	CL-5/16-18X.75-SHCS	7/32
	CL-12-SFK-625	3/4	.7500	5/8	.6250	CL-5/16-18X.75-SHCS	9/32
	CL-12-SFK-687	3/4	.7500	11/16	.6875	CL-5/16-18X.75-SHCS	9/32
	CL-12-SFK-812	3/4	.7500	13/16	.8125	CL-5/16-18X.75-SHCS	7/32
	CL-12-SFK-18	3/4	.7500	18mm	.7087	CL-5/16-18X.75-SHCS	9/32
	CL-12-SFK-20	3/4	.7500	20mm	.7874	CL-5/16-18X.75-SHCS	7/32
	CL-13-SFK-687	13/16	.8125	11/16	.6875	CL-5/16-18X.75-SHCS	9/32
	CL-13-SFK-750	13/16	.8125	3/4	.7500	CL-5/16-18X.75-SHCS	9/32
	CL-13-SFK-18	13/16	.8125	18mm	.7087	CL-5/16-18X.75-SHCS	9/32
	CL-13-SFK-20	13/16	.8125	20mm	.7874	CL-5/16-18X.75-SHCS	9/32

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	FIXTURE SLOT SIZE	A (mm)	TABLE SLOT SIZE	B (mm)	C SOCKET-HEAD CAP SCREW (ORDER SEPARATELY)	D (mm)
	CL-20-SFK-12	20mm	20	12mm	12	CLM-6X15-SHCS	7
	CL-20-SFK-500	20mm	20	1/2"	12.70	CLM-6X15-SHCS	7
	CL-20-SFK-14	20mm	20	14mm	14	CLM-6X15-SHCS	7
	CL-20-SFK-562	20mm	20	9/16"	14.29	CLM-6X15-SHCS	7
	CL-20-SFK-625	20mm	20	5/8"	15.88	CLM-6X15-SHCS	7
	CL-20-SFK-16	20mm	20	16mm	16	CLM-6X15-SHCS	7
	CL-20-SFK-687	20mm	20	11/16"	17.46	CLM-6X15-SHCS	7
	CL-20-SFK-18	20mm	20	18mm	18	CLM-6X15-SHCS	7
	CL-20-SFK-750	20mm	20	3/4"	19.05	CLM-6X15-SHCS	7
	CL-20-SFK-812	20mm	20	13/16"	20.64	CLM-6X15-SHCS	5.5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
