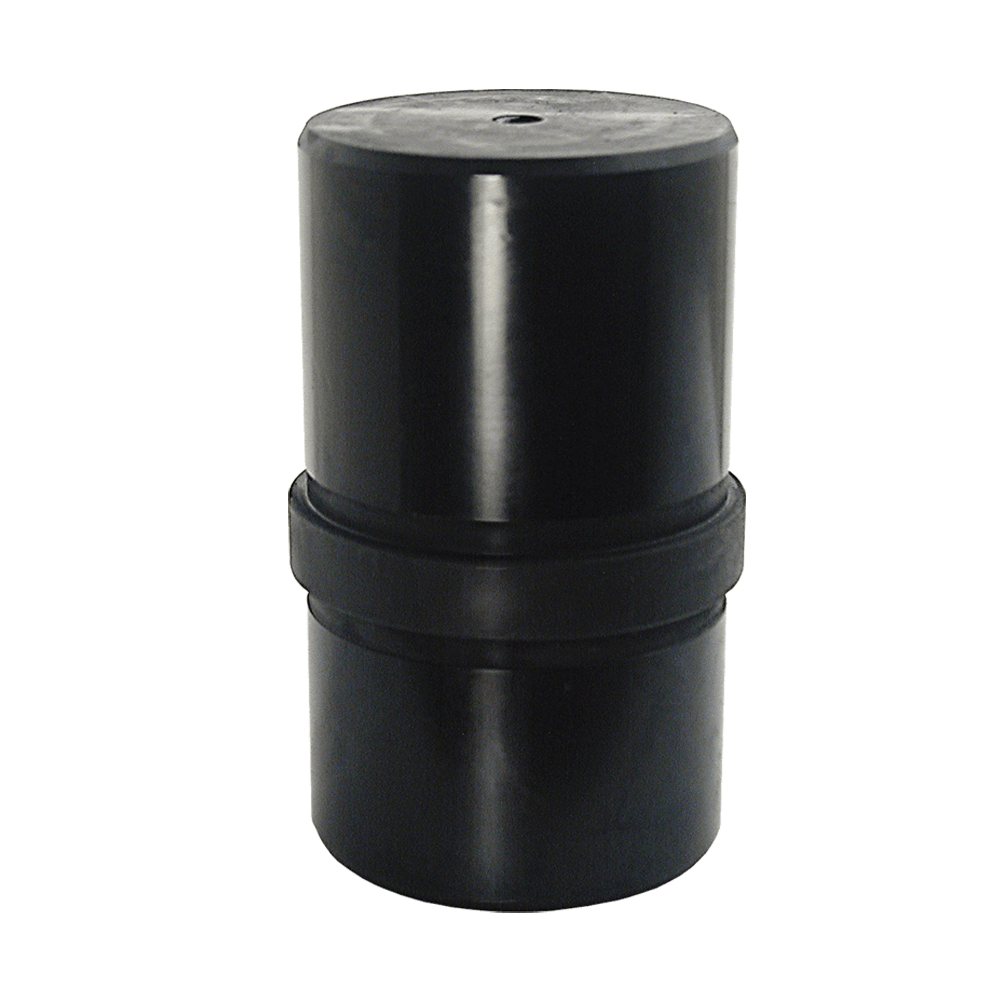

Pallet Fixture Keys (Center) Part # CLM-50-PFKC Carr Lane Mfg.®

Pallet Fixture Keys are used for mounting tooling plates and blocks on standard DIN pallets. Each pallet requires one center key and one radial key (for orientation). If desired, the radial key can be removed after fastening the pallet to the machine table. The tapped hole in the top of each pin makes insertion and removal easier. The center keys shown here are available for 25, 30, and 50mm center-hole diameters. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Each pallet requires one center key and one radial key (for orientation).

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1215 Steel	Carburized-Hardened	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Pallet Fixture Keys (Center)

PART NO.	A DIA NOMINAL	A DIA ACTUAL	B DIA NOMINAL	B DIA ACTUAL	C
CLM-25-PFKC	50mm	1.9681 / 1.9676	25mm	.9839 / .9835	2.87
CLM-30-PFKC	50mm	1.9681 / 1.9676	30mm	1.1808 / 1.1804	3.42
CLM-50-PFKC	50mm	1.9681 / 1.9676	50mm	1.9681 / 1.9676	3.42
