Reversible Construction Ball Pad Inch

Locating Pins

Save to My Project

What is this?

Product Information

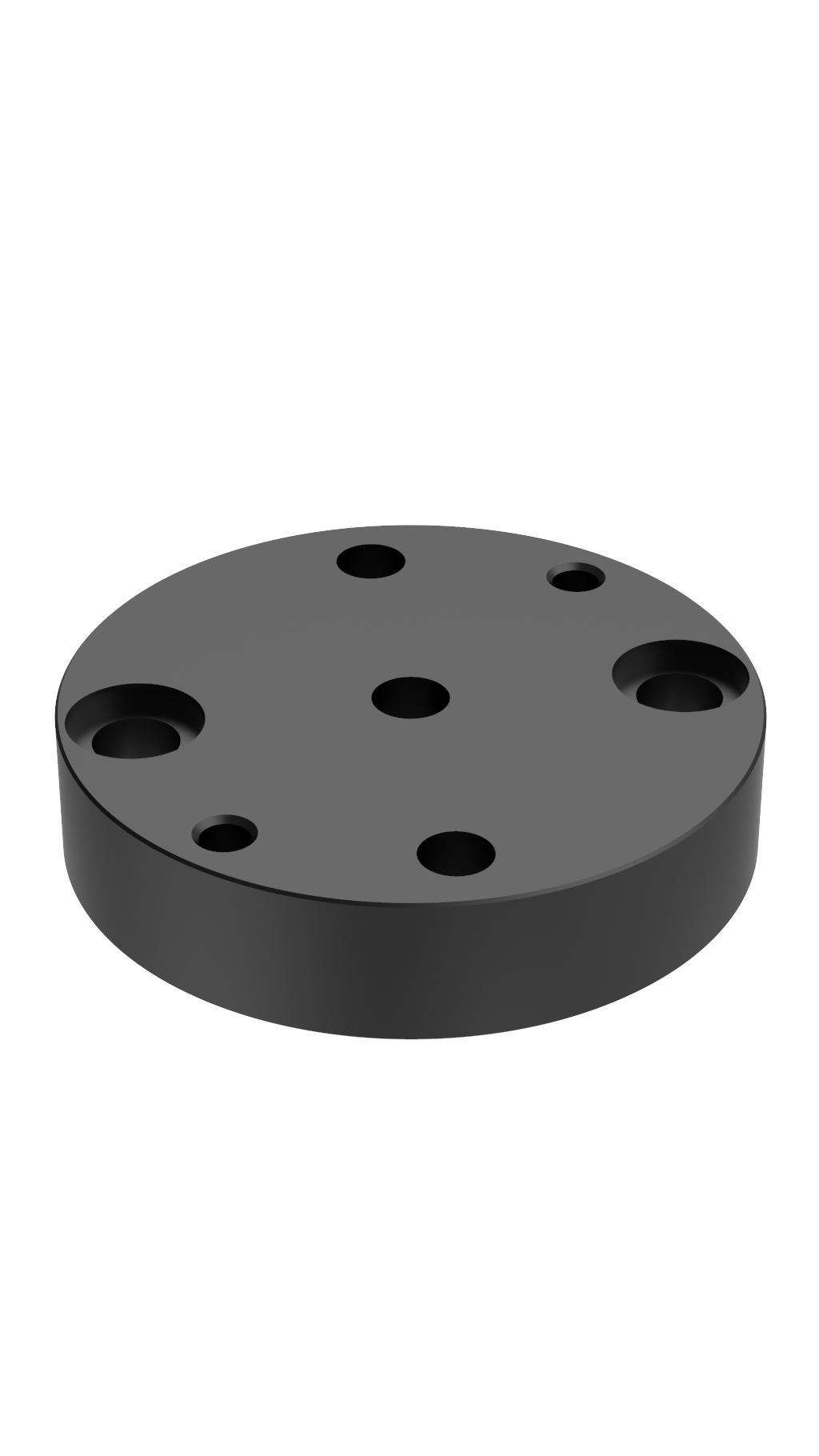

Reversible Construction Ball Pad Inch Part # CL-3-R-CBPR Carr Lane Mfg.®

Reversible round pad for mounting a Construction Ball. This precision reversable round pad can be flipped over in order to mirror a fixture (see application). These round pads should be fastened with two ultra-low-profile socket-head cap screws, then doweled in place to maintain accurate location. The Construction Ball can be secured by installing a #10-32 setscrew (not furnished) in the crosshole. Available in steel and stainless steel. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

Steel
MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Steel or equivalent	-	Black Oxide	✔	✔

Stainless Steel
MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
17-4PH Stainless Steel	-	Passivated	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Reversible Construction Ball Pad Inch

Steel

PART NO.	A DIA NOMINAL	A DIA ACTUAL
CL-1-R-CBPR	1/4	.2500
CL-2-R-CBPR	5/16	.3125
CL-3-R-CBPR	3/8	.3750

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Stainless Steel

PART NO.	A DIA NOMINAL	A DIA ACTUAL
CL-1-R-CBPR-S	1/4	.2500
CL-2-R-CBPR-S	5/16	.3125
CL-3-R-CBPR-S	3/8	.3750

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
