Construction Balls – Adjustable Type

Locating Pins

Save to My Project

What is this?

Product Information

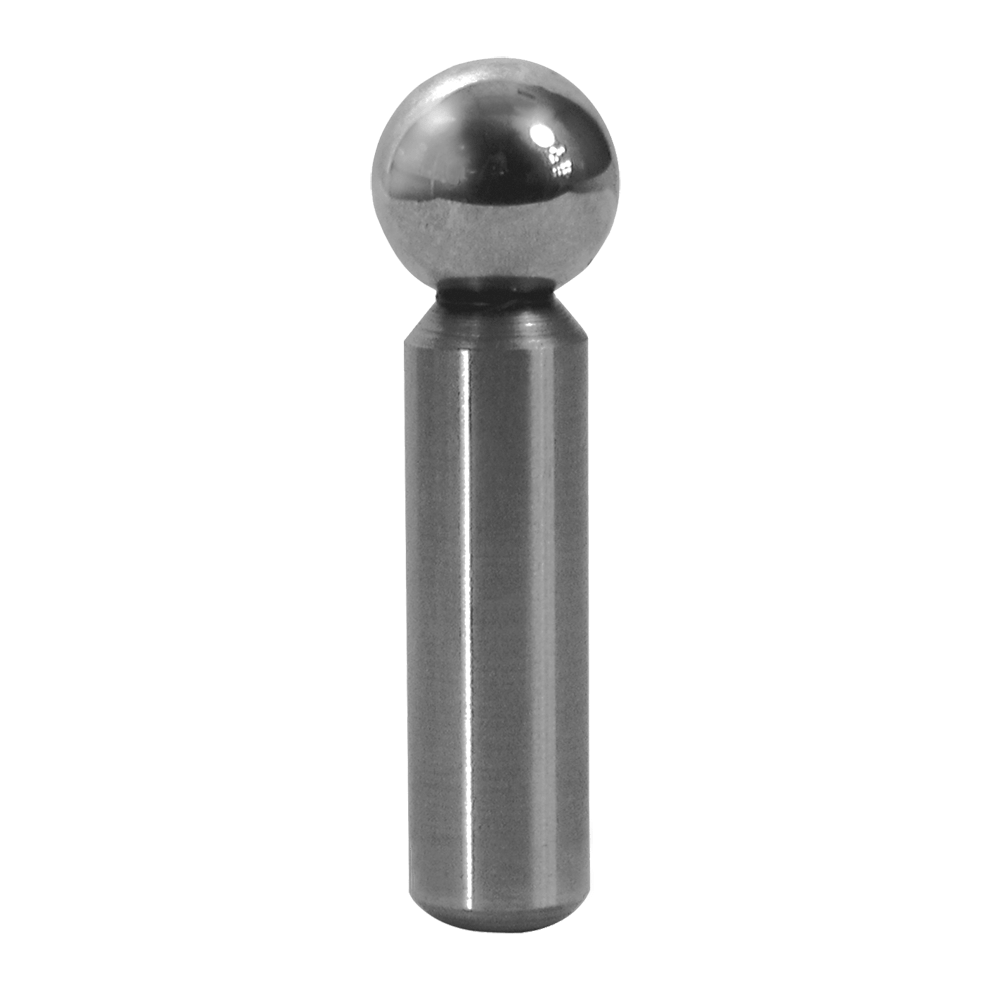

Construction Balls – Adjustable Type Part # CL-00-CB Carr Lane Mfg.®

Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. The adjustable type has no shoulder, so it can be set at any desired height and then locked with a set screw. Concentricity between ball and shank is .0002" TIR. These Construction Balls are available with 1/4, 3/8, and 1/2" ball sizes. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material Chart

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Steel or equivalent	Heat Treated Rc 54-56	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Construction Balls – Adjustable Type

Steel (Inch)

PART NO.	BALL DIA NOMINAL	BALL DIA ACTUAL	A DIA NOMINAL	A DIA ACTUAL	B
CL-0-CB	1/4	.2500/.2497	1/8	.1250/.1246	.56
CL-00-CB	3/8	.3750/.3747	3/16	.1875/.1871	.75
CL-1-CB	1/2	.5000/.4997	1/4	.2500/.2497	1.50
CL-3-CB	1/2	.5000/.4997	5/16	.3125/.3122	1.50
CL-5-CB	1/2	.5000/.4997	3/8	.3750	1.50
