Construction-Ball Pads (Shank Type)

Locating Pins

Save to My Project

What is this?

Product Information

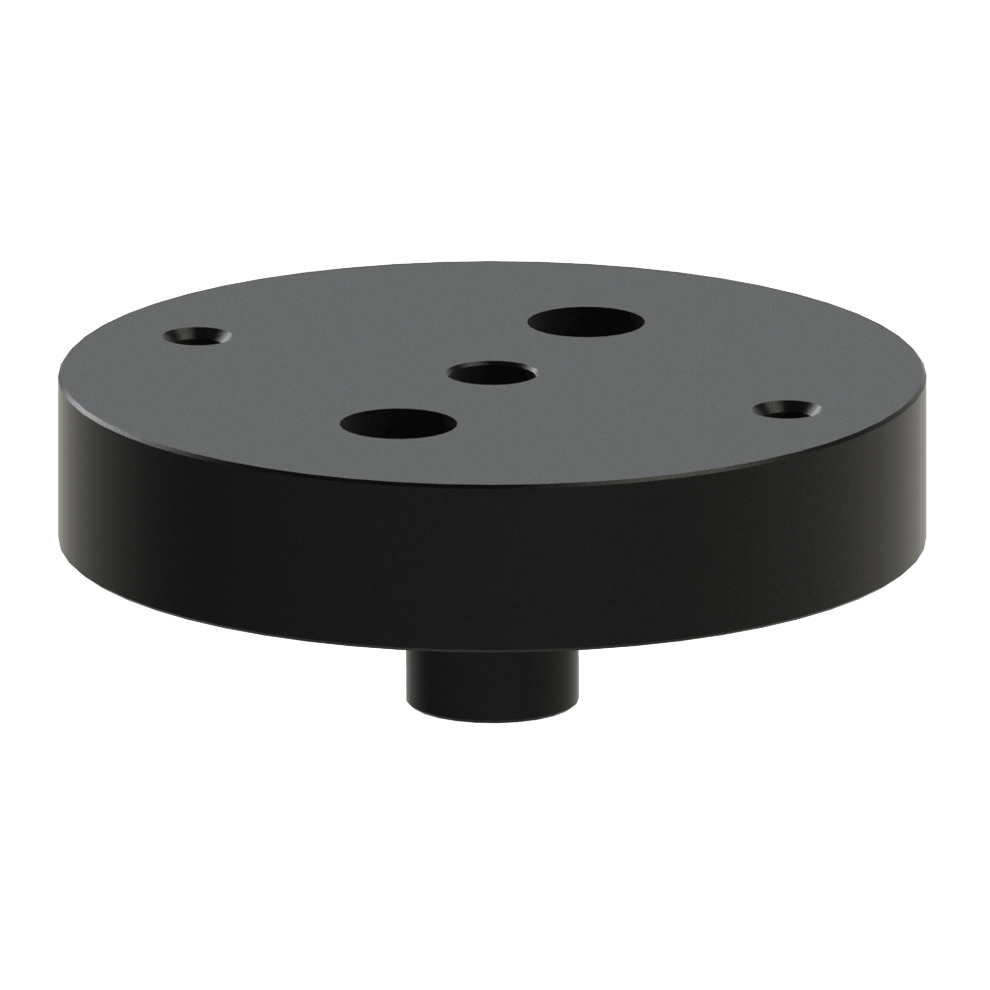

Construction-Ball Pads (Shank Type) Part # CL-1-CBPK Carr Lane Mfg.®

Precision round pad for mounting a Construction Ball. These shank-type Construction-Ball Pads should be installed in a reamed hole for accurate location, then fastened with two socket-head cap screws. Available in one size, to fit all Construction Balls with 1/4" shank diameter. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Optional Cover

A sturdy die-cast zinc cover is available to protect Construction Balls from damage or misadjustment after setting (see Related Products below). Two #10-24 tapped holes allow attaching the cover.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
8620 Steel	Carburized Hardened	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Construction-Ball Pads (Shank Type)

Inch

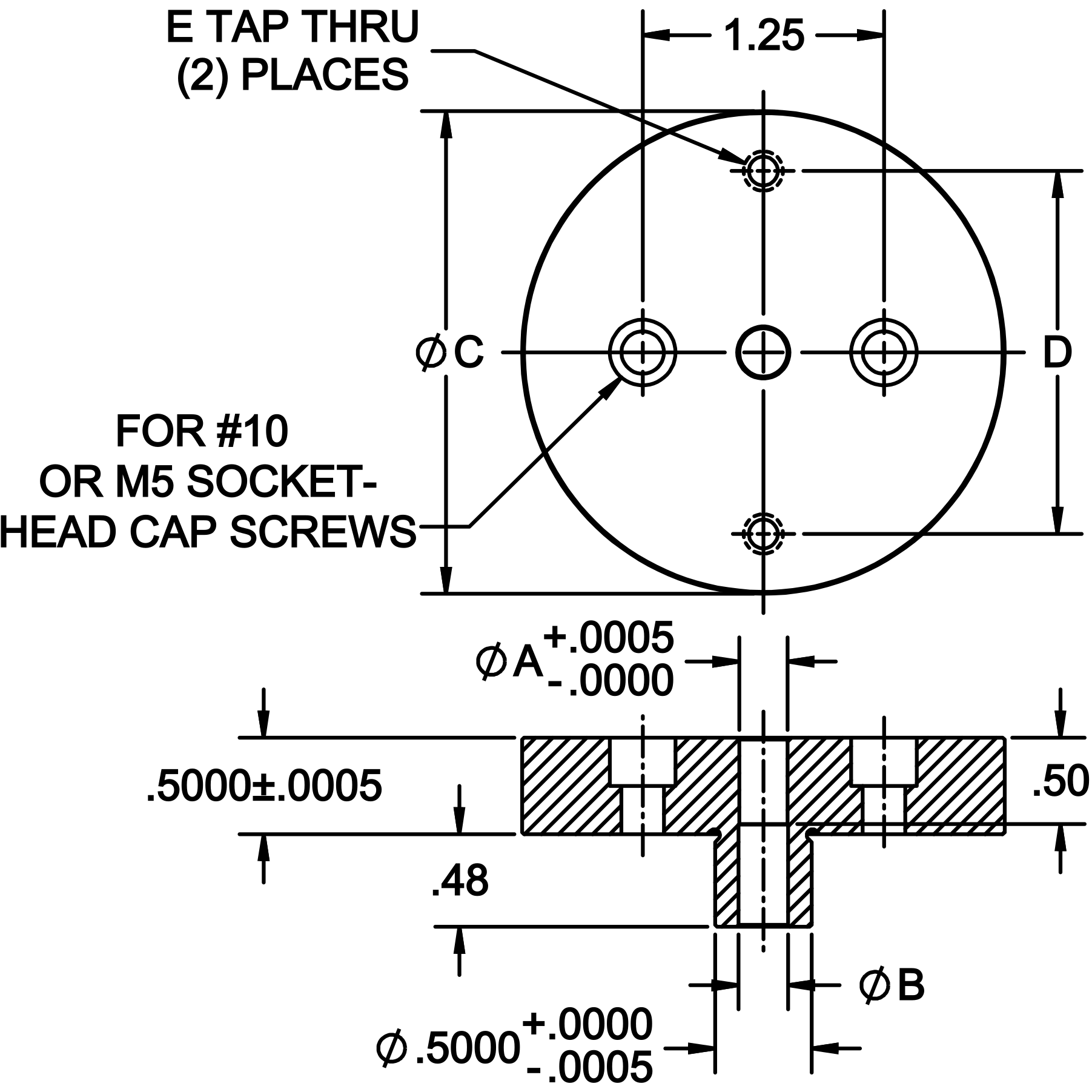

QUANTITY	PART NO.	A DIA NOMINAL	A DIA ACTUAL	B DIA	C DIA	D	E THREAD
	CL-1-CBPK	1/4	.2500	.257	2.50	1.88	#10-24

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Construction-Ball Pads (Shank Type)

Construction-Ball Covers
