Locking Trunnions

Jig & Fixture

Save to My Project

What is this?

Product Information

Locking Trunnions Part # CL-200-TL Carr Lane Mfg.®

Trunnions are rugged, precision bearing mounts for revolving fixtures. Ideal for assembly and welding fixtures, and any other applications where the part must be accessible from all sides. For heavy loads, use Trunnions in pairs to avoid a large bending moment. One Locking Trunnion and one Revolving Trunnion are often paired together. The locking version, shown here, has a friction-cone mechanism that stops the rotor at any angle by tightening the knob handle (loosen knob again to unlock). The revolving version has a free-rotating bearing at both ends of the rotor shaft, with no locking mechanism. Choice of two sizes. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

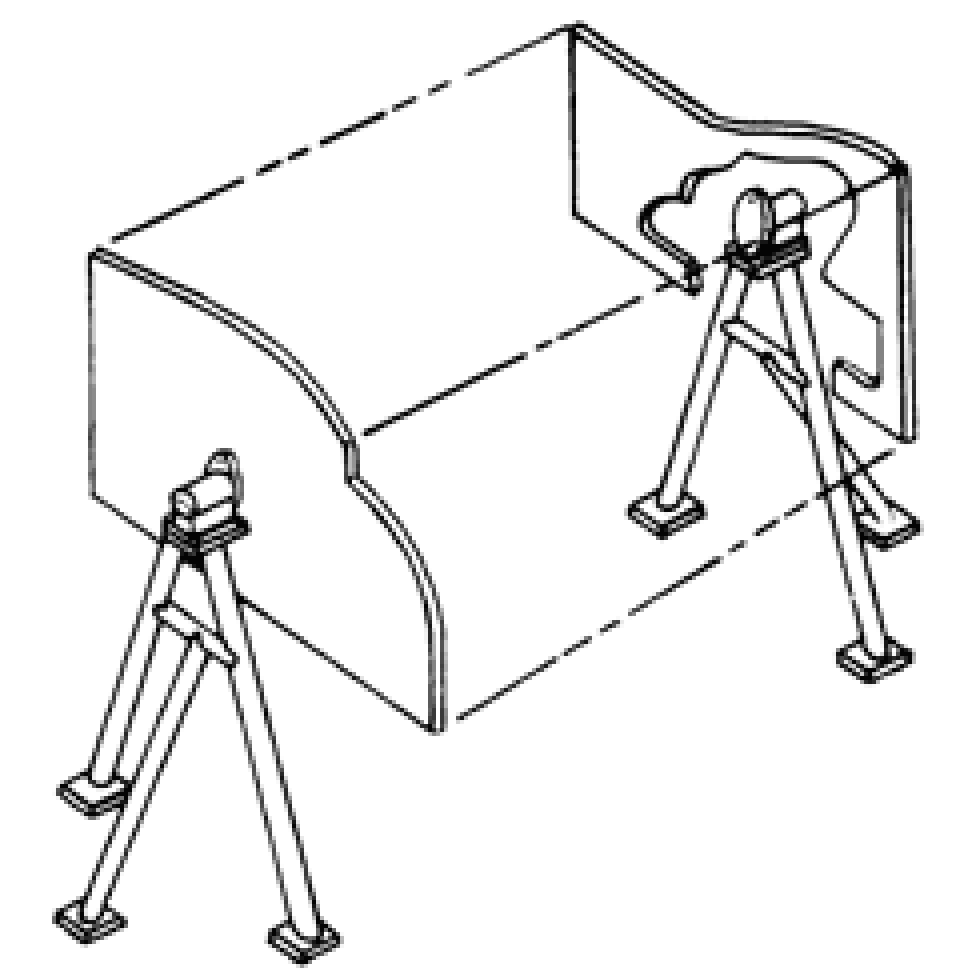

For heavy loads, use Trunnions in pairs to avoid a large bending moment. One Locking Trunnion and one Revolving Trunnion are often paired together.

Videos

Trunnions from Carr Lane Mfg.

Trunnions from Carr Lane Mfg.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Rotor, knob handle, and friction cone	Aluminum Alloy	-	-	✔	✔
Base Housing	Aluminum Alloy with bronze bearings	-	Powder-coated exterior	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other internal components > Steel

Locking Trunnions

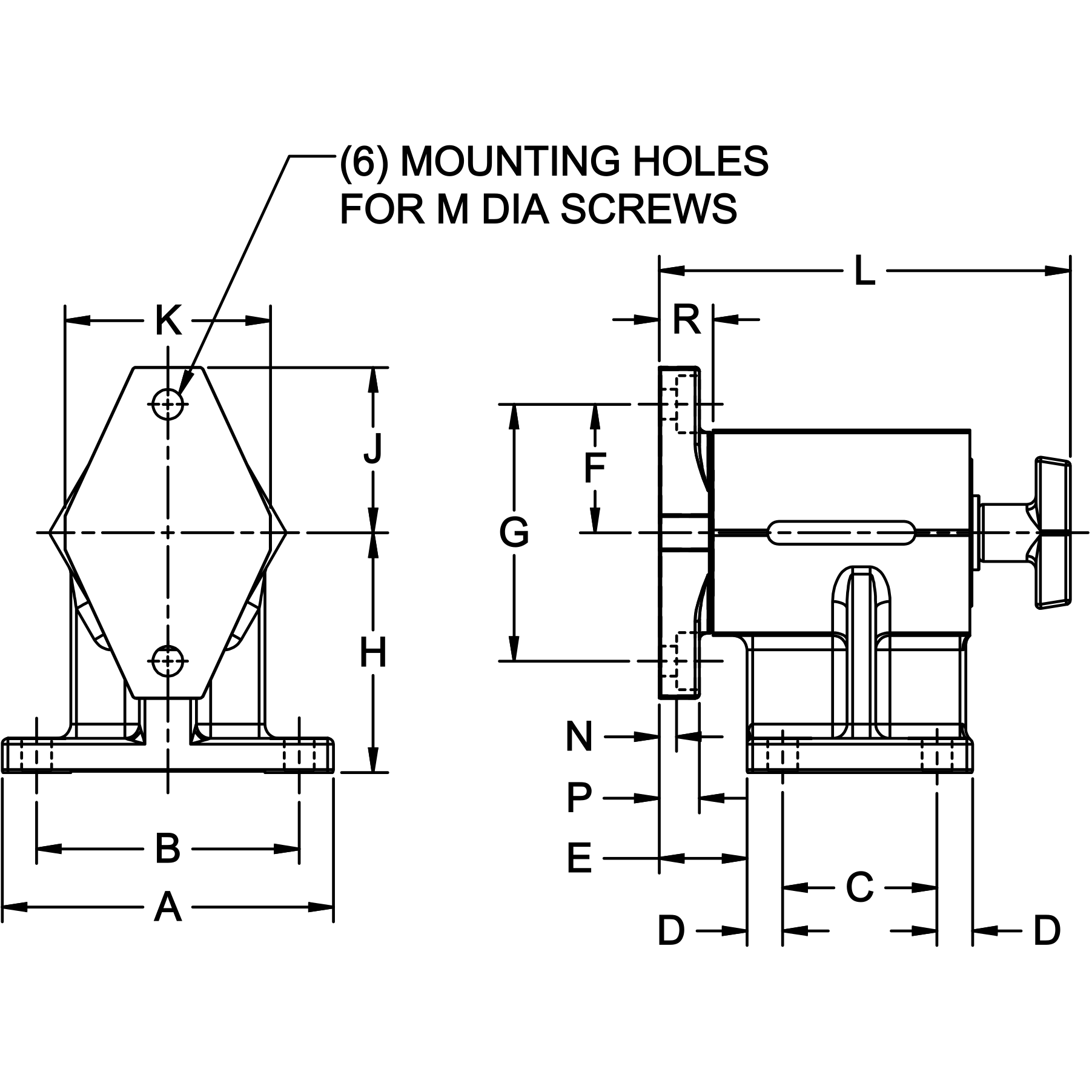

QUANTITY	PART NO.	LOAD CAPACITY 18" FROM FACE (lbs)	A	B	C	D	E	F	G	H	J	K	L	M MOUNTING SCREWS	N	P	R
	CL-100-TL	1800	5	4	2-3/8	1/2	1-3/8	2	4	4	2-5/8	3-1/4	7	3/8 or M10	.33	5/8	13/16
	CL-200-TL	2500	7-1/4	5-3/4	3-3/8	3/4	1-7/8	2-13/16	5-5/8	5-1/4	3-3/4	4-1/4	9	5/8 or M16	.38	7/8	1-1/8

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Locking Trunnions

Revolving Trunnions
