Modular Hinged Bushing Plates

Jig & Fixture

Save to My Project

What is this?

Product Information

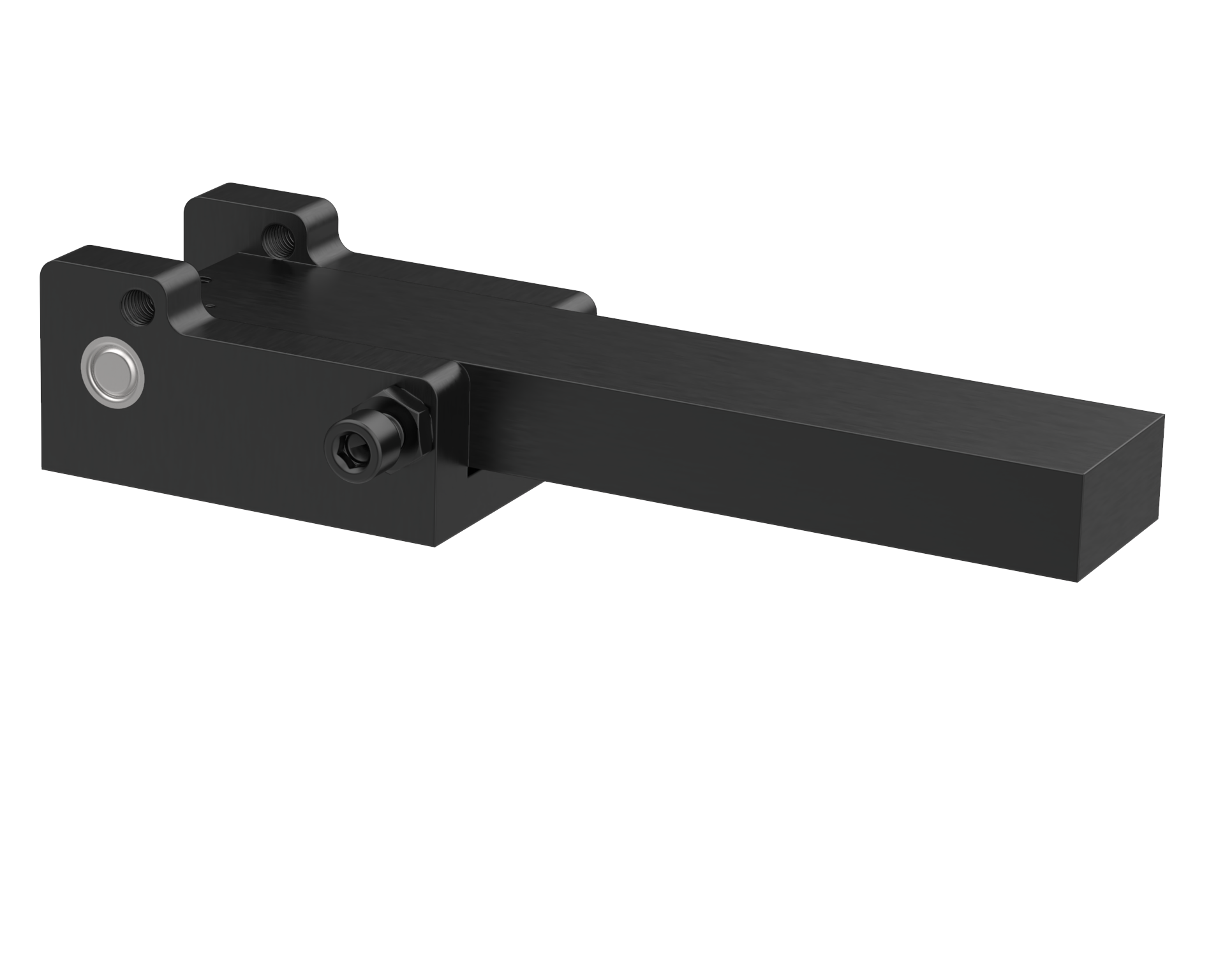

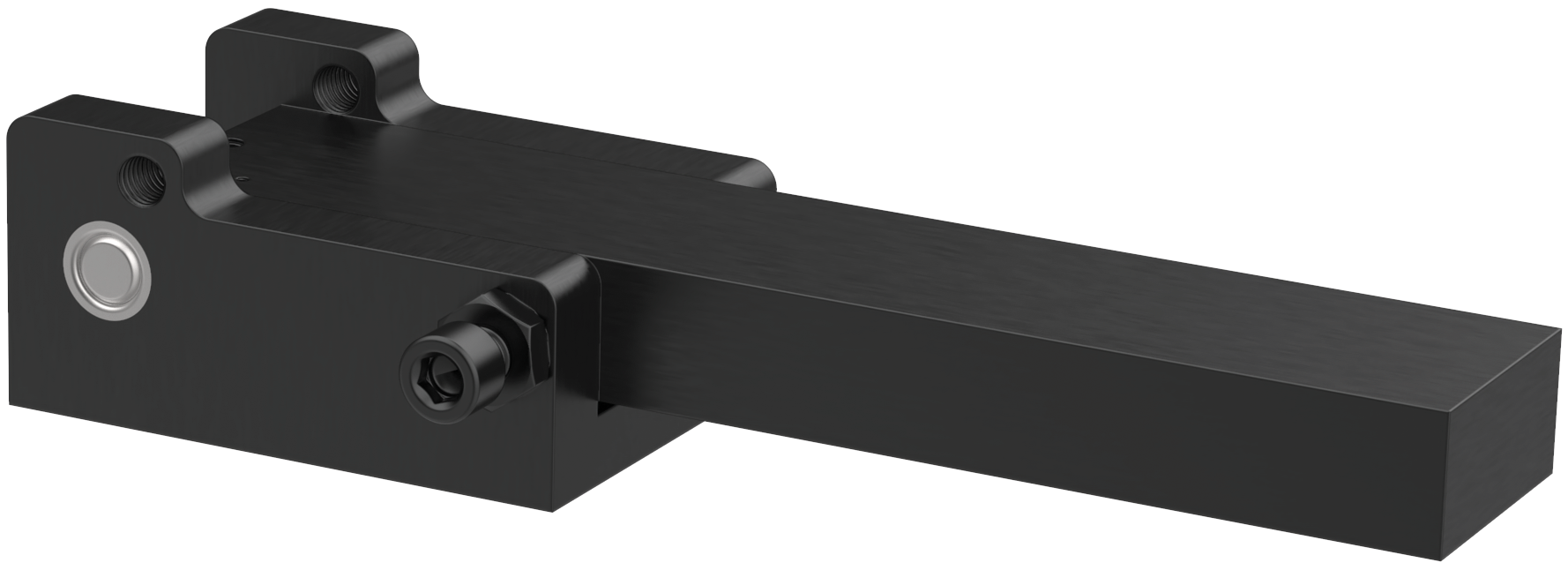

Modular Hinged Bushing Plates Part # CL-13-HBP Carr Lane Mfg.®

Modular Hinged Bushings Plates are precise, heavy-duty busing-plate assemblies for large-scale production jigs. The Modular Hinged Bushing Plate can be ordered as a standard kit or configured to be customized to your application. The standard kit includes a steel base with ground steel rest pads installed for accurate location, steel sides with installed liner bushings as bearings for the hardened pivot pin, and a swing-away arm that is left unhardened for customer modifications. The arm swings freely but can be locked at 100 deg with the optional locking mechanism. Additional locking options allow for the arm to be locked in the closed position. Fine adjustment of the arm position can be made using a Ball-Ended Thrust Screw for optimal alignment. Modular Hinged Bushings Plates are available in two sizes. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Configuration Options

Available Configuration Options
ITEM	Description	STEEL	ALUMINUM
1	MHBP BASE	✔ (STEEL REST BUTTON INSTALLED, Black Oxide Finish)	✔ (DELRIN REST BUTTON INSTALLED)
2	MHBP SIDE	✔	✔
3	MGBP ARM	✔	✔
4	JAM NUT	✔	-
5	BALL THRUST SCREW	✔	-
11	HAND RETRACTABLE PLUNGER	✔	-
12	LOCKING RECEPTACLE	-	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Modular Hinged Bushing Plates

QUANTITY	PART NUMBER	A	B	C	D	E	F	G	H	J	K	M
	CL-12-HBP	1.95	3.5	4.33	3.88	2-1/2	1.21	10.5	10.7	1-1/4	1.97	3.00
	CL-13-HBP	2.45	4.0	5.33	4.83	2-5/8	1.33	12.875	13.3	1-3/8	2.22	4.00
