ROEMHELD METEC 5-axis Quick-Change Riser

Jig & Fixture,CL5® 5-Axis Workholding,Quick-Change

Save to My Project

What is this?

Product Information

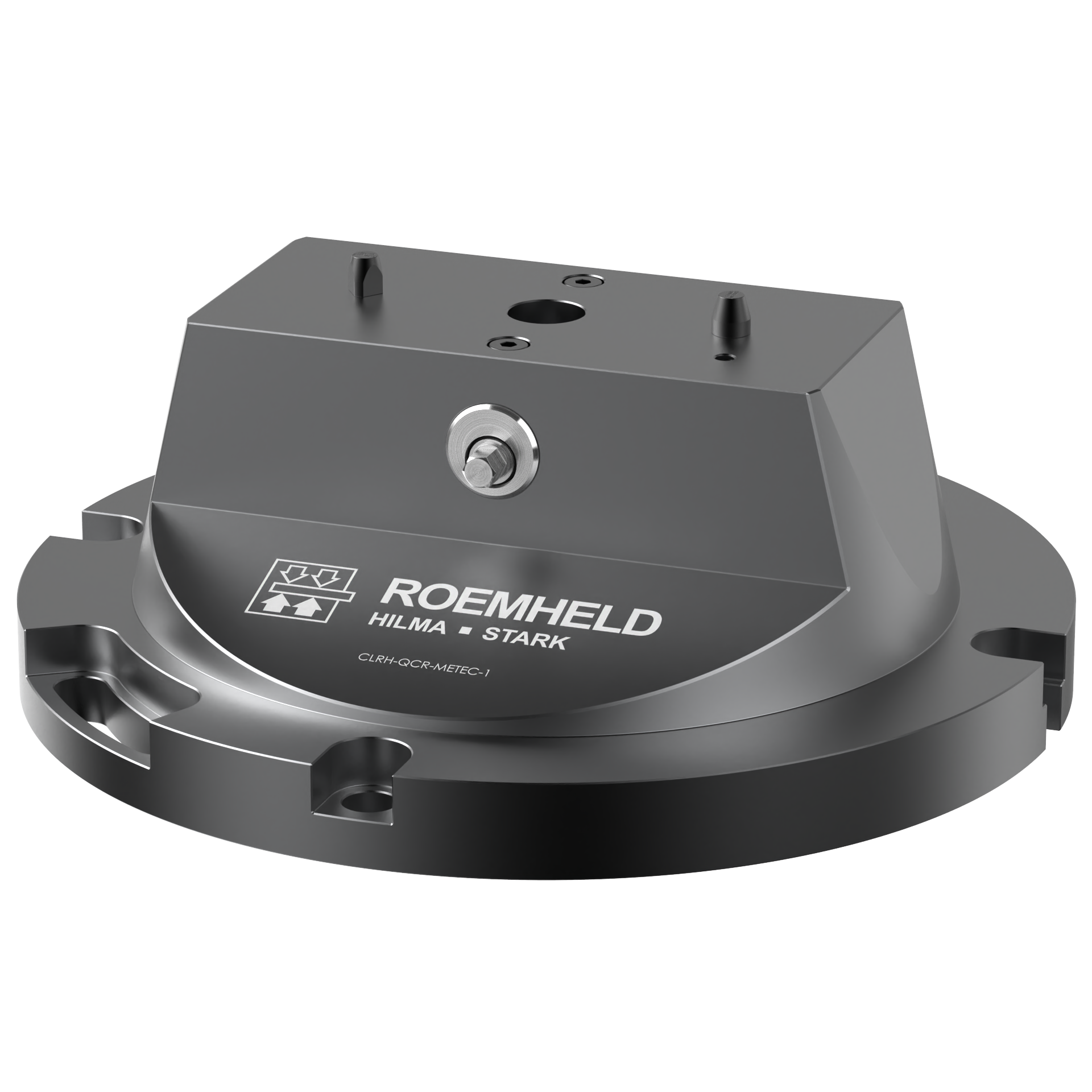

ROEMHELD METEC 5-axis Quick-Change Riser Part # CLRH-QCR-METEC-1 Carr Lane Mfg.®

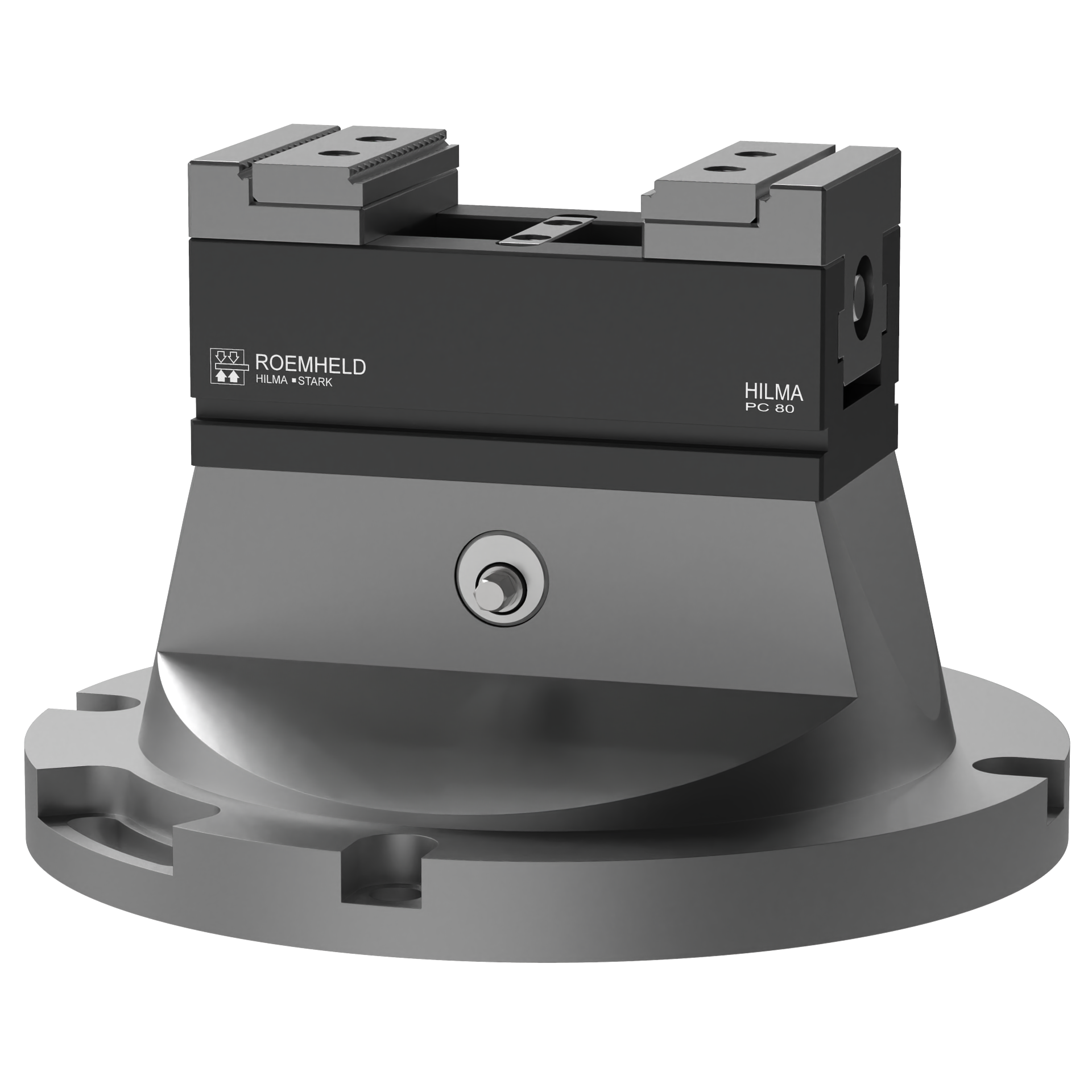

ROEMHELD METEC 5-axis Quick-Change Riser, for use with PC80 and MCP60 vises.

The height of the Riser is specially designed to elevate the workpiece from the table to provide spindle clearance. To reduce weight, while maintaining strength it is precision machined from 6061 Aluminum. It mounts easily to most machines and may be mounted in several positions utilizing either a ½" or M12 Socket head cap screws.

This riser can be accurately located to the center of a fixture or rotary table using a Center Locating Key (CLM-25-CLK-50).

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Riser	6061 Aluminum/td>	-	Anodize
Clamping Spindle	Tool Steel	Heat Treated	-
Locating Pins	A2 Tool Steel	Heat Treated	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD METEC 5-axis Quick-Change Riser

QUANTITY	Part No.	Mounting Screw	Weight (LBS)	Recommended Locating Key
	CLRH-QCR-METEC-1	1/2" or M12	16.85	CLM-25-CLK-50

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to ROEMHELD METEC 5-axis Quick-Change Riser

ROEMHELD DropZero® Modular Zero-Point System

ROEMHELD MCP60Z 5-Axis Concentric Manual Vises (60mm)
