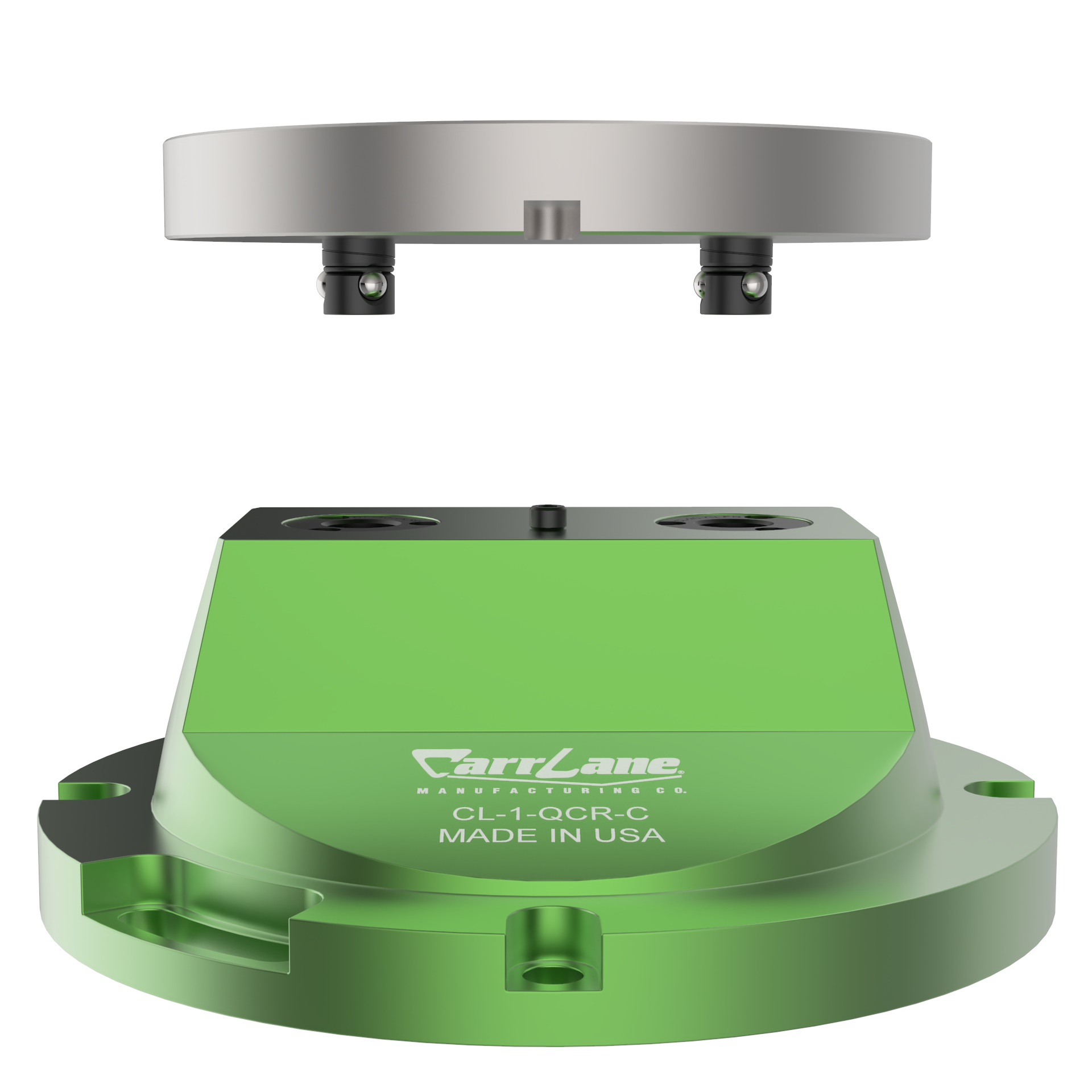

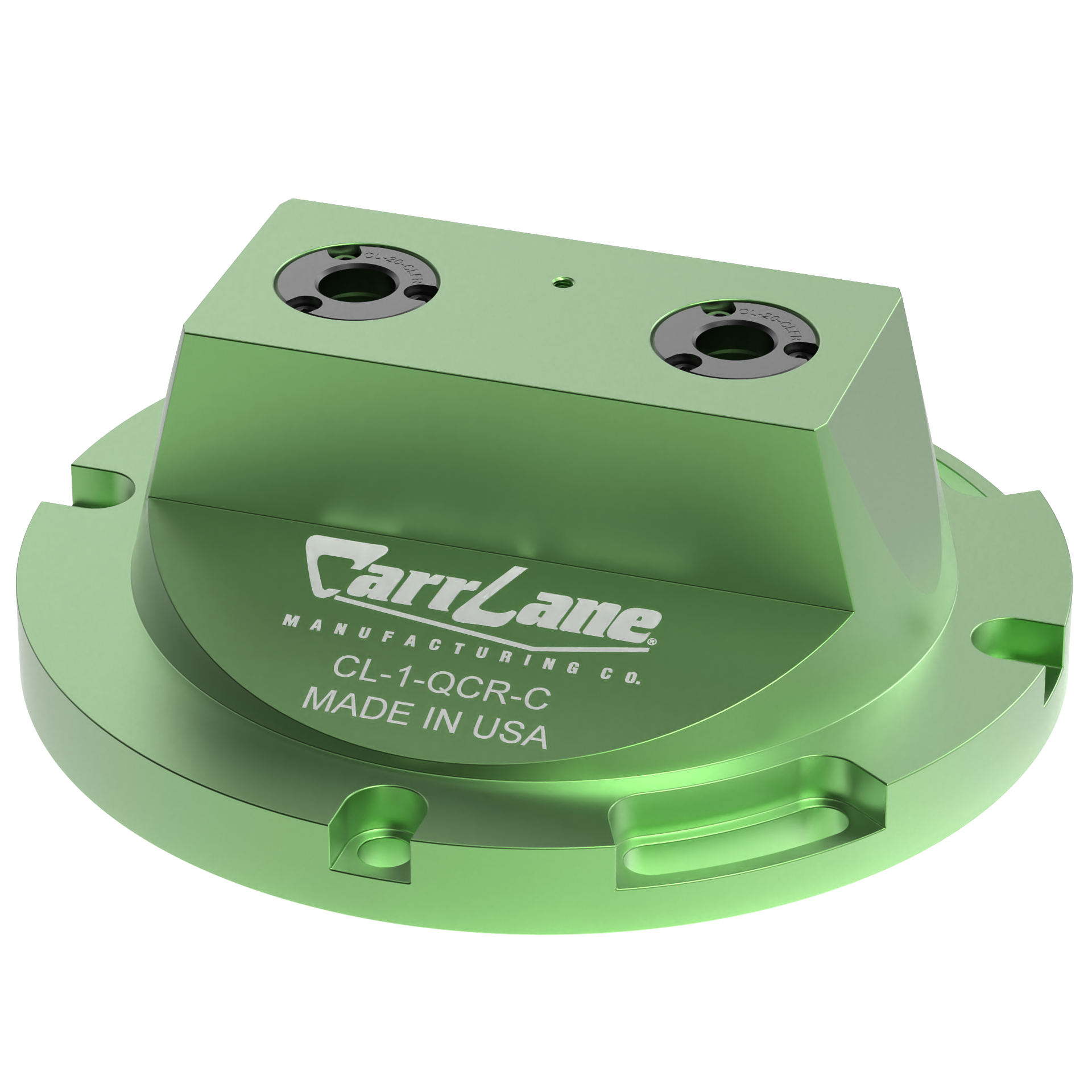

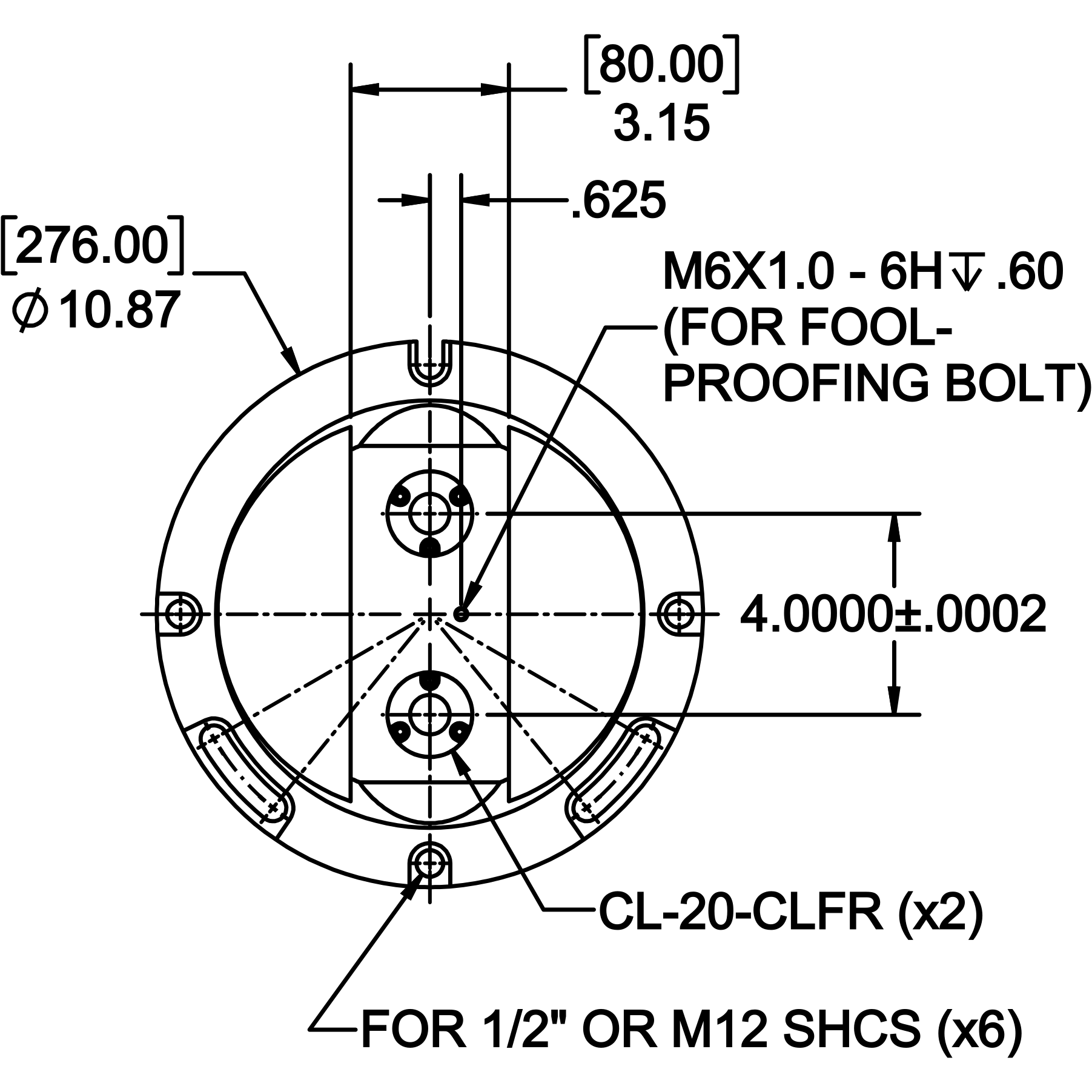

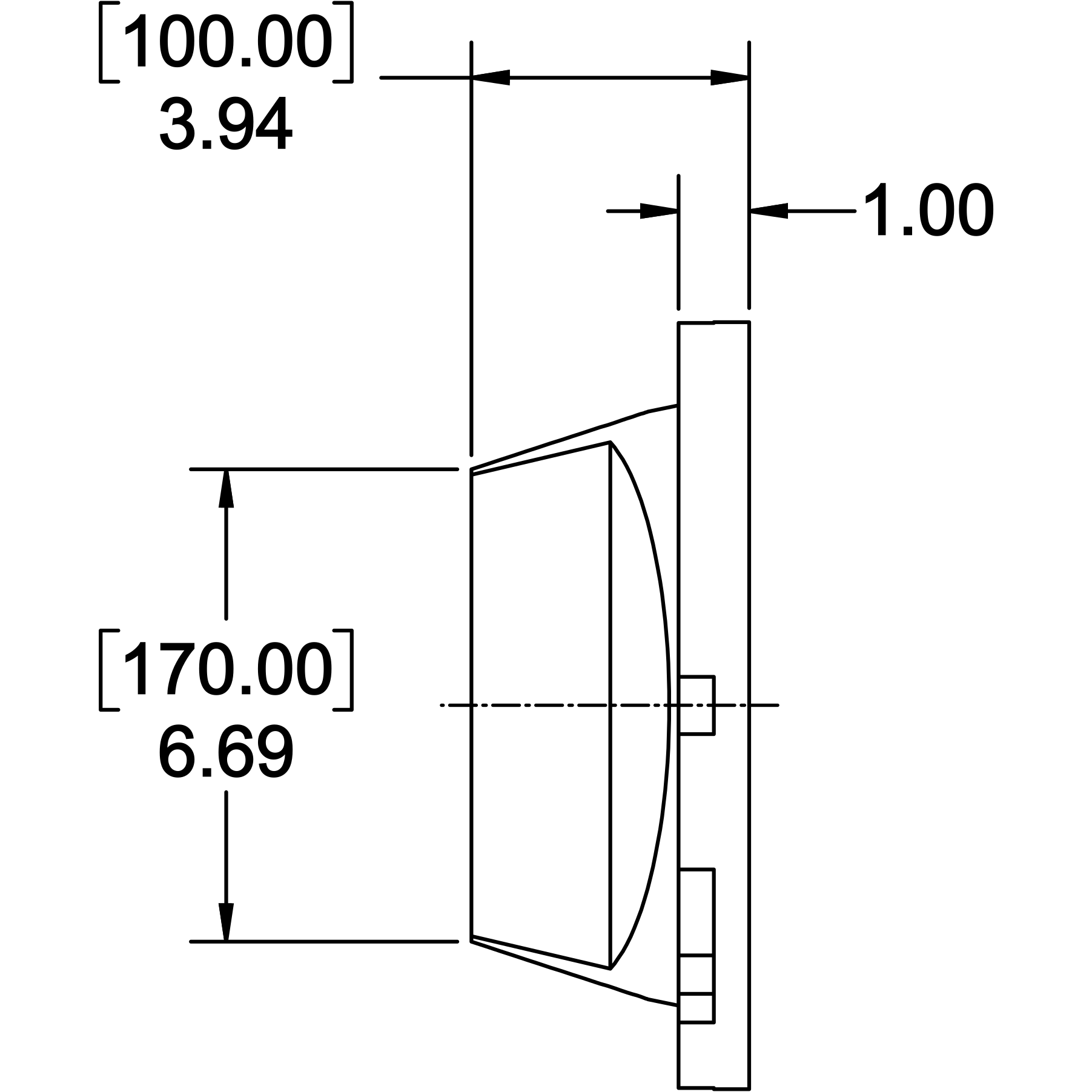

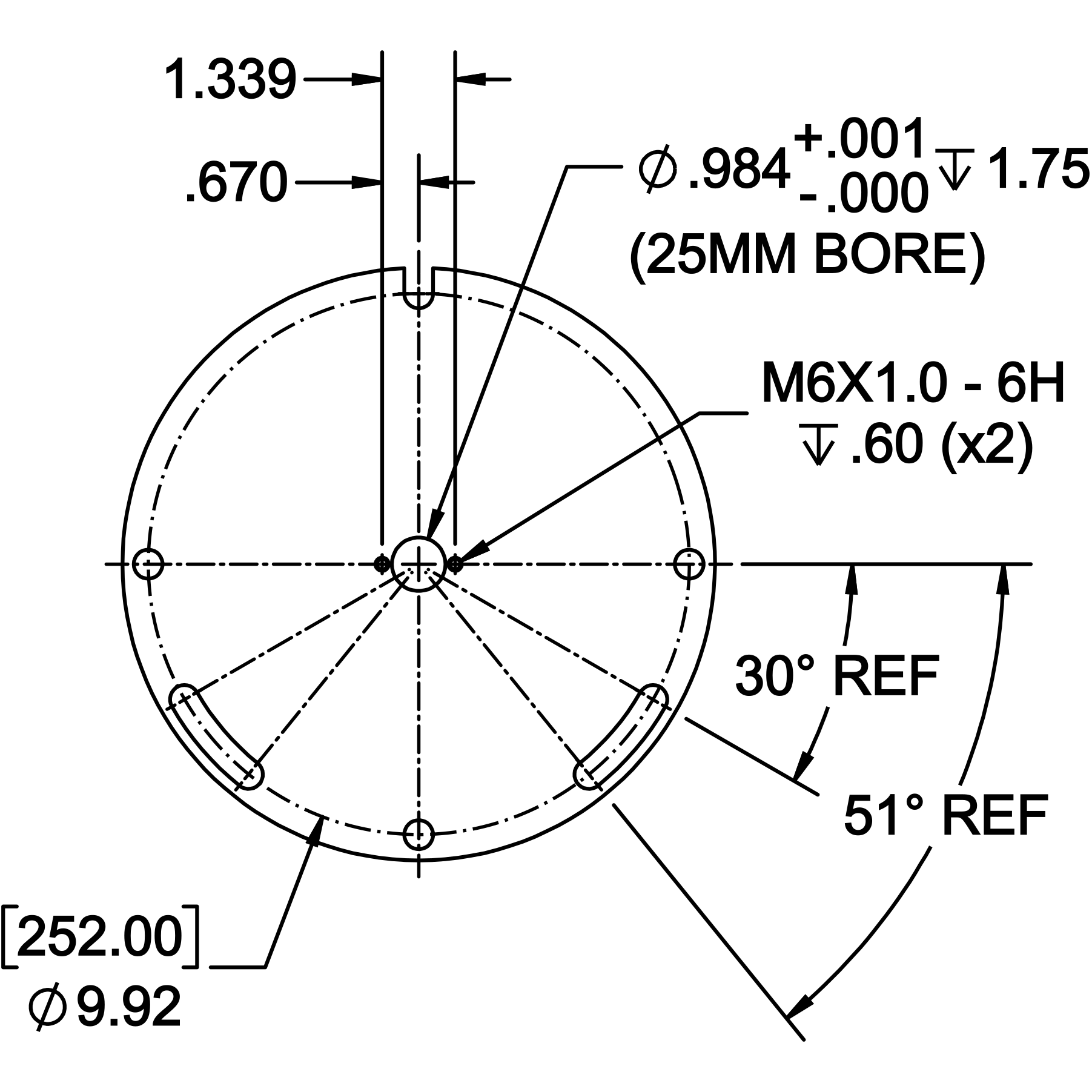

Quick-Change Carr Lock® Riser Part # CL-1-QCR-C Carr Lane Mfg.®

The Quick-Change Carr Lock® Riser is ideal for use in 3+1, 3+2, and 5 Axis applications using standard Carr Lock® Clamps or Headless Carr Lock® Clamps. The height of the Riser is specially designed to elevate the workpiece from the table to provide spindle clearance. To reduce weight, while maintaining strength it is precision machined form 6061 Aluminum. It mounts easily to most machines and may be mounted in several positions utilizing either a ½" or M12 Socket head cap screws.

This riser can be accurately located to the center of a fixture or rotary table using a Center Locating Key (CLM-25-CLK-50). Made in the USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Videos

Headless Carr Lock® Clamps and Quick-Change Carr Lock® Riser - Carr Lane Manufacturing

Headless Carr Lock® Clamps and Quick-Change Carr Lock® Riser - Carr Lane Manufacturing

Carr Lock® Clamping System Overview With a CNC Machinist

Go lean with the Carr Lock® System & change from job to job in seconds. Carr Lane CNC Production Supervisor Nick Burton discusses the Carr Lock® System

Material

ITEM	Material	Heat Treat	Finish
Riser	6061 Aluminum	-	Green Anodize
Bushings	4340 Steel	Rc 50-54	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Quick-Change Carr Lock® Riser

QUANTITY	PART NO.	MOUNTING SCREW	WEIGHT (lbs)	RECOMMENDED LOCATING KEY
	CL-1-QCR-C	1/2" or M12	16.75	CLM-25-CLK-50
