Dovetail Clamping System

Jig & Fixture,CL5® 5-Axis Workholding,Quick-Change

Save to My Project

What is this?

Product Information

Dovetail Clamping System Part # CL-36-DVJI-60 Carr Lane Mfg.®

Dovetail clamping requires leaving excess material at the bottom of each workpiece for machining a male dovetail. This machined dovetail extension is used to clamp on during 5-axis work, by a mating dovetail clamp or vise jaw, then is removed in a secondary machining operation.

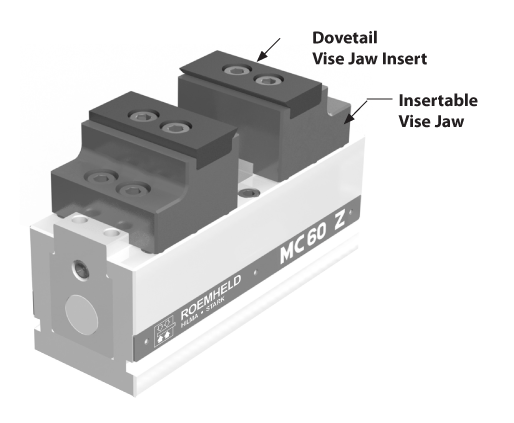

The dovetail inserts shown here fit 60mm-wide insertable jaws on MC60 and MC60Z 5-axis vises, with other sizes available upon request. Inserts are available for either 45-degree or 60-degree dovetails.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Example dovetail extension at bottom of workpiece.

Material

MATERIAL	HEAT TREAT	FINISH
1018 Steel	Carburized Hardened	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Dovetail Clamping System

Dovetail Vise Jaw (2 Required)

QUANTITY	PART NO.	D	F	H	J	K	L	M	N	P	R	S
	CLRH-9-3583-6906-VSA	.394	.236	1.339	.157	2.362	2.205	1.102	.945	1.181	.472	.709

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

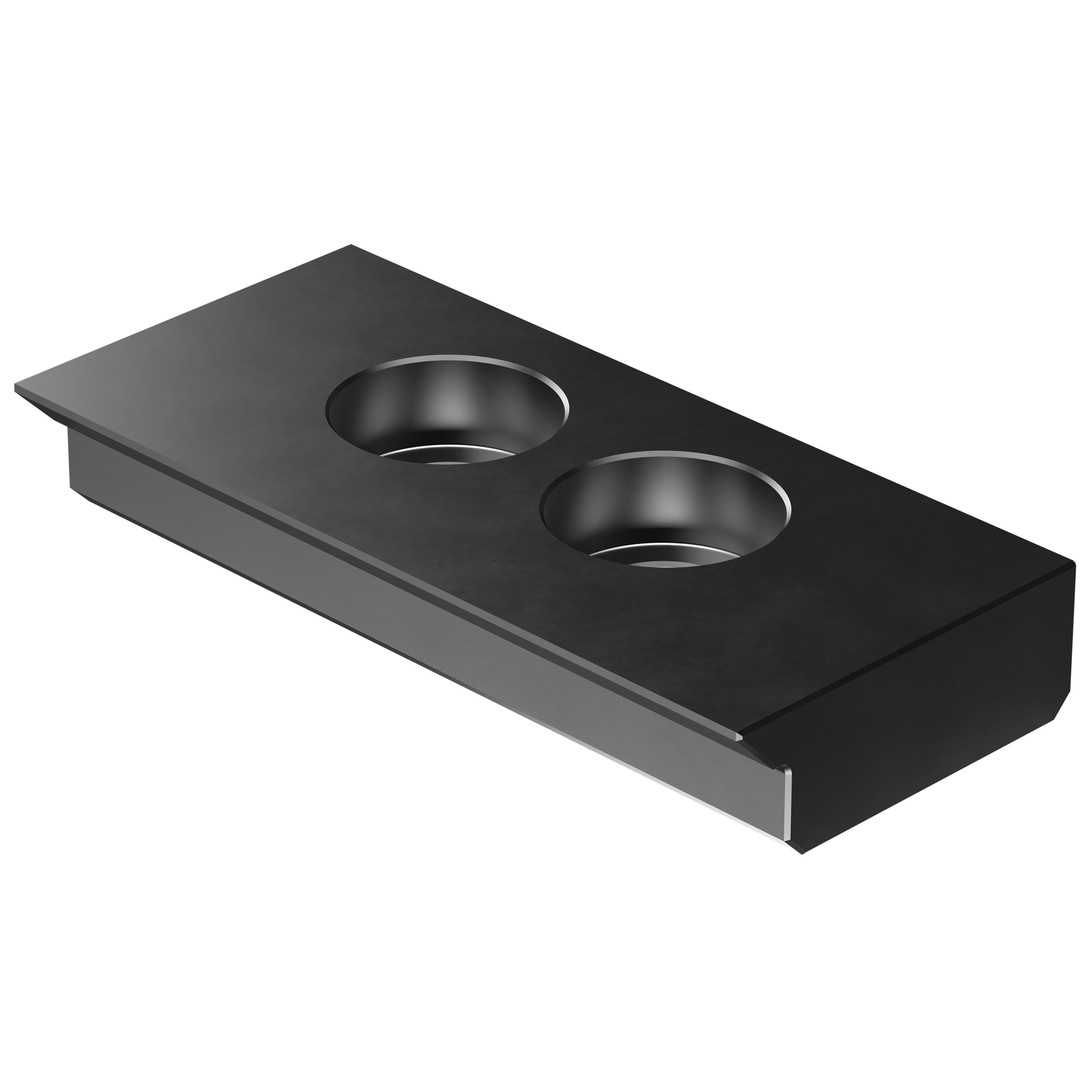

Dovetail Insert (2 Required)

QUANTITY	PART NO.	DOVETAIL ANGLE	FITS VISE JAW
	CL-36-DVJI-45	45°	CLRH-9-3583-6906-VSA
	CL-36-DVJI-60	60°	CLRH-9-3583-6906-VSA

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
