Round Fixture Plates for Quintus 1 (130mm)

Jig & Fixture,CL5® 5-Axis Workholding,Quick-Change

Save to My Project

What is this?

Product Information

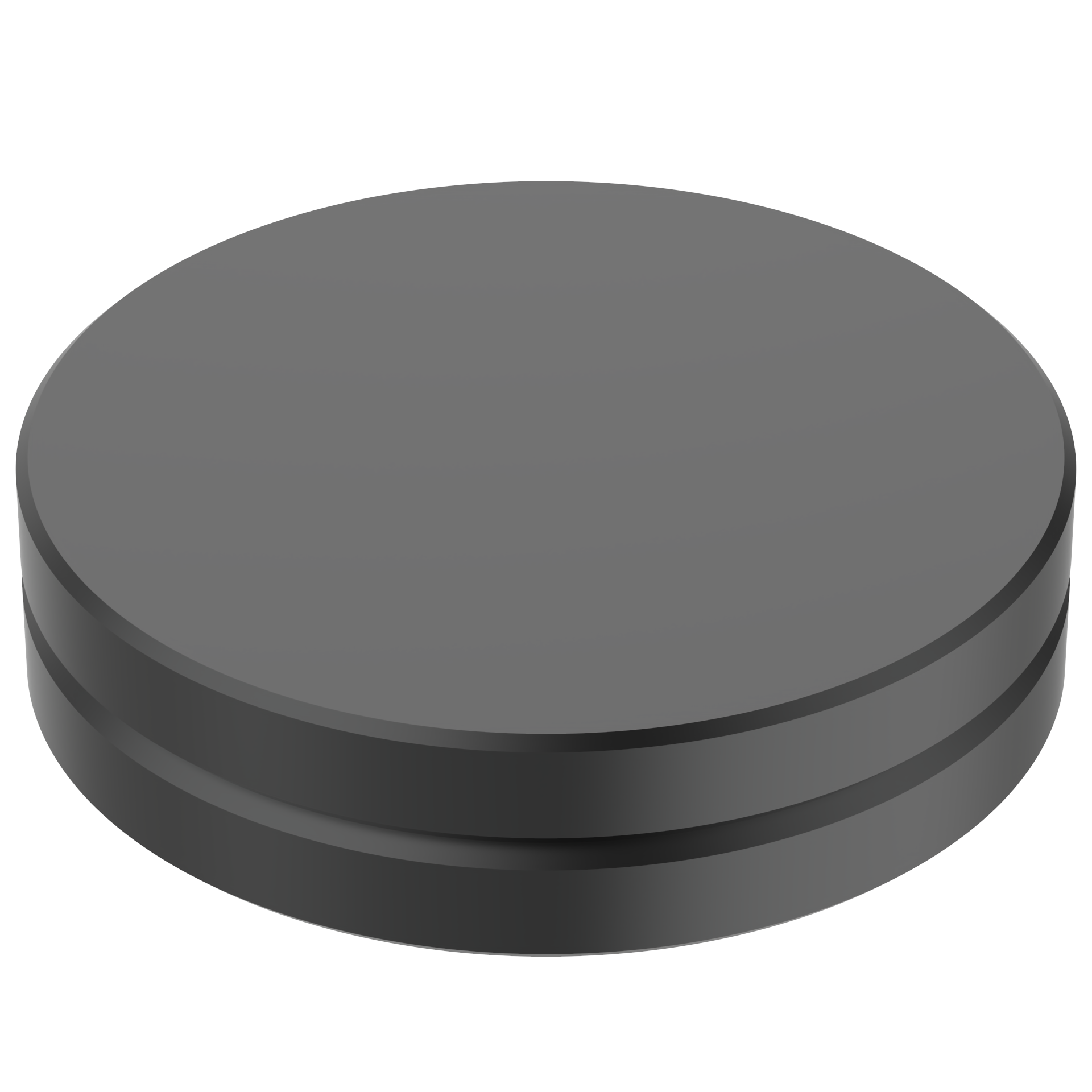

Round Fixture Plates for Quintus 1 (130mm)

These Quintus Fixture Plates are designed to mount on a Quintus 1 Quick-Change Riser with accurate center location. A Quintus 1 Riser provides quick-change fixturing benefits and additional height for spindle clearance on rotary tables 250mm diameter and larger. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Plate Options

130mm

Blank

Mounting on a Quintus 1 Riser

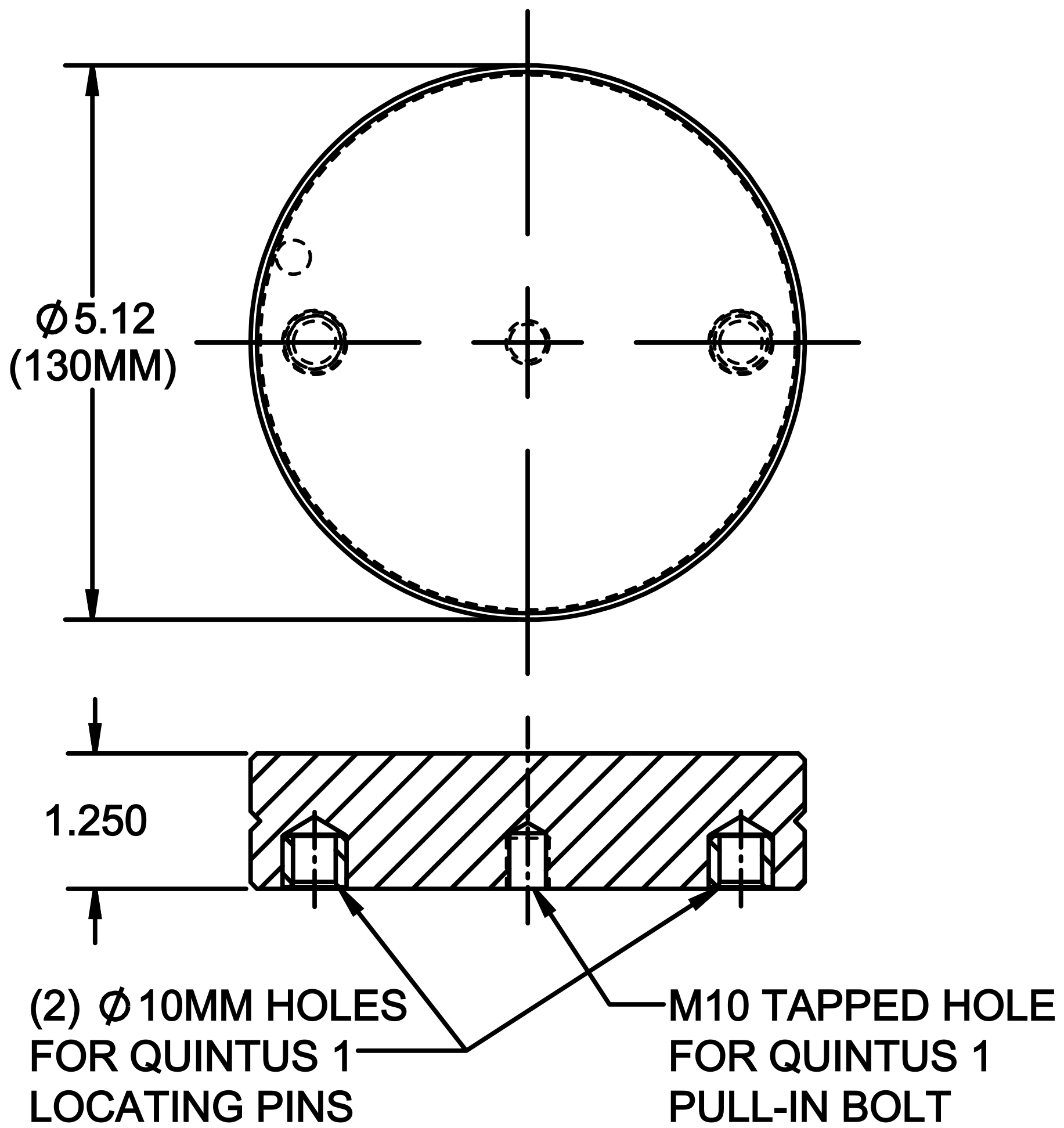

Before using the fixture, install a Quintus 1 pull-down bolt in the fixture plate's M10 bottom center hole (order separately – see Dimensions page for part number). To locate the fixture plate, the Quintus 1 riser utilizes its two integral locating pins, a round pin for zero-point centering and a diamond pin for single-axis centering, which fit into the two 10mm locating holes underneath the plate. Turning the Quintus mechanism exerts 2700 lbs of force on the pull-down bolt.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Carbon Steel	-	Black Oxide	✔	✔
Bushings	High Carbon Steel	Heat Treated	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Round Fixture Plates for Quintus 1 (130mm)

QUANTITY	PART NO.	TYPE	PLATE DIA	MOUNTS ON	WORKHOLDER OPTIONS	WEIGHT (lbs)
	CL-130-00-QRFP	Blank	130mm	Quintus 1	Custom	7.2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Round Fixture Plates for Quintus 1 (130mm)

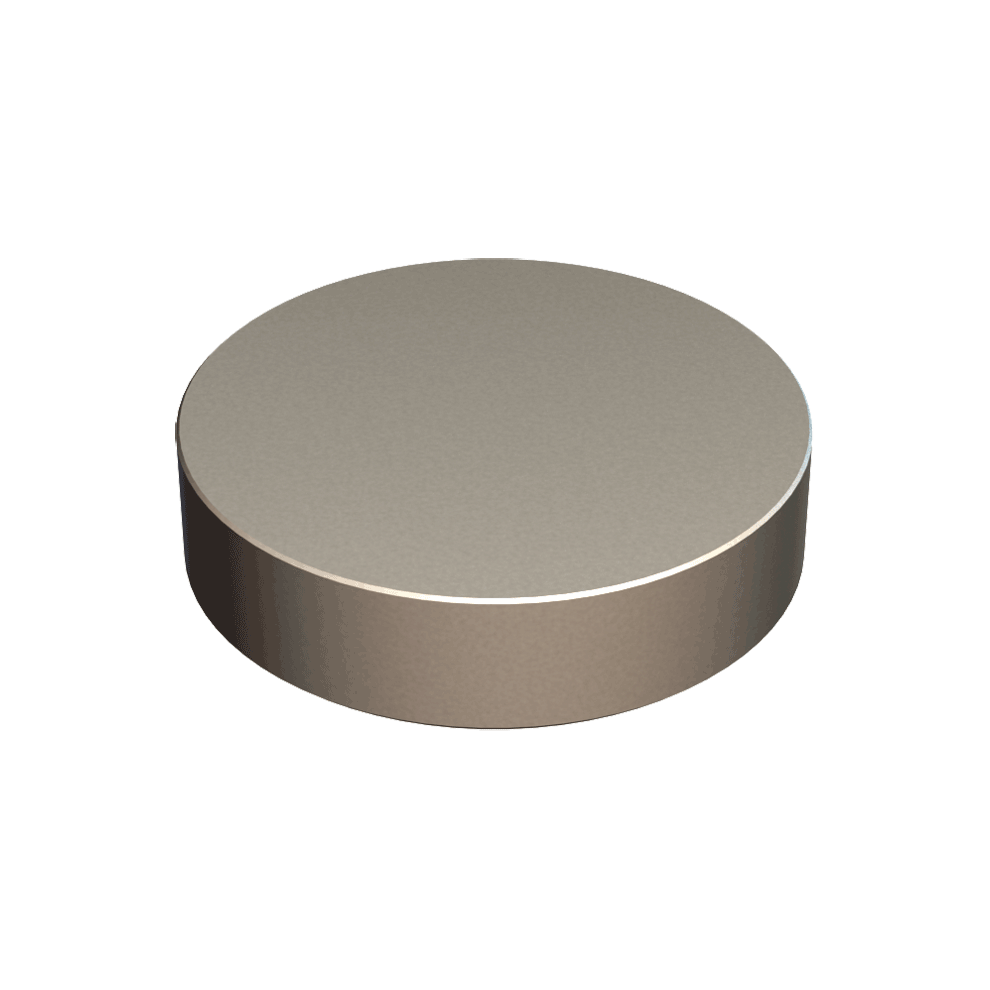

Quintus Pull-Down Bolt Set for Quintus 1

Vise Locating Pins (Round & Diamond)
