Rectangular Fixture Plates for Quintus 1 (150 x 250mm)

Jig & Fixture,CL5® 5-Axis Workholding,Quick-Change

Save to My Project

What is this?

Product Information

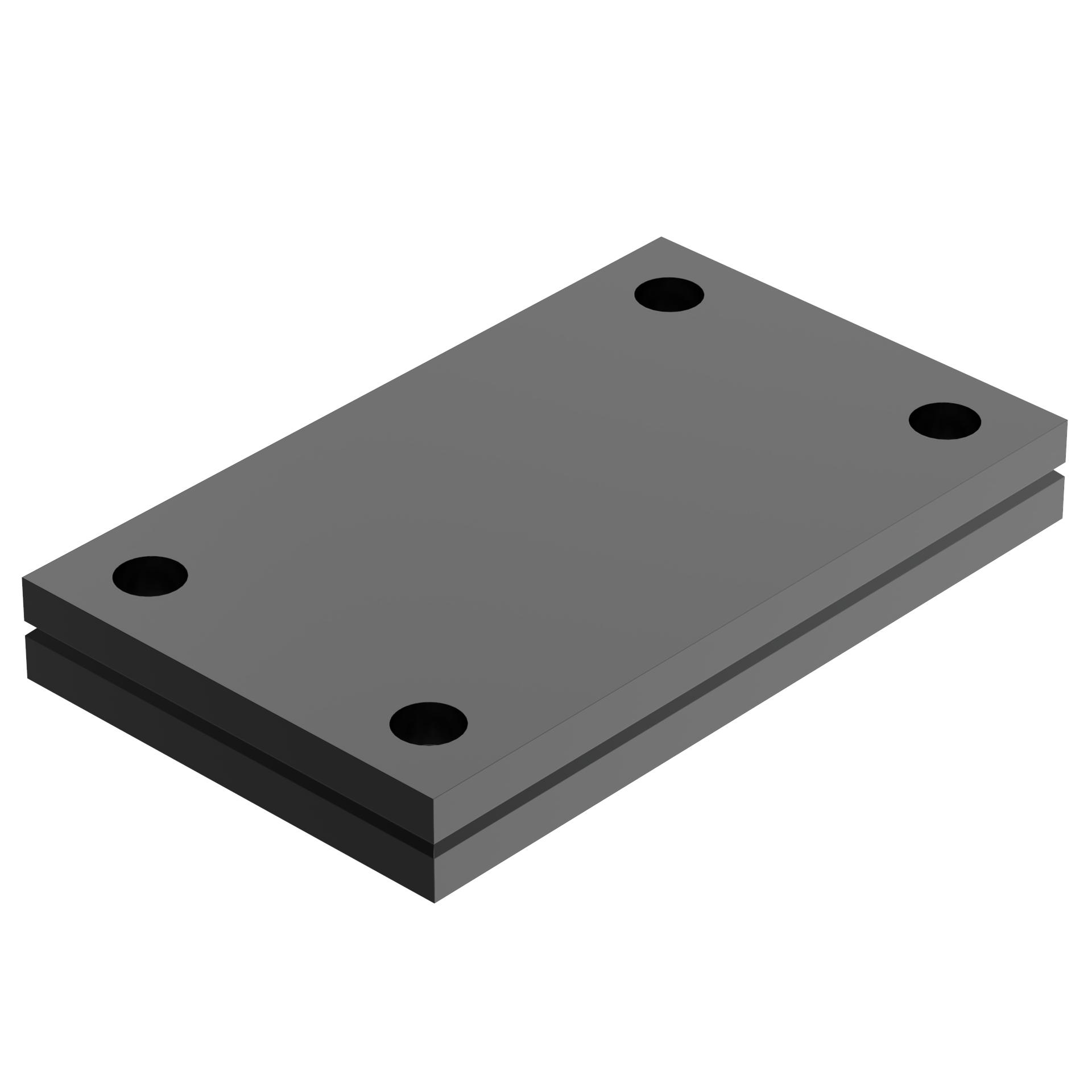

Rectangular Fixture Plates for Quintus 1 (150 x 250mm)

These Quintus Fixture Plates are designed to mount on a Quintus 1 Quick-Change Riser with accurate center location. A Quintus 1 Riser provides quick-change fixturing benefits and additional height for spindle clearance. Choose from the two plate options shown below: Blank or Modular Fixturing. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Plate Options

150 x 250mm

Blank

Mounting on a Quintus 1 Riser

Before using the fixture, install a Quintus 1 pull-down bolt in the fixture plate's M10 bottom center hole (order separately – see Dimensions page for part number). To locate the fixture plate, the Quintus 1 riser utilizes its two integral locating pins, a round pin for zero-point centering and a diamond pin for single-axis centering, which fit into the two 10mm locating holes underneath the plate. Turning the Quintus mechanism exerts 2700 lbs of force on the pull-down bolt.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Carbon Steel	-	Black Oxide	✔	✔
Bushings	High Carbon Steel	Heat Treated	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

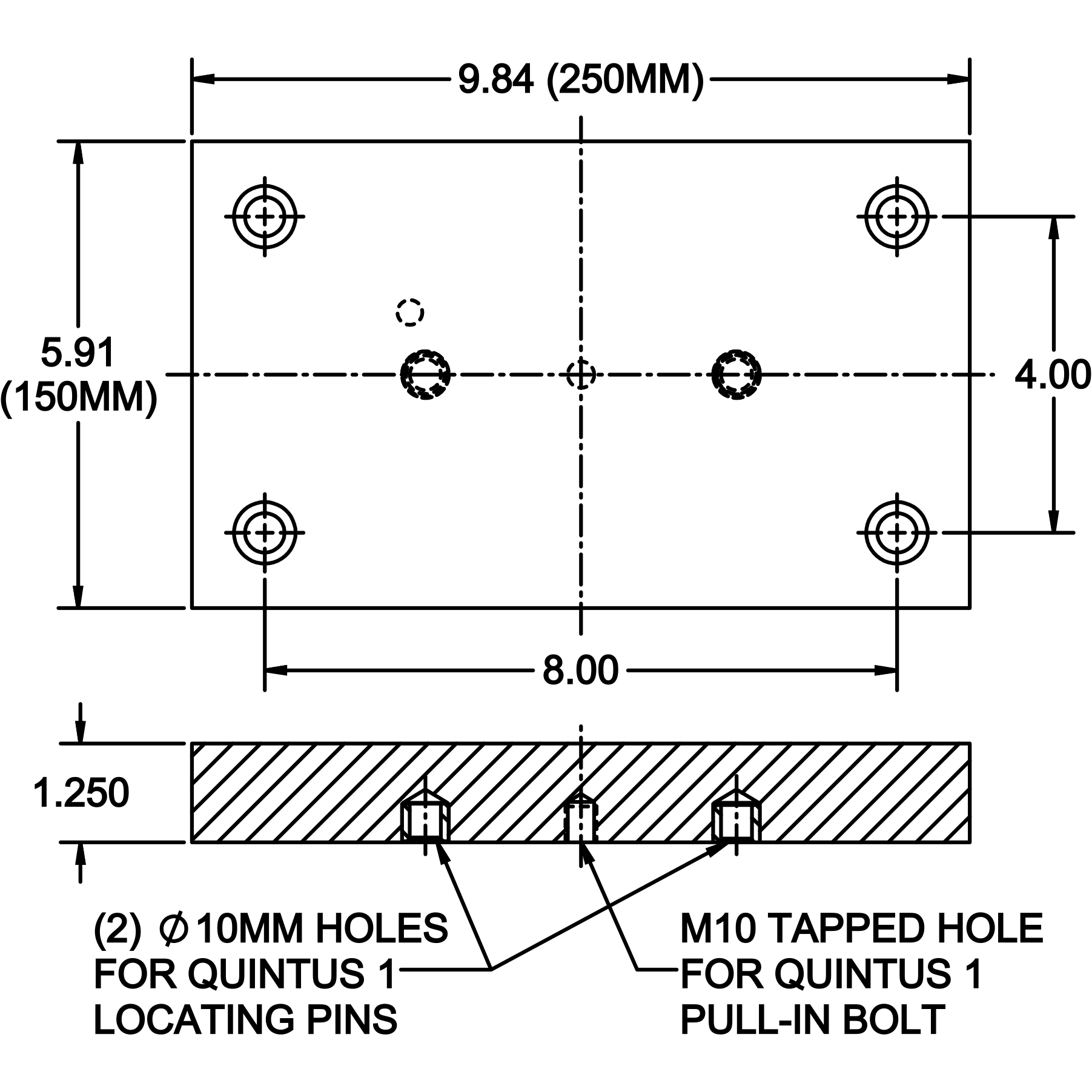

Rectangular Fixture Plates for Quintus 1 (150 x 250mm)

QUANTITY	PART NO.	TYPE	PLATE SIZE	MOUNTS ON	WORKHOLDER OPTIONS	WEIGHT (lbs)
	CL-150250-00-QFP	Blank	150 x 250mm	Quintus 1	Custom	20.1

Check Price & Availability
