V Cast Sections

Jig & Fixture,Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

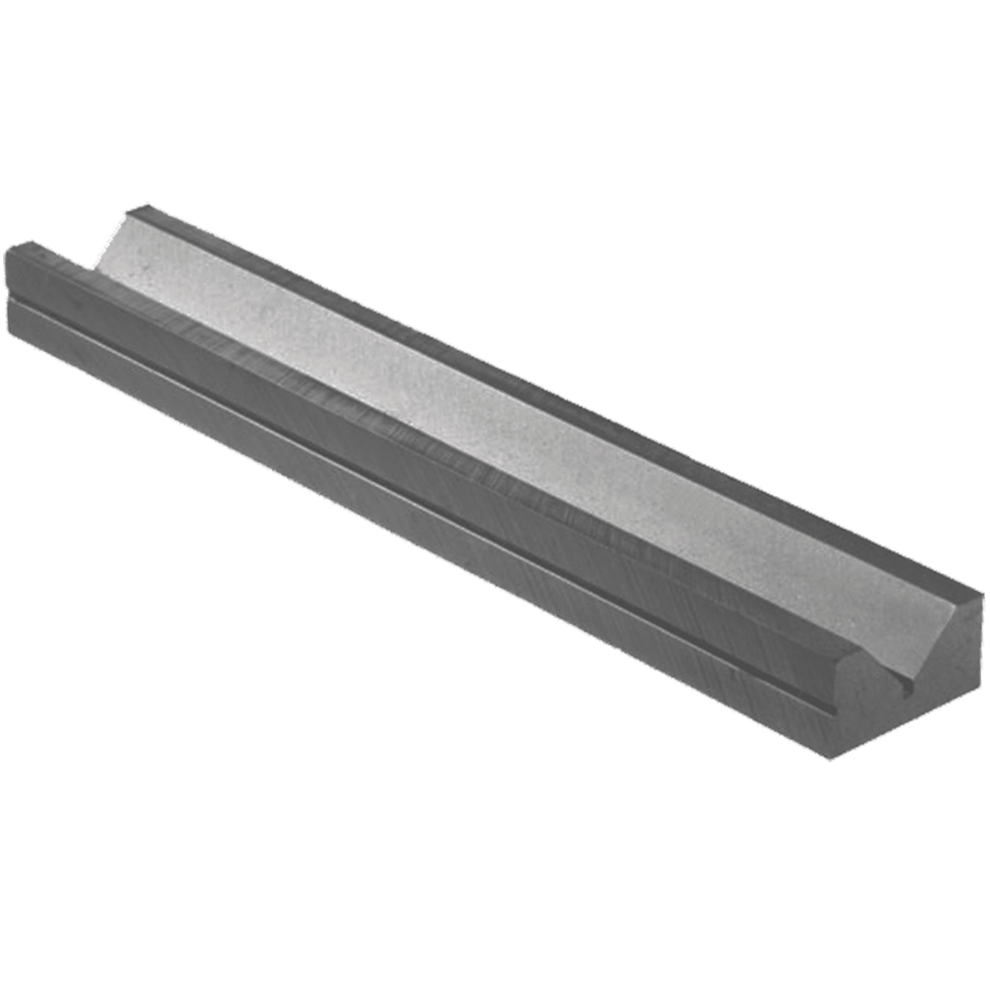

V Cast Sections Part # CL-1-CSV-18.00 Carr Lane Mfg.®

Cast Iron

Cast Sections provide a fast, economical way to make special fixture components. The V Cast Sections shown here, machined from cast iron, are available in three section sizes. These structural elements are machined flat and parallel within .005" per foot, except ends. Section dimensions are held +/-1/32", while length is held -1/16" to +1/8". V Cast Sections are available in full length (18") or 6" length. Custom lengths are available as specials. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Cast iron, ASTM class 40, 40,000-45,000 psi tensile strength	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

V Cast Sections

Full Length

PART NO.	A	B	C	D	LENGTH
CL-1-CSV-18.00	2	1	1-1/4	5/16	18
CL-2-CSV-18.00	3	1-3/4	2	11/16	18
CL-3-CSV-18.00	4	2-1/2	3	7/8	18

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

6" Length

PART NO.	A	B	C	D	LENGTH
CL-1-CSV-6.00	2	1	1-1/4	5/16	6
CL-2-CSV-6.00	3	1-3/4	2	11/16	6
CL-3-CSV-6.00	4	2-1/2	3	7/8	6
