Square Pallet Tooling Plates – Blank (500mm)

Jig & Fixture

Save to My Project

What is this?

Product Information

Square Pallet Tooling Plates – Blank (500mm) Part # CL-500-PTPB Carr Lane Mfg.®

New Item!

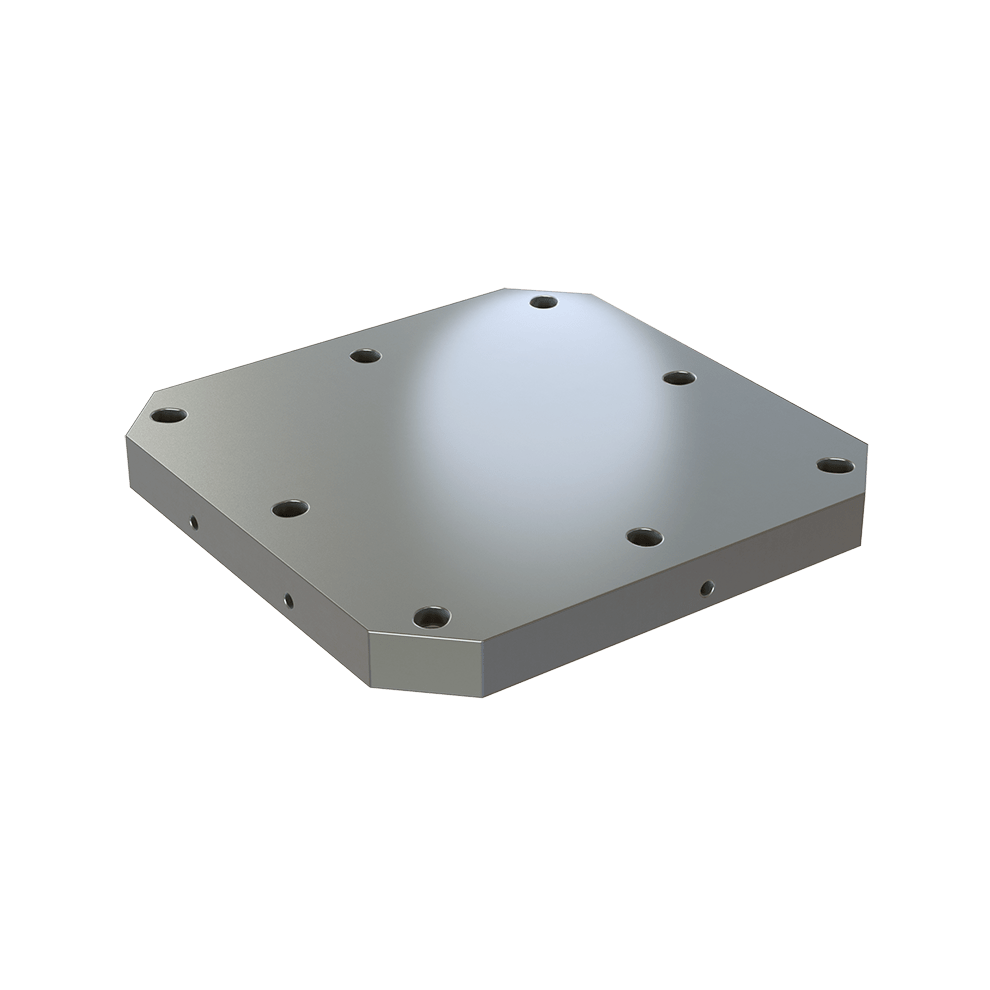

Precision blank tooling plates that are ready to mount on virtually any horizontal-machining-center pallet, reducing tooling cost and lead time considerably. Cast iron material provides superior accuracy, dimensional stability, and vibration dampening. Finish machined to tight tolerances. Universal mounting holes fit almost any inch or metric slot spacing. The tooling plates shown here fit 500mm square pallets.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Mounting

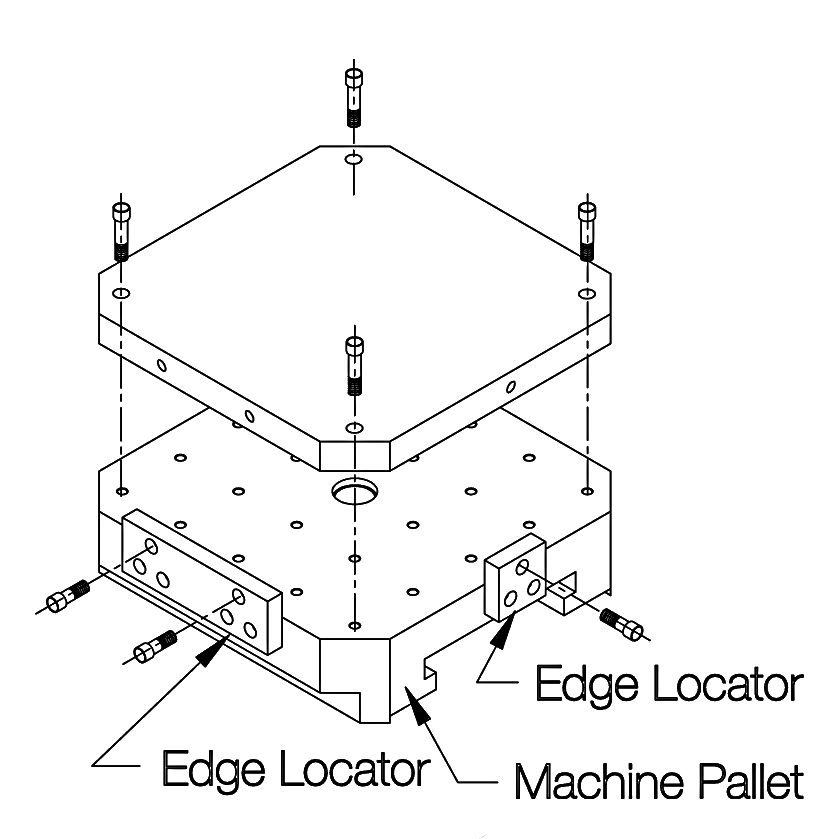

Diagram showcasing the application of Square Pallet Tooling Plates Blank

JIS mounting is the most-common way to locate tooling plates and blocks on a horizontal-machining-center pallet, with two precisely machined reference edges at 90° to each other. The plate or block is first pulled against the pallet's side locators using three socket-head cap screws, then fastened down with four to eight socket-head cap screws, depending on the pallet size.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Gray Cast Iron	-	ASTM Class 45	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Square Pallet Tooling Plates – Blank (500mm)

QUANTITY	PART NO.	B PALLET SIZE NOMINAL	B PALLET SIZE ACTUAL	A THICKNESS NOMINAL	A THICKNESS ACTUAL	C1	C2	D	NO. OF MOUNTING HOLES	WEIGHT (lbs)
	CL-500-PTPB	500mm	19.6850	50mm	1.9685	400mm	16	75mm	8	194

Check Price & Availability
