Rectangular Tooling Plates – Blank (20" x 24")

Jig & Fixture

Save to My Project

What is this?

Product Information

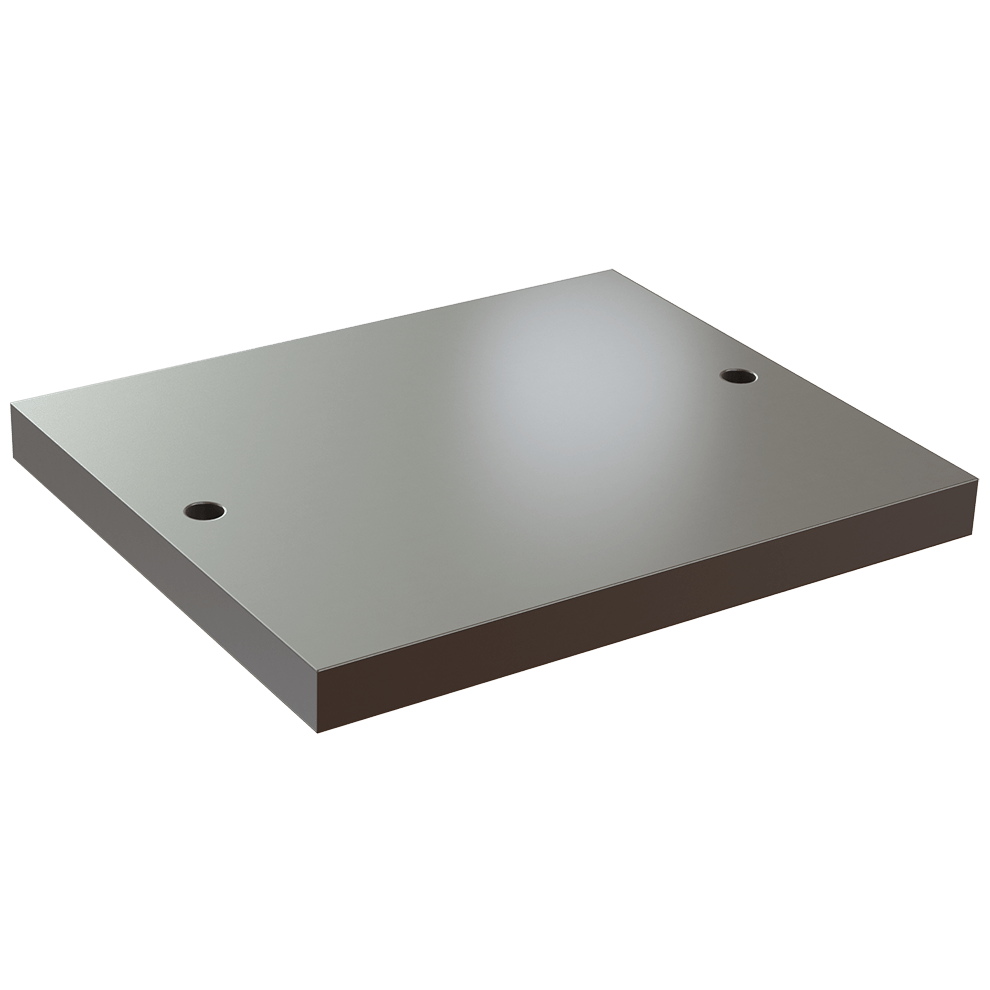

Rectangular Tooling Plates – Blank (20"" x 24"") Part # CL-2024-RTPB Carr Lane Mfg.®

New item!

Precision blank tooling plates that are ready to mount on virtually any milling machine, reducing tooling cost and lead time considerably. Cast iron material, finish machined to tight tolerances. Available in two sizes – with the larger, 20" x 24" size shown here.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Mounting

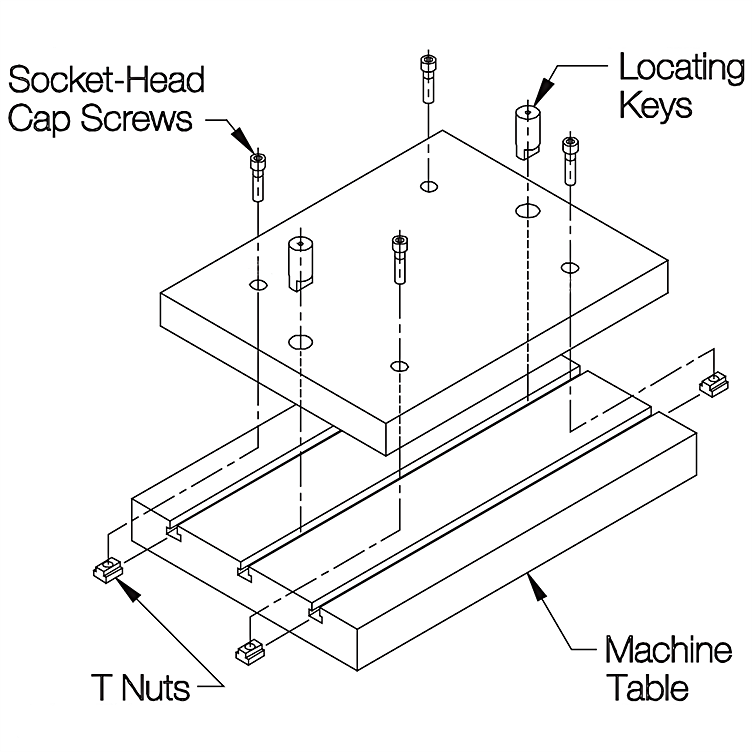

Diagram showcasing the application of Rectangular Tooling Plates Blank 20 X 24

Precision 30mm holes for Locating Keys allow accurate mounting on a T-slotted machine table. Four mounting holes must be drilled by the customer to suit table-slot spacing. See Related Products below for Locating Keys and T Nuts to fit specific table-slot sizes.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Gray Cast Iron	-	ASTM Class 45	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Rectangular Tooling Plates – Blank (20" x 24")

QUANTITY	PART NO.	A NOMINAL	A ACTUAL	B NOMINAL	B ACTUAL	C	WEIGHT (lbs)
	CL-2024-RTPB	20	19.69	24	23.62	20	235

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Rectangular Tooling Plates – Blank (20" x 24")

Rectangular Tooling Plates – Modular, Standard 1/2" (20" x 24")

Locating Keys

T Nuts

Socket Head Cap Screws
