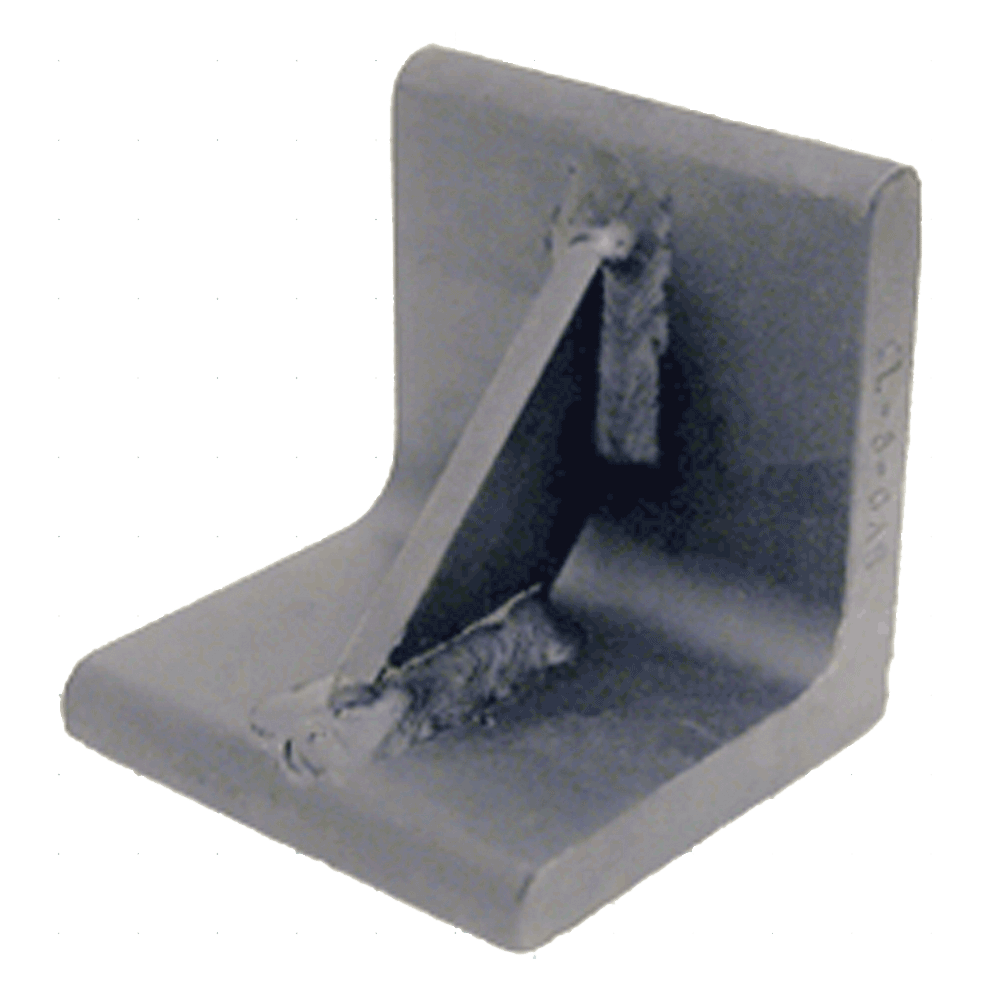

Gusseted Angle Brackets

Jig & Fixture

 Save to My Project
What is this?

Steel

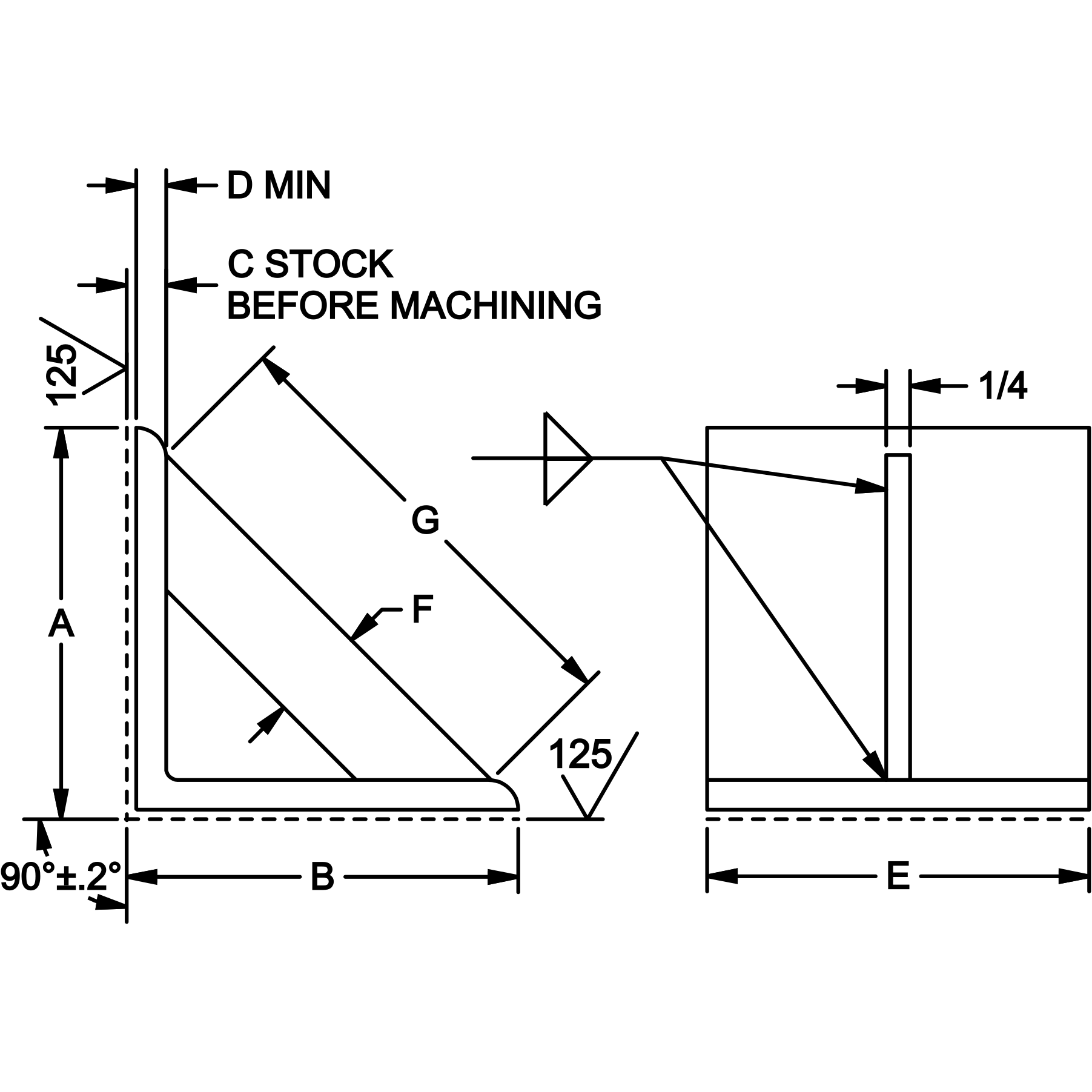

QUANTITY PART NO. A B C D E F G
CL-3A-GAB 3 2 3/8 5/16 2 7/8 2-3/4
CL-3B-GAB 3 2 3/8 5/16 3 7/8 2-3/4
CL-1-GAB 3 3 3/8 5/16 2 1 3-7/16
CL-2-GAB 3 3 3/8 5/16 3 1 3-7/16
CL-3-GAB 3 3 3/8 5/16 4 1 3-7/16
CL-4-GAB 4 4 3/8 5/16 3 1 4-13/16
CL-5-GAB 4 4 3/8 5/16 4 1 4-13/16
CL-7-GAB 3 3 1/2 7/16 2 1 3-1/4
CL-8-GAB 3 3 1/2 7/16 3 1 3-1/4
CL-9-GAB 3 3 1/2 7/16 4 1 3-1/4
CL-7A-GAB 4 3 1/2 7/16 2 1-1/4 3-7/8
CL-7B-GAB 4 3 1/2 7/16 3 1-1/4 3-7/8
CL-10-GAB 4 4 1/2 7/16 3 1 4-5/8
CL-11-GAB 4 4 1/2 7/16 4 1 4-5/8
CL-12-GAB 4 4 1/2 7/16 5 1 4-5/8
CL-13-GAB 6 4 1/2 7/16 4 1-1/2 6-1/4
CL-14-GAB 6 4 1/2 7/16 5 1-1/2 6-1/4
CL-15-GAB 6 4 1/2 7/16 6 1-1/2 6-1/4
CL-16-GAB 6 6 1/2 7/16 4 1-1/2 7-7/16
CL-17-GAB 6 6 1/2 7/16 5 1-1/2 7-7/16
CL-18-GAB 6 6 1/2 7/16 6 1-1/2 7-7/16
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Aluminum
QUANTITY PART NO. A B C D E F G
CL-8-GAB-A 3 3 1/2 7/16 3 1 3-1/4
CL-10-GAB-A 4 4 1/2 7/16 3 1 4-5/8
CL-11-GAB-A 4 4 1/2 7/16 4 1 4-5/8
CL-13-GAB-A 6 4 1/2 7/16 4 1-1/2 6-1/4
CL-15-GAB-A 6 4 1/2 7/16 6 1-1/2 6-1/4
CL-18-GAB-A 6 6 1/2 7/16 6 1-1/2 7-7/16
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
