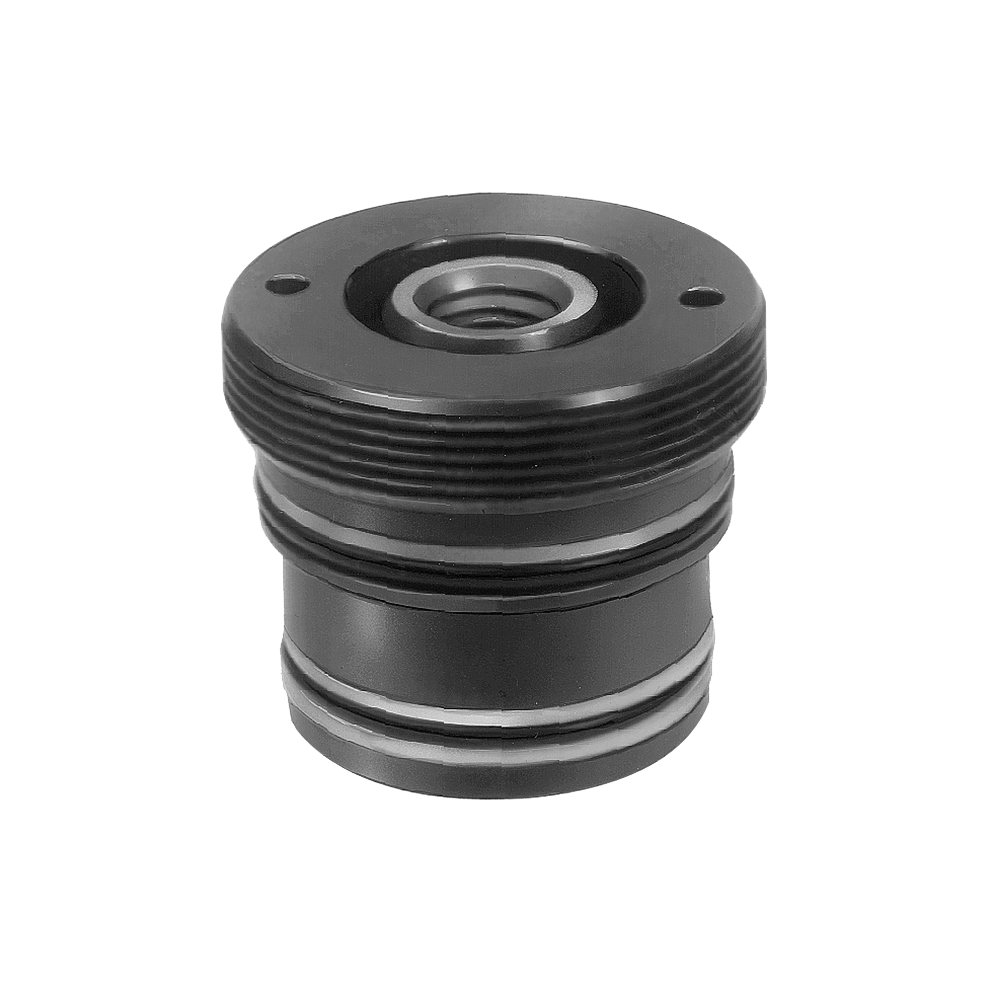

ROEMHELD Threaded-Body Clamping Modules, B1.480 Part # CLR-1574-811 Carr Lane Mfg.®

7250 psi max

Single and Double Acting

These pull clamps can be used to make a combination locator and internal clamp by adding a custom locating pin. Installation steps include machining a 55mm counterbored hole to be used as a reference diameter to accept custom locators. The plunger has an extended key at the bottom to act as an anti-rotation device, for applications where plunger orientation is important to provide machining clearance. These versatile clamping modules provide considerable force in a small size, and can be placed very close together. Manifold mounting allows an extremely compact, space-saving design.

Available in one size, which can be used as single acting or double acting. Pull force at 7250 psi:

5500 Lbs

Application Information

The plunger has an extended key at the bottom to act as an anti-rotation device, for applications where plunger orientation is important to provide machining clearance.

Documents

B1.480

Data Sheet

Clamping Action

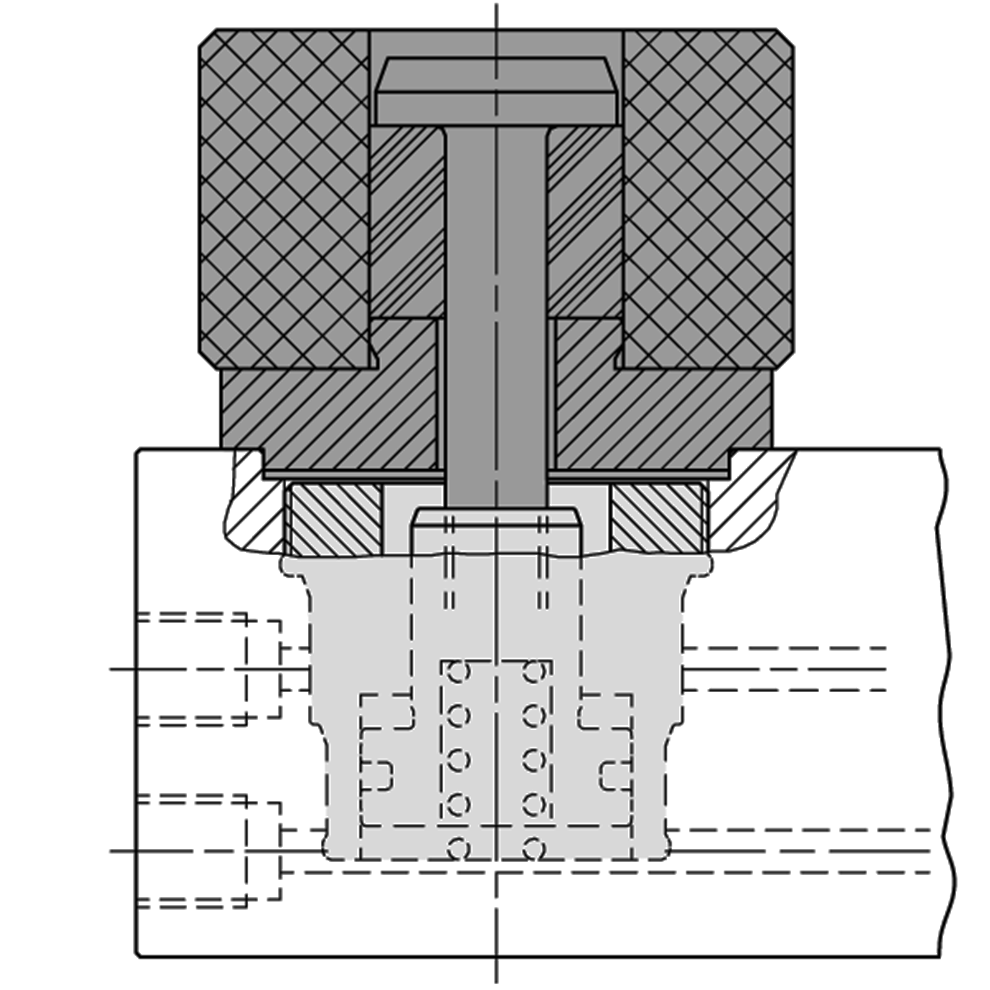

Diagram showcasing the application of Roemheld Threaded Body Clamping Modules B1480

Applying fluid pressure pushes the piston down, pulling down a drawbar inserted in the center hole. Spring return (single acting), with the option to add a return pressure line to use as double acting.

Mounting & Fluid Supply

Clamp should be recessed into the fixture as shown in the installation drawings. Carefully follow hole-preparation instructions in the drawings. The overall depth of the bored hole must be strictly observed, because the bottom acts as a stop (to make the short length of this unit possible). The insertion chamfer and the entrances of the fluid passages into the bored hole must be rounded to avoid damaging the seals during clamp installation. Fluid passages must be drilled exactly as shown in the drawings. Do not use NPT fittings.

Clamping with a C Washer

Clamping can be accomplished using a drawbar and C Washer. This method provides maximum clamping force, but has some disadvantages. The C Washer is a loose part that must be handled each time a workpiece is loaded. Also, the C Washer can interfere with machining operations on the top side of the workpiece.

Clamping with a Polyurethane Spring

Clamping can also be accomplished using a drawbar to compress a polyurethane spring that is slightly smaller than the inside diameter, to apply clamping force from the inside. Note: this method still requires a locating pin to provide location for the inside diameter. Clamping force depends entirely on the spring material, with the plunger going through its full 6mm stroke.

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ITEM	MATERIAL	HEAT TREAT	FINISH
Body	Steel	-	Black Oxide
Plunger	Steel	-	Black Oxide
