ROEMHELD Eccentric Bore Clamps, B1.486

ROEMHELD Power Workholding,ID & Bore Clamps

Save to My Project

What is this?

Product Information

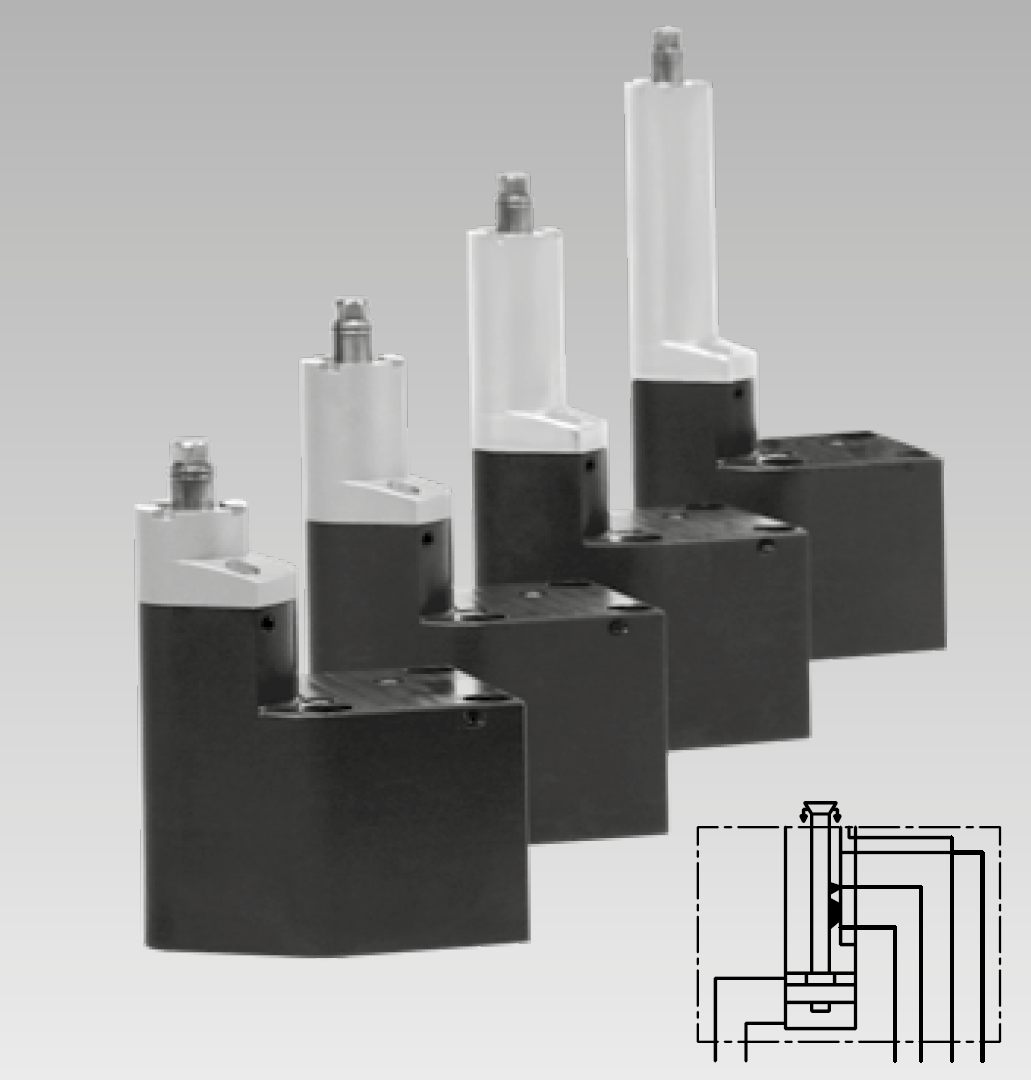

ROEMHELD Eccentric Bore Clamps, B1.486 Part # CLR-BCE1080-H085SZ Carr Lane Mfg.®

The double-acting hydraulic cylinder operates a tie bolt that is eccentrically arranged at the edge of the housing in which the clamping bolt is safely engaged. This conical clamping bolt expands the hardened clamping bushing so that its points penetrate the bore surface in the workpiece with a positive fit (see “Clamping principle”). Clamping bolt and clamping bushing can be exchanged very quickly after loosening the workpiece support. The bore clamp can remain on the fixture and no hydraulic oil escapes. All functions can be monitored pneumatically. The use of the connection for positive air pressure protection prevents liquids and swarf from entering the clamping bushing.

Application Information

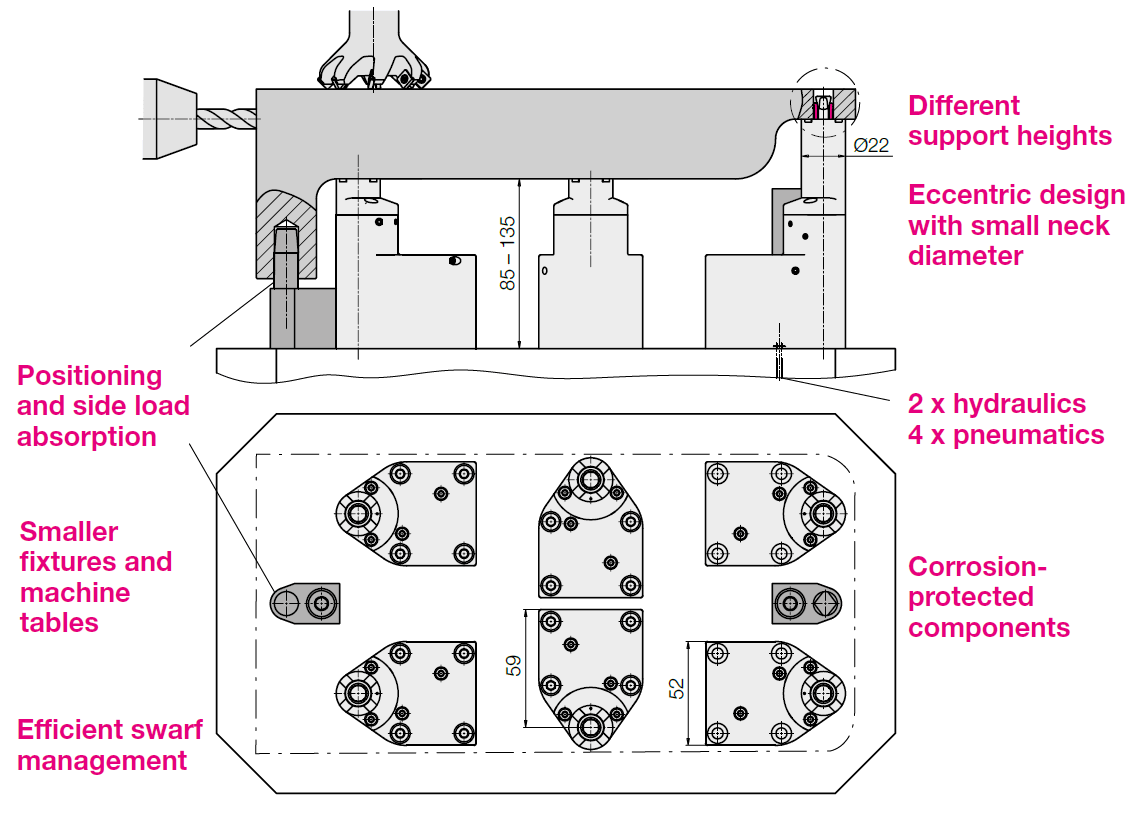

The hydraulically-operated bore clamp is particularly suitable for clamping in workpieces with smooth bore holes in the support surface ranging from 8 to 12 mm in diameter. The workpiece is placed directly onto the hardened supports of the bore clamp and is not deformed during clamping. Since clamping is effected within the bore, the remaining surfaces are free for machining on 5 sides.

Documents

B1.486

B1.486 Data Sheet

ROEMHELD Eccentric Bore Clamps, B1.486

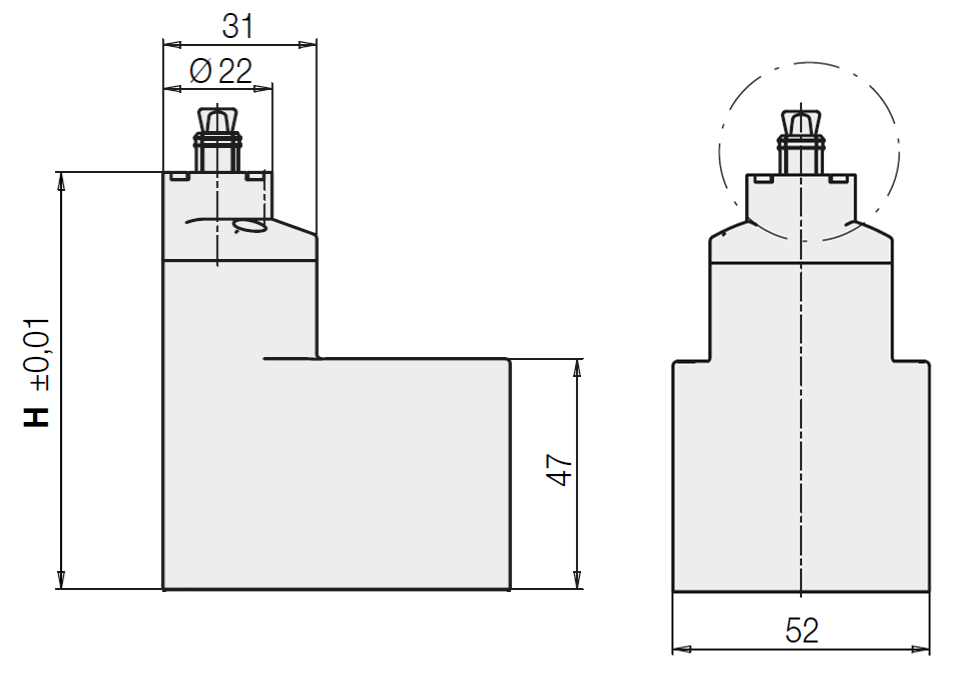

QUANTITY	PART NUMBER	CLAMPING BORE DIAMETER	CLAMPING RANGE DIAMETER	SUPPORT HEIGHT (H)	MAX CLAMPING FORCE
	CLR-BCE1080-H085SZ	8mm	7.7-8.7 mm	85mm	3.3 kN
	CLR-BCE1080-H095SZ	8mm	7.7-8.7 mm	95mm	3.3 kN
	CLR-BCE1080-H105SZ	8mm	7.7-8.7 mm	105mm	3.3 kN
	CLR-BCE1080-H115SZ	8mm	7.7-8.7 mm	115mm	3.3 kN
	CLR-BCE1080-H125SZ	8mm	7.7-8.7 mm	125mm	3.3 kN
	CLR-BCE1080-H135SZ	8mm	7.7-8.7 mm	135mm	3.3 kN
	CLR-BCE1090-H085SZ	9mm	8.7-9.7 mm	85mm	3.3 kN
	CLR-BCE1090-H095SZ	9mm	8.7-9.7 mm	95mm	3.3 kN
	CLR-BCE1090-H105SZ	9mm	8.7-9.7 mm	105mm	3.3 kN
	CLR-BCE1090-H115SZ	9mm	8.7-9.7 mm	115mm	3.3 kN
	CLR-BCE1090-H125SZ	9mm	8.7-9.7 mm	125mm	3.3 kN
	CLR-BCE1090-H135SZ	9mm	8.7-9.7 mm	135mm	3.3 kN
	CLR-BCE1100-H085SZ	10mm	9.7-10.7mm	85mm	5 kN
	CLR-BCE1100-H095SZ	10mm	9.7-10.7mm	95mm	5 kN
	CLR-BCE1100-H105SZ	10mm	9.7-10.7mm	105mm	5 kN
	CLR-BCE1100-H115SZ	10mm	9.7-10.7mm	115mm	5 kN
	CLR-BCE1100-H125SZ	10mm	9.7-10.7mm	125mm	5 kN
	CLR-BCE1100-H135SZ	10mm	9.7-10.7mm	135mm	5 kN
	CLR-BCE1110-H085SZ	11mm	10.7-11.7mm	85mm	5 kN
	CLR-BCE1110-H095SZ	11mm	10.7-11.7mm	95mm	5 kN
	CLR-BCE1110-H105SZ	11mm	10.7-11.7mm	105mm	5 kN
	CLR-BCE1110-H115SZ	11mm	10.7-11.7mm	115mm	5 kN
	CLR-BCE1110-H125SZ	11mm	10.7-11.7mm	125mm	5 kN
	CLR-BCE1110-H135SZ	11mm	10.7-11.7mm	135mm	5 kN
	CLR-BCE1120-H085SZ	12mm	11.7-12.7mm	85mm	5 kN
	CLR-BCE1120-H095SZ	12mm	11.7-12.7mm	95mm	5 kN
	CLR-BCE1120-H105SZ	12mm	11.7-12.7mm	105mm	5 kN
	CLR-BCE1120-H115SZ	12mm	11.7-12.7mm	115mm	5 kN
	CLR-BCE1120-H125SZ	12mm	11.7-12.7mm	125mm	5 kN
