Swivel Hoist Rings – Stainless Steel (Long Ring)

Hoist Rings

Save to My Project

What is this?

Product Information

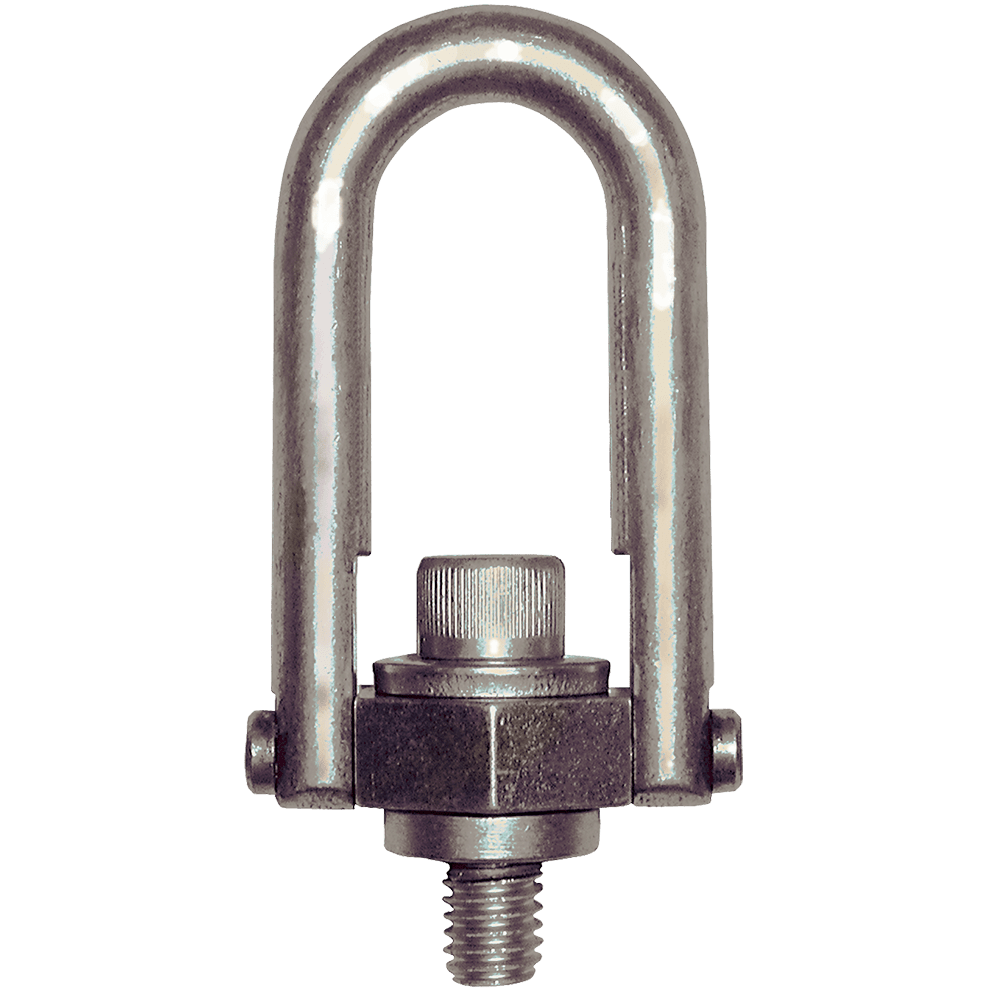

Swivel Hoist Rings – Stainless Steel (Long Ring) Part # CL-29325-SHR-S Carr Lane Mfg.®

Long-ring stainless steel version of the original safety-engineered hoist ring. The longer ring provides extra reach and allows using larger lifting hooks. Stainless steel is useful for corrosive, cryogenic, or elevated-temperature environments. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Safety factor = 5:1. Available in load capacities up to 5000 lbs, many with a choice of bolt length. Long-ring stainless steel hoist rings conform to ASME B30.26. Patent no. 3,297,293, and 4,705,422. Made in USA.

Technical Information

Please note that stainless steel hoist rings have a load rating equal to 50% of the alloy steel version.

Application Information

The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.

Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Swivel Hoist Rings - Stainless Steel (Long Ring)	300-Series Stainless Steel	-	Passivated

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Swivel Hoist Rings – Stainless Steel (Long Ring)

Inch

QUANTITY	PART NO.	LOAD RATING (lbs)	A THREAD	B ±.12	C	D	E DIA	F	G	H	J	K	L	N DIA	P	INSTALLATION TORQUE (ft-lbs)
	CL-29322-SHR-S	1250	1/2-13	.78	1.22	6.72	3/4	.88	3.25	1.99	3.52	1.72	6.19	1.50	.16	14
	CL-29323-SHR-S	1250	1/2-13	1.03	1.22	6.72	3/4	.88	3.25	1.99	3.52	1.72	6.19	1.50	.16	14
	CL-29324-SHR-S	1250	1/2-13	1.28	1.22	6.72	3/4	.88	3.25	1.99	3.52	1.72	6.19	1.50	.16	14
	CL-29320-SHR-S	2000	5/8-11	1.03	1.22	6.72	3/4	.88	3.25	1.99	3.52	1.85	6.19	1.50	.16	30
	CL-29321-SHR-S	2000	5/8-11	1.28	1.22	6.72	3/4	.88	3.25	1.99	3.52	1.85	6.19	1.50	.16	30
	CL-29325-SHR-S	2500	3/4-10	1.03	1.22	6.72	3/4	.88	3.25	1.99	3.52	1.97	6.19	1.50	.16	50
	CL-29327-SHR-S	2500	3/4-10	1.53	1.22	6.72	3/4	.88	3.25	1.99	3.52	1.97	6.19	1.50	.16	50
	CL-29329-SHR-S	3500	3/4-10	1.04	1.71	8.11	1	1.40	4.80	3.00	5.14	2.46	7.38	2.37	.24	50
	CL-29330-SHR-S	3500	3/4-10	1.54	1.71	8.11	1	1.40	4.80	3.00	5.14	2.46	7.38	2.37	.24	50
	CL-29328-SHR-S	4000	7/8-9	1.04	1.71	8.11	1	1.40	4.80	3.00	5.14	2.59	7.38	2.37	.24	80
	CL-29331-SHR-S	5000	1"-8	1.29	1.71	8.11	1	1.40	4.80	3.00	5.14	2.71	7.38	2.37	.24	115
	CL-29332-SHR-S	5000	1"-8	1.54	1.71	8.11	1	1.40	4.80	3.00	5.14	2.71	7.38	2.37	.24	115
	CL-29333-SHR-S	5000	1"-8	2.29	1.71	8.11	1	1.40	4.80	3.00	5.14	2.71	7.38	2.37	.24	115

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	LOAD RATING (kg)	A THREAD	THREAD PITCH (mm)	B ±3 (mm)	C (mm)	D (mm)	E DIA (mm)	F (mm)	G (mm)	H (mm)	J (mm)	K (mm)	L (mm)	N DIA (mm)	P (mm)	INSTALLATION TORQUE (Nm)
	CLM-29814-SHR-S	525	M12	1.75	19	31	171	19	22	83	51	89	43	157	38	4	19
	CLM-29818-SHR-S	950	M16	2	24	31	171	19	22	83	51	89	47	157	38	4	41
	CLM-29821-SHR-S	1100	M20	2.5	30	31	171	19	22	83	51	89	51	157	38	4	68
	CLM-29823-SHR-S	1500	M20	2.5	29	43	206	25.5	36	121	76	131	64	187	60	6	68
	CLM-29826-SHR-S	2100	M24	3	34	43	206	25.5	36	121	76	131	67	187	60	6	156
	Please contact factory	2250	M30	3.5	54	43	206	25.5	36	121	76	131	73	187	60	6	320
