Safety Hoist Rings

Hoist Rings

Save to My Project

What is this?

Product Information

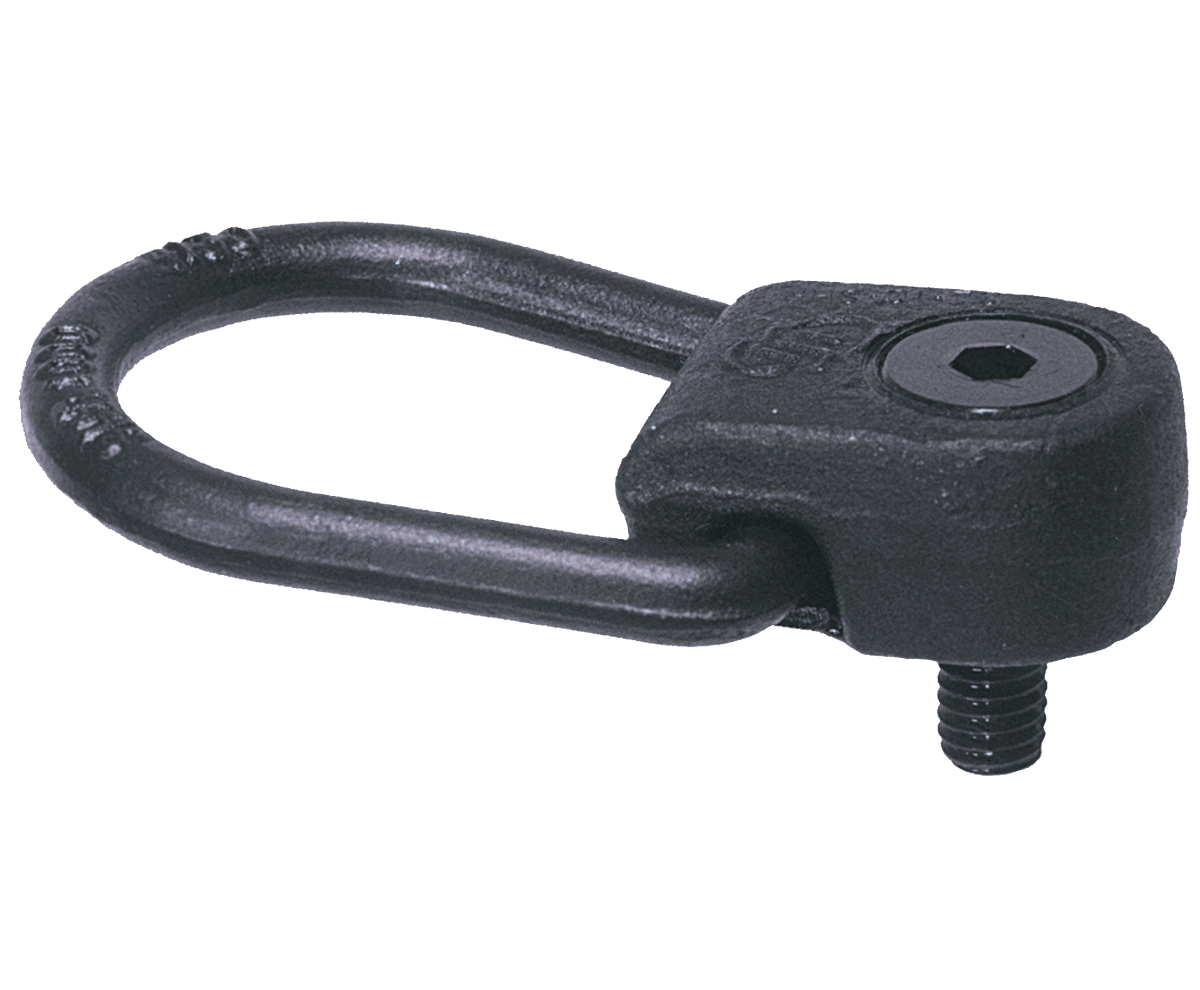

Safety Hoist Rings Part # UT7141A-1 Carr Lane Mfg.®

Forged base rotates 360° while the solid-loop forged ring pivots 180°, to allow lifting from any direction. Safety factor = 5:1. High-strength shoulder screw furnished. Available with inch or metric threads in load capacities up to 2500 lbs. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Hoist Ring Technical Information
Hoist Ring Safety Precautions
Types of Hoist Rings

Application Information

Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely.

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Safety Hoist Rings
ITEM	MATERIAL	HEAT TREAT	FINISH
Base	Forged 1045 Steel	-	Black Oxide finish
Ring	Forged 4130 Steel	Magnafluxed per ASTM E-1444	Black Oxide finish
Screw	Alloy Steel	Heat Treated	Black Oxide finish

Safety Hoist Rings

Inch

QUANTITY	PART NO.	LOAD RATING (lbs)	A	B	C	D	F	G	H DIA	J THREAD	K	R	INSTALLATION TORQUE (ft-lbs)	REPLACEMENT SHOULDER SCREW
	CL-10-SHR	1000	1-1/8	5/8	1-1/2	5/8	1-1/4	7/8	5/16	3/8-16	5/8	13/16	7-10	CL-10-SHRB
	CL-25-SHR	2500	1-5/8	7/8	1-7/8	7/8	1-3/4	1-5/16	7/16	5/8-11	7/8	1-1/8	42-50	CL-25-SHRB
