Heavy-Duty® Weld-Mount Swivel Hoist Rings

Hoist Rings

Save to My Project

What is this?

Product Information

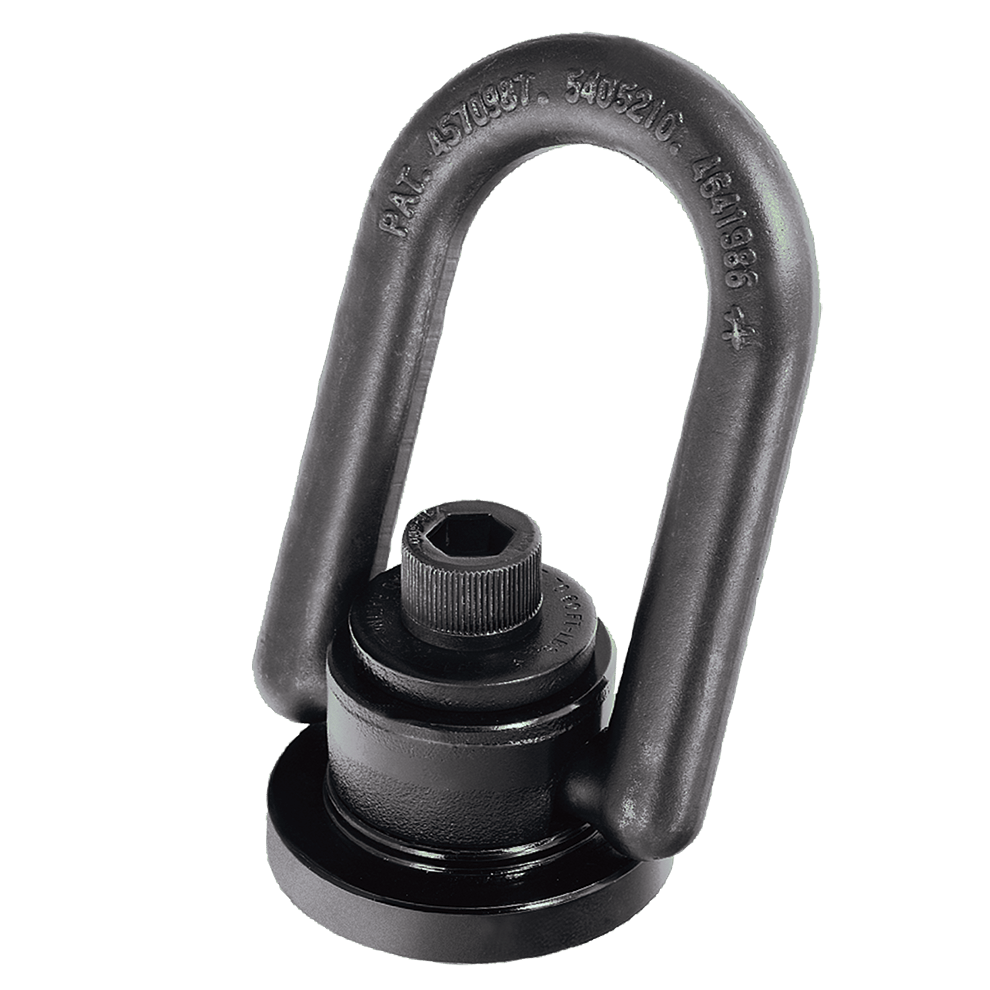

Heavy-Duty® Weld-Mount Swivel Hoist Rings Part # CL-36645-SHR Carr Lane Mfg.®

These Heavy-Duty® Swivel Hoist Rings are mounted by welding. Forged alloy-steel ring pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Safety factor = 5:1. Available with inch threads in load capacities up to 24,000 lbs. Patent no. 4,570,987, 4,641,986, 5,405,210, and other patents pending. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Hoist Ring Technical Information
Hoist Ring Safety Precautions
Types of Hoist Rings

Installation

Weld around the entire perimeter of the base (certified welding). Always install so that the hoist ring can pivot and swivel freely.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Heavy-Duty® Weld-Mount Swivel Hoist Rings	4140 Steel	Heat Treated	Black Oxide finish (Cadmium Plating available as a special)

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Heavy-Duty® Weld-Mount Swivel Hoist Rings

Inch

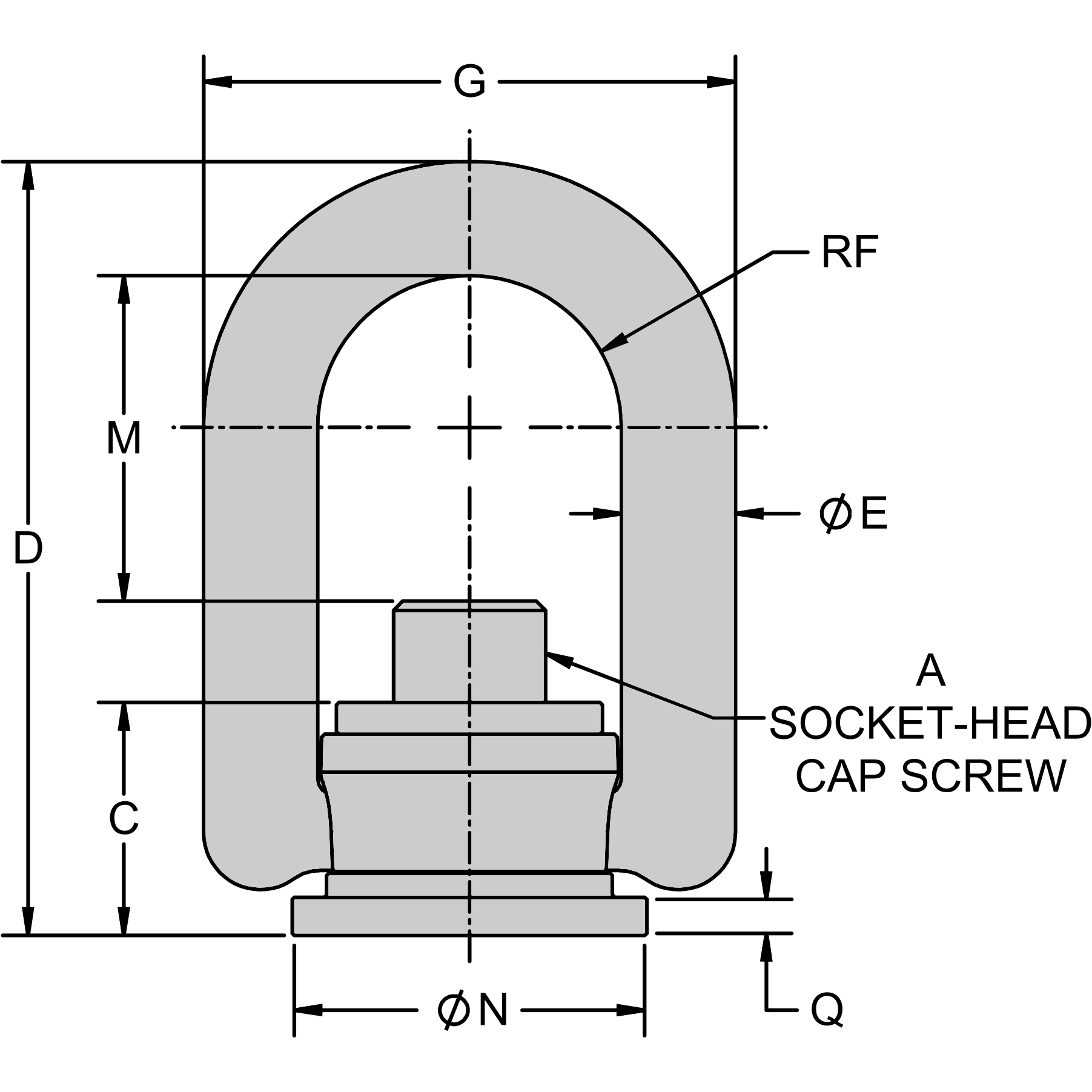

PART NO.	LOAD RATING (lbs)	A THREAD	C	D	E DIA	F	G	M	N DIA	Q
CL-36640-SHR	5000	5/8-11	1.64	5.46	.75	1.00	3.50	2.44	2.45	1/4
CL-36645-SHR	10000	1"-8	2.31	7.64	1.00	1.50	5.25	3.20	3.50	3/8
CL-36650-SHR	24000	1-1/4"-7	3.07	9.46	1.25	2.00	6.75	3.76	4.38	1/2
