Heavy-Duty® Swivel Lift Plates

Hoist Rings

Save to My Project

What is this?

Product Information

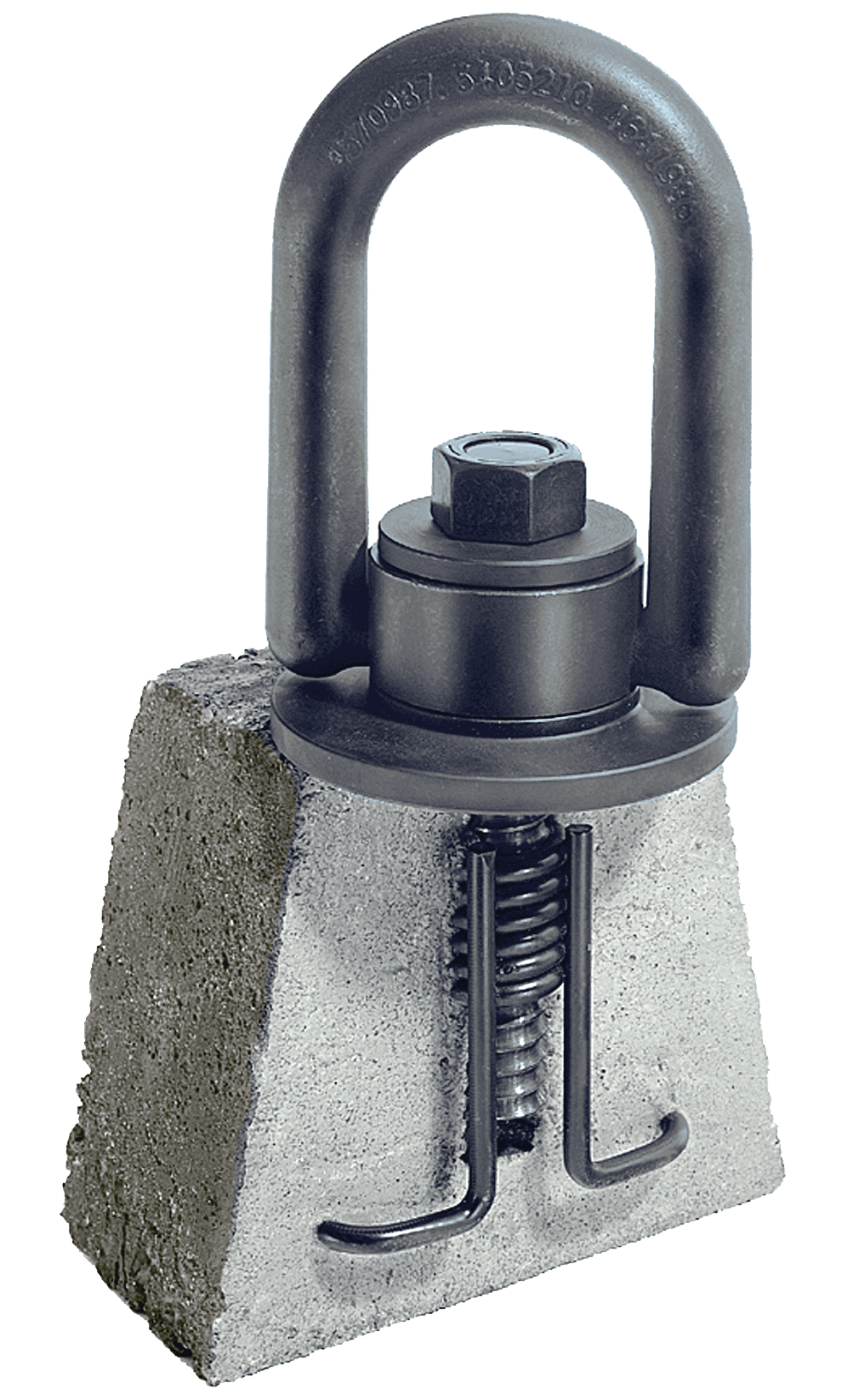

Heavy-Duty® Swivel Lift Plates Part # CL-36615-SHR Carr Lane Mfg.®

These Heavy-Duty® Swivel Hoist Rings have a center through-hole instead of a bolt, for mounting with a custom anchoring system. Forged alloy-steel ring pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Safety factor = 5:1. Available in load capacities up to 24,000 lbs. Patent no. 4,570,987, 4,641,986, 5,405,210, and other patents pending. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Hoist Ring Technical Information
Hoist Ring Safety Precautions
Types of Hoist Rings

Rated load capacity applies to the hoist-ring assembly only. Workpiece material must be capable of supporting the applicable weight.

Installation

Rated load capacity is based on using a bolt or stud with 180,000 psi ultimate tensile strength. If a bolt with lower strength is used, or if the workpiece anchor material is incapable of supporting the weight, then rated load capacity must be reduced accordingly. Always install so that the hoist ring can pivot and swivel freely.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Heavy-Duty® Swivel Lift Plates	Alloy Steel	Heat Treated	Black Oxide finish (Cadmium Plating available as a special)

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Heavy-Duty® Swivel Lift Plates

PART NO.	LOAD RATING (lbs)	A DIA	C	D	E DIA	F	G	P	Q	S DIA
CL-36600-SHR	7000	3/4	2.39	7.73	1.00	1.40	5.10	.53	.41	5.00
CL-36605-SHR	10000	1	2.39	7.73	1.00	1.40	5.10	.53	.41	5.00
CL-36610-SHR	15000	1-1/4	3.29	9.65	1.25	2.00	6.75	.84	.50	7.00
CL-36615-SHR	24000	1-1/2	3.29	9.65	1.25	2.00	6.75	.84	.50	7.00
