Heavy-Duty® Road-Plate Swivel Hoist Rings

Hoist Rings

Save to My Project

What is this?

Product Information

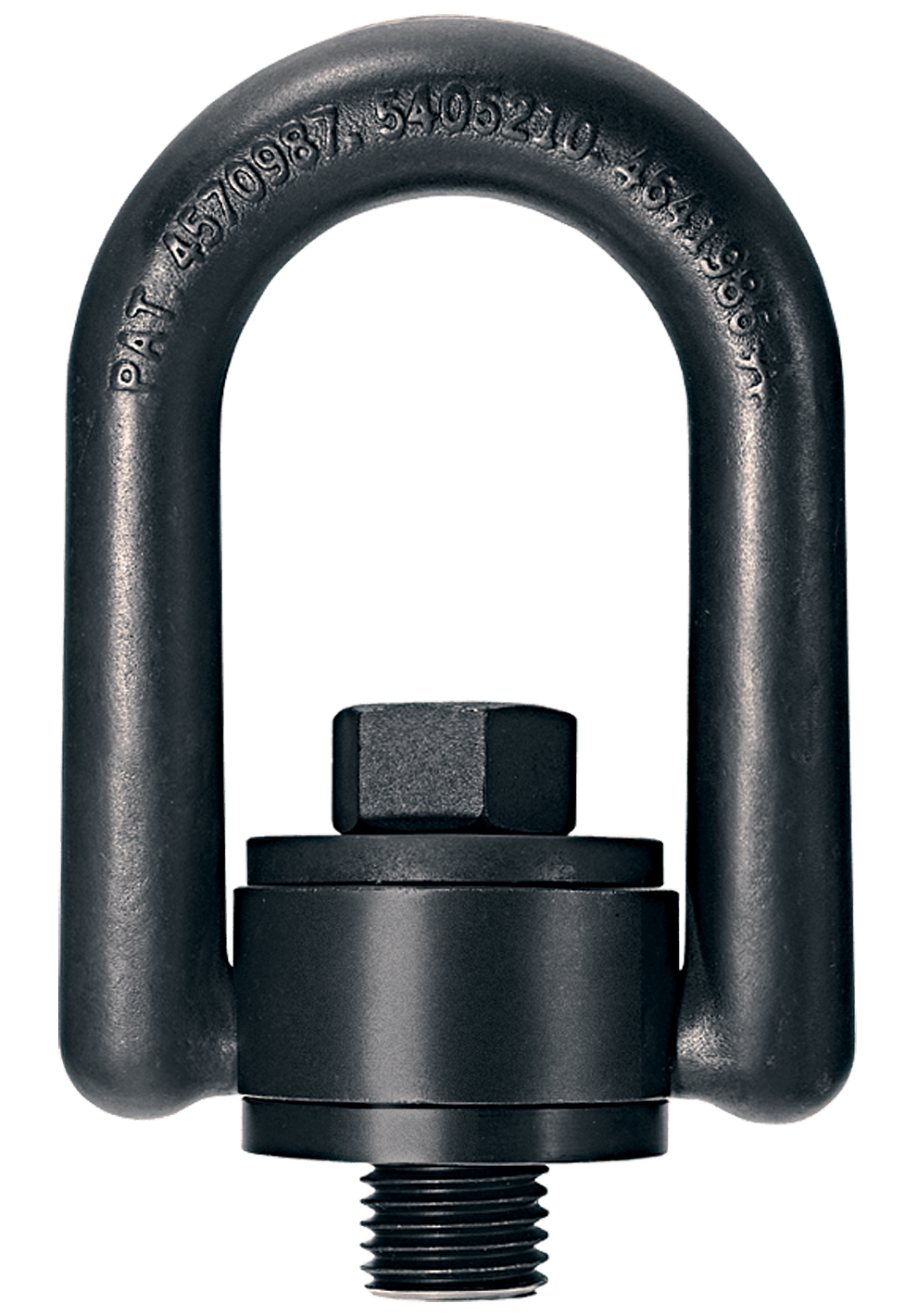

Heavy-Duty® Road-Plate Swivel Hoist Rings

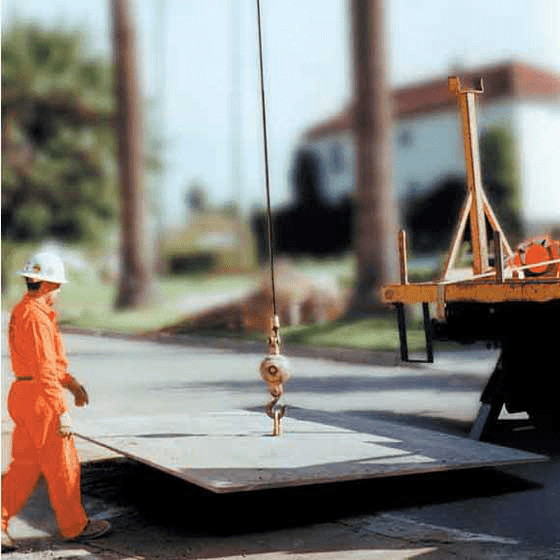

These Heavy-Duty® Swivel Hoist Rings have a shorter, larger-diameter bolt, ideal for lifting heavy road plates. Forged alloy-steel ring pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Safety factor = 5:1. Available with inch threads in load capacities up to 15,000 lbs. Patent no. 4,570,987, 4,641,986, 5,405,210, and other patents pending. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Hoist Ring Technical Information
Hoist Ring Safety Precautions
Types of Hoist Rings

Application Information

Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Heavy-Duty® Road-Plate Swivel Hoist Rings	Alloy Steel	Heat Treated	Black Oxide finish (Cadmium Plating available as a special)

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Heavy-Duty® Road-Plate Swivel Hoist Rings

Inch

QUANTITY	PART NO.	LOAD RATING (lbs)	A THREAD	B ±.12	C	D	E DIA	F	G	K	N DIA	P	INSTALLATION TORQUE (ft-lbs)
	CL-36665-SHR	10000	1-1/2"-6	1.50	2.39	7.37	1.00	1.40	5.10	3.05	2.81	.18	230
	CL-36675-SHR	15000	1-1/2"-6	1.50	3.29	9.22	1.25	2.00	6.75	3.91	3.88	.32	470
