Forged Swivel Hoist Rings

Hoist Rings

Product Information

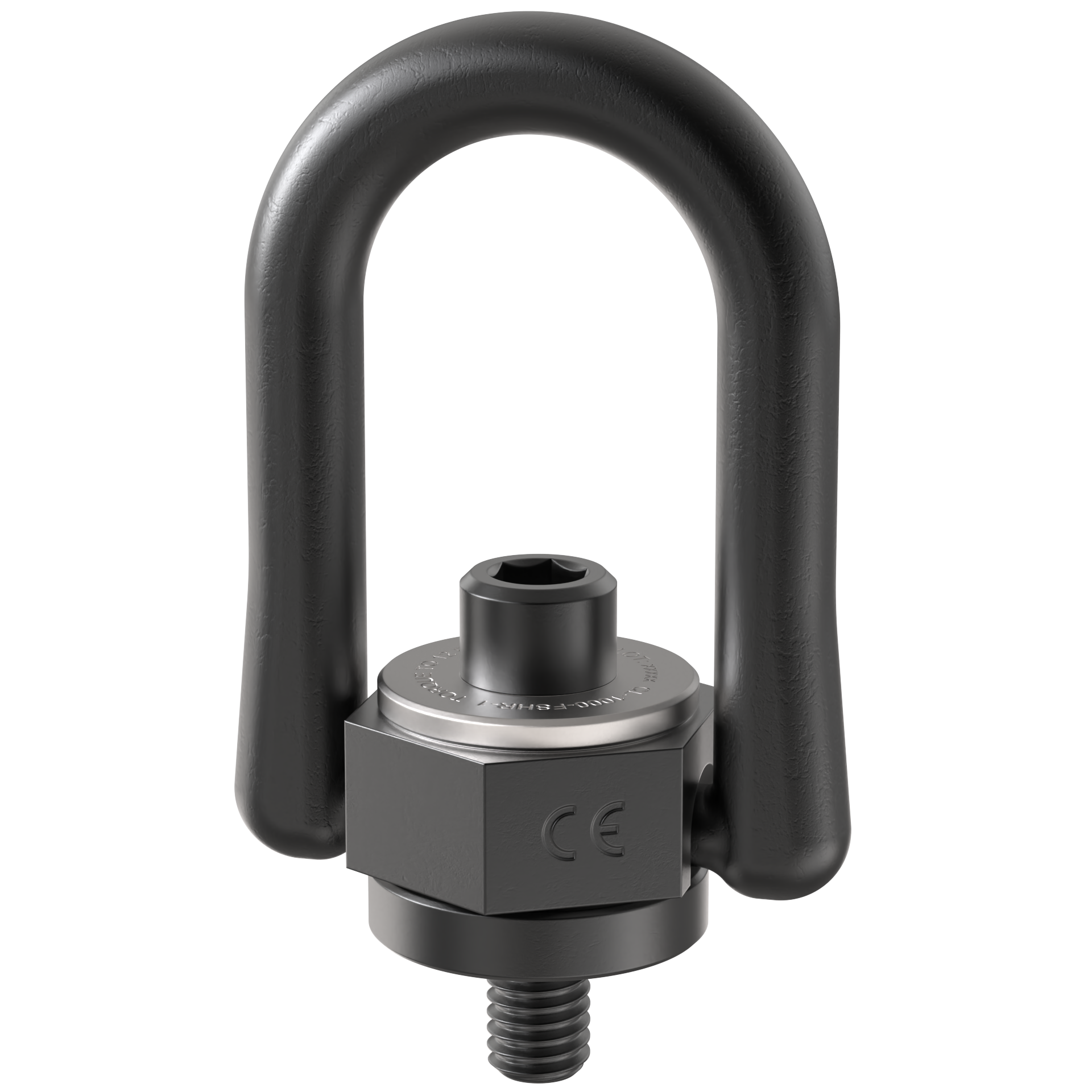

Carr Lane’s Forged Swivel Hoist Rings feature a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Available with inch or metric threads in load capacities up to 10,000 lbs, many with a choice of bolt length. Complies with ASME B30.26 and CE.

Technical Information

Complies with ASME B30.26 and CE.

Application Information

Videos

Forged Swivel Hoist Ring Application

Forged Swivel Hoist Ring Application

Carr Lane’s Forged Swivel Hoist Rings in action!

Carr Lane’s Forged Swivel Hoist Rings in action!

Internal View

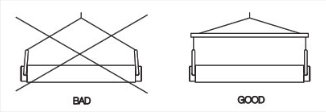

Diagram showcasing the application of Forged Swivel Hoist Rings

Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Body Ring Bushing	4140 Steel	Heat Treated	Black Oxide
Washer	17-4PH	H900	Passivated

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Forged Swivel Hoist Rings

Inch

PART NO.	LOAD RATING (TON)	A THREAD	B	C	D	E DIA	F	G	K	L	N	P	INSTALLATION TORQUE (ft-lbs)
CL-550-FSHR-1	.275	1/4-20	.26	.94	3.28	.42	.64	2.26	1.19	2.87	1.22	.17	5
CL-800-FSHR-1	.4	5/16-18	.56	.94	3.28	.42	.64	2.26	1.25	2.87	1.22	.17	7
CL-800-FSHR-2	.4	5/16-18	1.06	.94	3.28	.42	.64	2.26	1.25	2.87	1.22	.17	7
CL-1000-FSHR-1	.5	3/8-16	.56	.94	3.28	.42	.64	2.26	1.32	2.87	1.22	.17	12
CL-1000-FSHR-2	.5	3/8-16	1.06	.94	3.28	.42	.64	2.26	1.32	2.87	1.22	.17	12
CL-2250-FSHR-1	1.125	1/2-13	1.06	.94	3.28	.42	.64	2.26	1.44	2.87	1.22	.17	25
CL-2500-FSHR-1	1.25	1/2-13	.75	1.50	5.40	.75	1.04	3.56	2.00	4.77	1.95	.26	28
CL-2500-FSHR-2	1.25	1/2-13	1.00	1.50	5.40	.75	1.04	3.56	2.00	4.77	1.95	.26	28
CL-2500-FSHR-3	1.25	1/2-13	1.25	1.50	5.40	.75	1.04	3.56	2.00	4.77	1.95	.26	28
CL-4000-FSHR-1	2	5/8-11	.75	1.50	5.40	.75	1.04	3.56	2.13	4.77	1.95	.26	60
CL-4000-FSHR-2	2	5/8-11	1.00	1.50	5.40	.75	1.04	3.56	2.13	4.77	1.95	.26	60
CL-4000-FSHR-3	2	5/8-11	1.25	1.50	5.40	.75	1.04	3.56	2.13	4.77	1.95	.26	60
CL-5000-FSHR-1	2.5	3/4-10	1.00	1.50	5.40	.75	1.04	3.56	2.25	4.77	1.95	.26	100
CL-5000-FSHR-2	2.5	3/4-10	1.50	1.50	5.40	.75	1.04	3.56	2.25	4.77	1.95	.26	100
CL-7000-FSHR-1	3.5	3/4-10	.95	2.05	7.40	1.13	1.51	5.51	2.92	6.62	2.95	.23	100
CL-7000-FSHR-2	3.5	3/4-10	1.20	2.05	7.40	1.13	1.51	5.51	2.92	6.62	2.95	.23	100
CL-7000-FSHR-3	3.5	3/4-10	1.45	2.05	7.40	1.13	1.51	5.51	2.92	6.62	2.95	.23	100
CL-8000-FSHR-1	4	7/8-9	.95	2.05	7.40	1.13	1.51	5.51	3.05	6.62	2.95	.23	160
CL-8000-FSHR-2	4	7/8-9	1.20	2.05	7.40	1.13	1.51	5.51	3.05	6.62	2.95	.23	160
CL-10000-FSHR-1	5	1"-8	1.20	2.05	7.40	1.13	1.51	5.51	3.17	6.62	2.95	.23	230
CL-10000-FSHR-2	5	1"-8	1.45	2.05	7.40	1.13	1.51	5.51	3.17	6.62	2.95	.23	230
CL-10000-FSHR-3	5	1"-8	2.20	2.05	7.40	1.13	1.51	5.51	3.17	6.62	2.95	.23	230
