Universal Lifting Rings

Hoist Rings

Save to My Project

What is this?

Product Information

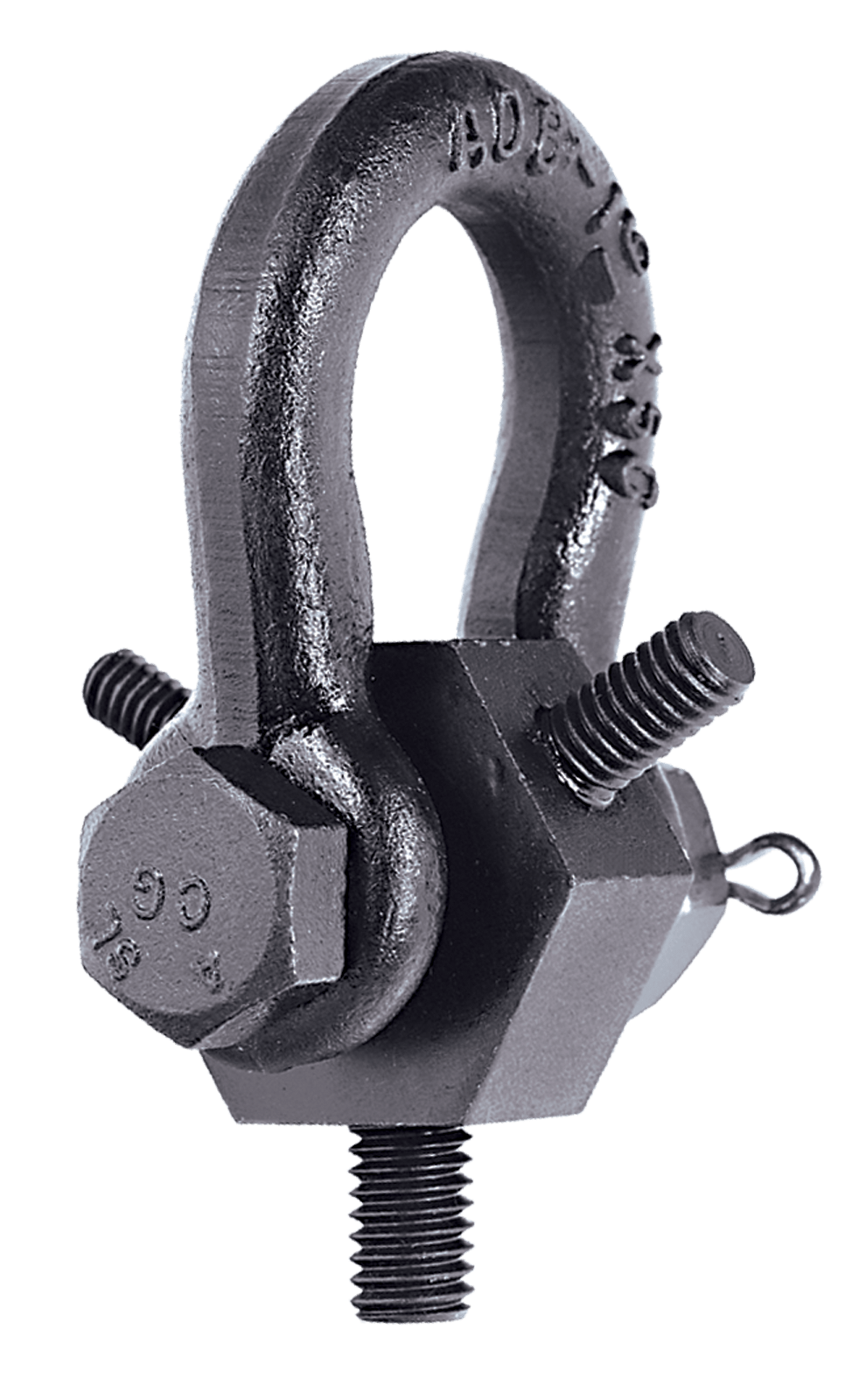

Universal Lifting Rings Part # CL-34005-ULR Carr Lane Mfg.®

Universal Lifting Rings are removable lifting rings that each fit three different thread sizes. Available in two ring sizes, with a different load capacity for each thread size. Suitable for fully vertical lifting only, in-line with the threaded bolt, such as when lifting from a single point or from two points with a spreader bar. Forged alloy-steel shackle. Patent no. 4,557,513. Made in USA.

The smaller size fits three threads with the following load capacities:

1/4-20 400 lbs

5/16-18 800 lbs

3/8-16 1400 lbs

The larger size fits three threads with the following load capacities:

1/2-13 2600 lbs

5/8-11 4000 lbs

3/4-10 6000 lbs

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Hoist Ring Technical Information
Hoist Ring Safety Precautions
Types of Hoist Rings

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Universal Lifting Eyes	Alloy Steel	Heat Treated	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Universal Lifting Rings

Inch

QUANTITY	PART NO.	SCREW	THREAD SIZE	S1 THREAD VERTICAL LOAD CAPACITY (lbs)	S1 THREAD VERTICAL LOAD CAPACITY (lbs)	S1 THREAD VERTICAL LOAD CAPACITY (lbs)	A	B	C	D	E	F
	CL-34005-ULR	S1 S2 S3	1/4-20 5/16-18 3/8-16	400	800	1400	3.06	.50	2.12	.44	1.25	1.38
	CL-34010-ULR	S1 S2 S3	1/2-13 5/8-11 3/4-10	2600	4000	6000	4.50	.75	3.00	.62	1.75	2.00
