Forged Anchor Shackles

Hoist Rings

Save to My Project

What is this?

Product Information

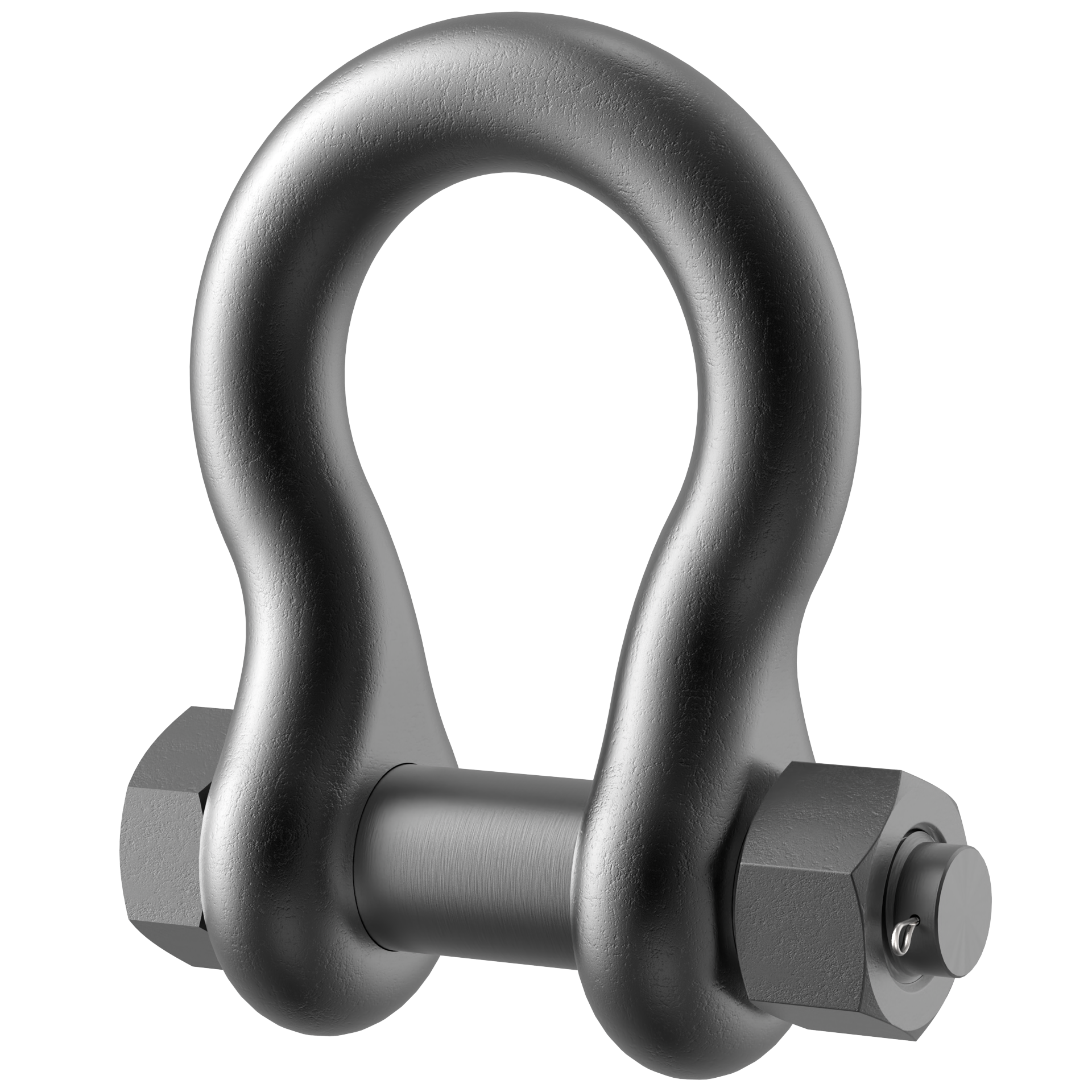

Forged Anchor Shackles Part # CL-36511-FAS Carr Lane Mfg.®

High-strength forged alloy-steel anchor shackle, available in seven sizes. Supplied with a thin-head bolt and a nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3. Safety factor = 6:1.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Click here for Hoist-Ring Safety Precautions

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Forged Anchor Shackles	Alloy Steel	Heat Treated	Black Oxide Finish

DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Forged Anchor Shackles

Inch

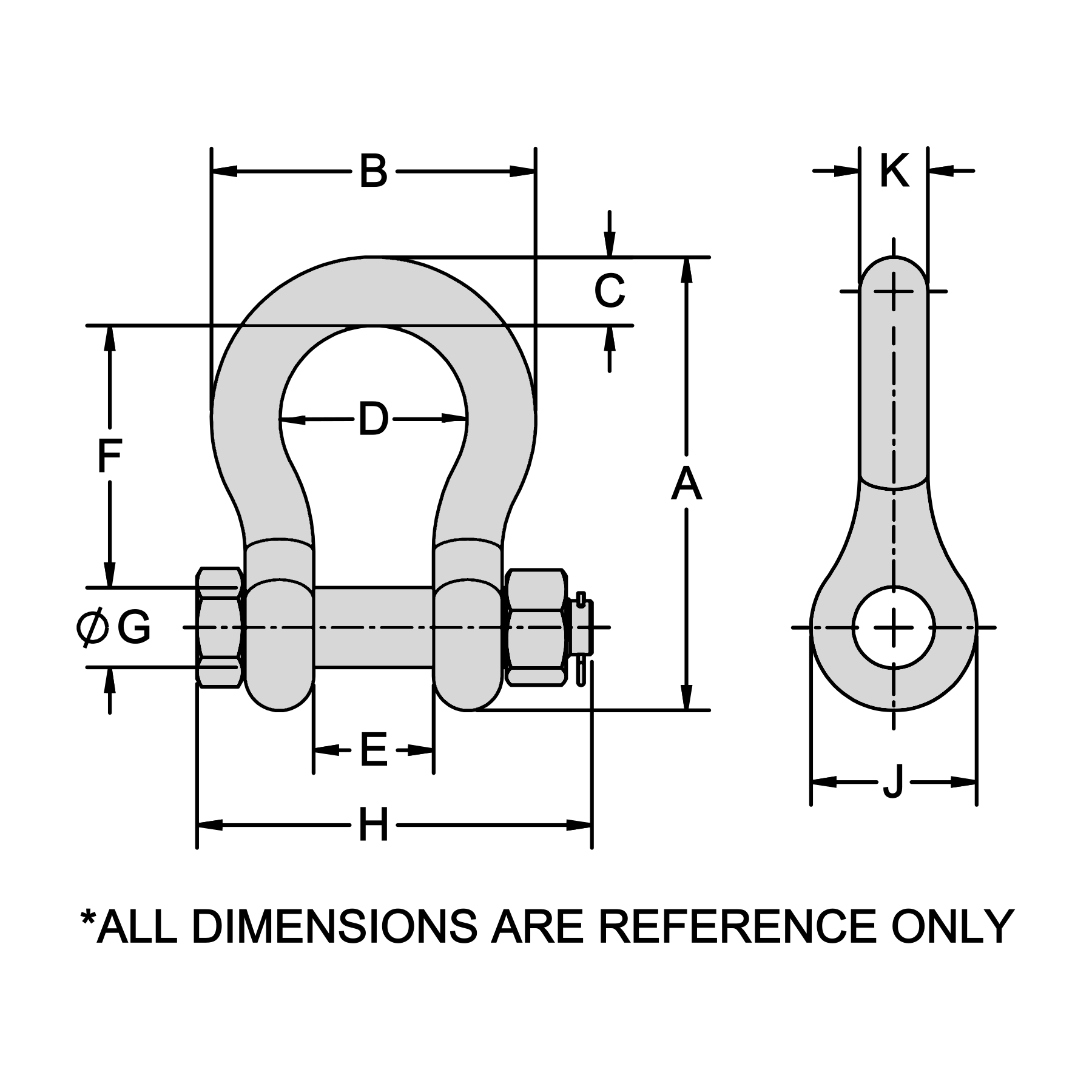

PART NO.	LOAD RATING (lbs)	NOMINAL SHACKLE SIZE	A	B	C	D	E	F	G DIA	H	J	K
CL-36511-FAS	2000	3/8	2.49	1.78	.38	1.03	.66	1.44	.44	2.17	.91	3/8
CL-36521-FAS	3000	7/16	2.91	2.03	.44	1.16	.75	1.69	.50	2.51	1.06	7/16
CL-36531-FAS	4000	1/2	3.28	2.31	.50	1.31	.81	1.88	.63	2.80	1.19	1/2
CL-36541-FAS	6500	5/8	4.19	2.94	.69	1.69	1.06	2.38	.75	3.53	1.50	5/8
CL-36551-FAS	13000	7/8	5.83	4.03	.97	2.28	1.44	3.31	1.00	4.71	2.09	7/8
CL-36561-FAS	19000	1-1/8	7.47	5.16	1.25	2.91	1.81	4.25	1.25	5.09	2.69	1-1/8
CL-36571-FAS	24000	1-1/4	8.25	5.75	1.38	3.25	2.03	4.69	1.38	6.51	3.00	1-1/4
