Pull Handles – Square Design, Counterbored (Thermoplastic)

Handles

Save to My Project

What is this?

Product Information

Pull Handles – Square Design, Counterbored (Thermoplastic)

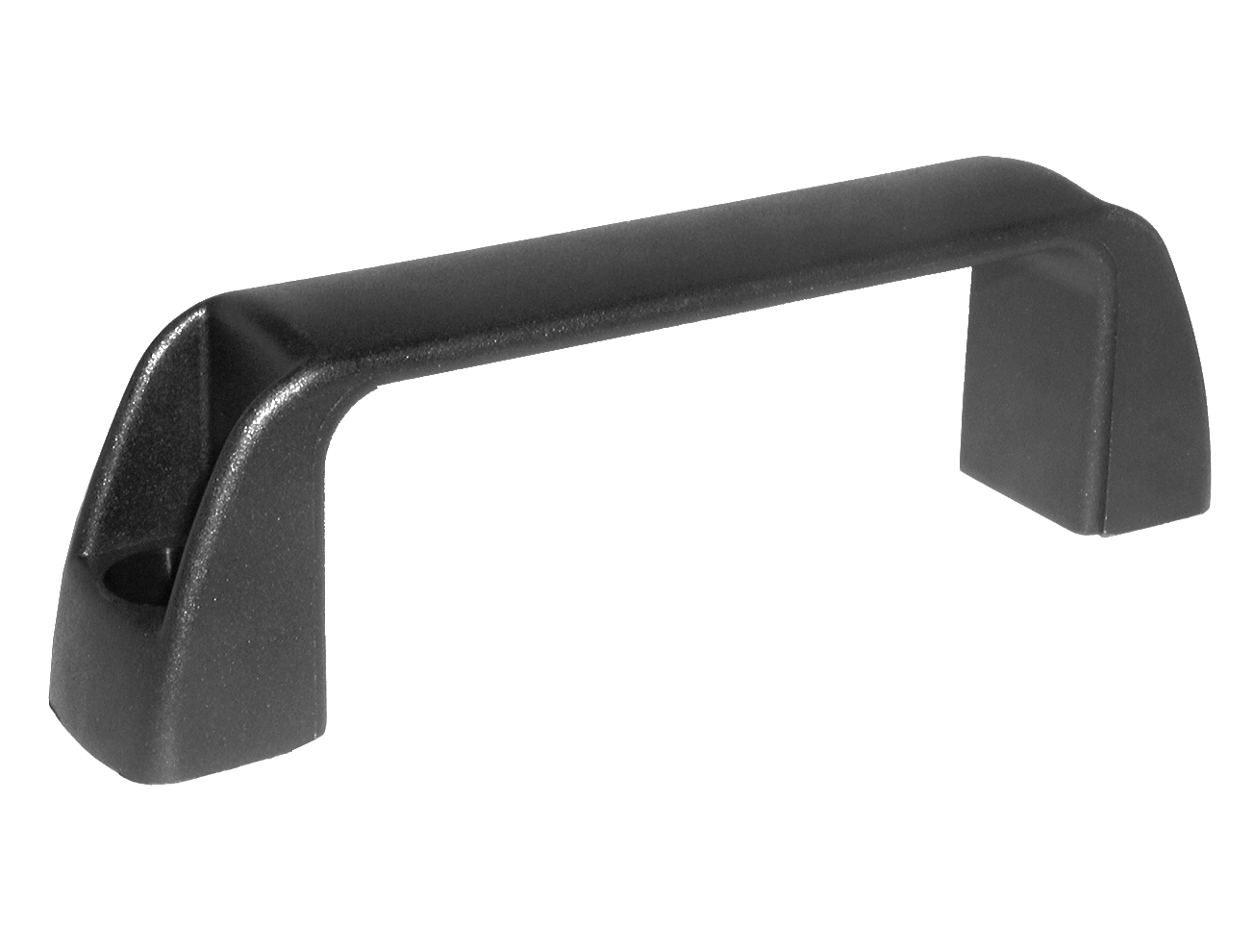

Attractive, modern-design handle that provides a comfortable grip with good ergonomic features. High-strength thermoplastic provides excellent durability. Textured non-slip, non-glare finish. Counterbored for mounting with two socket-head cap screws. Choice of four handle sizes.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Black fiber-reinforced nylon thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 230°F)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Pull Handles – Square Design, Counterbored (Thermoplastic)

PART NO.	A	B	C	D SCREW DIA	E	F	G	H
CL-94-PHSC-4	3.68	4.41	1.18	1/4 or M6	.83	1.42	.24	.28
CL-117-PHSC-5	4.61	5.47	1.34	5/16 or M8	.96	1.61	.24	.35
CL-132-PHSC-5	5.20	6.14	1.46	5/16 or M8	1.06	1.77	.28	.35
CL-179-PHSC-5	7.05	8.03	1.65	5/16 or M8	1.10	1.97	.31	.35

Check Price & Availability
