Pull Handles – Rounded Design, Counterbored (Aluminum)

Handles

Save to My Project

What is this?

Product Information

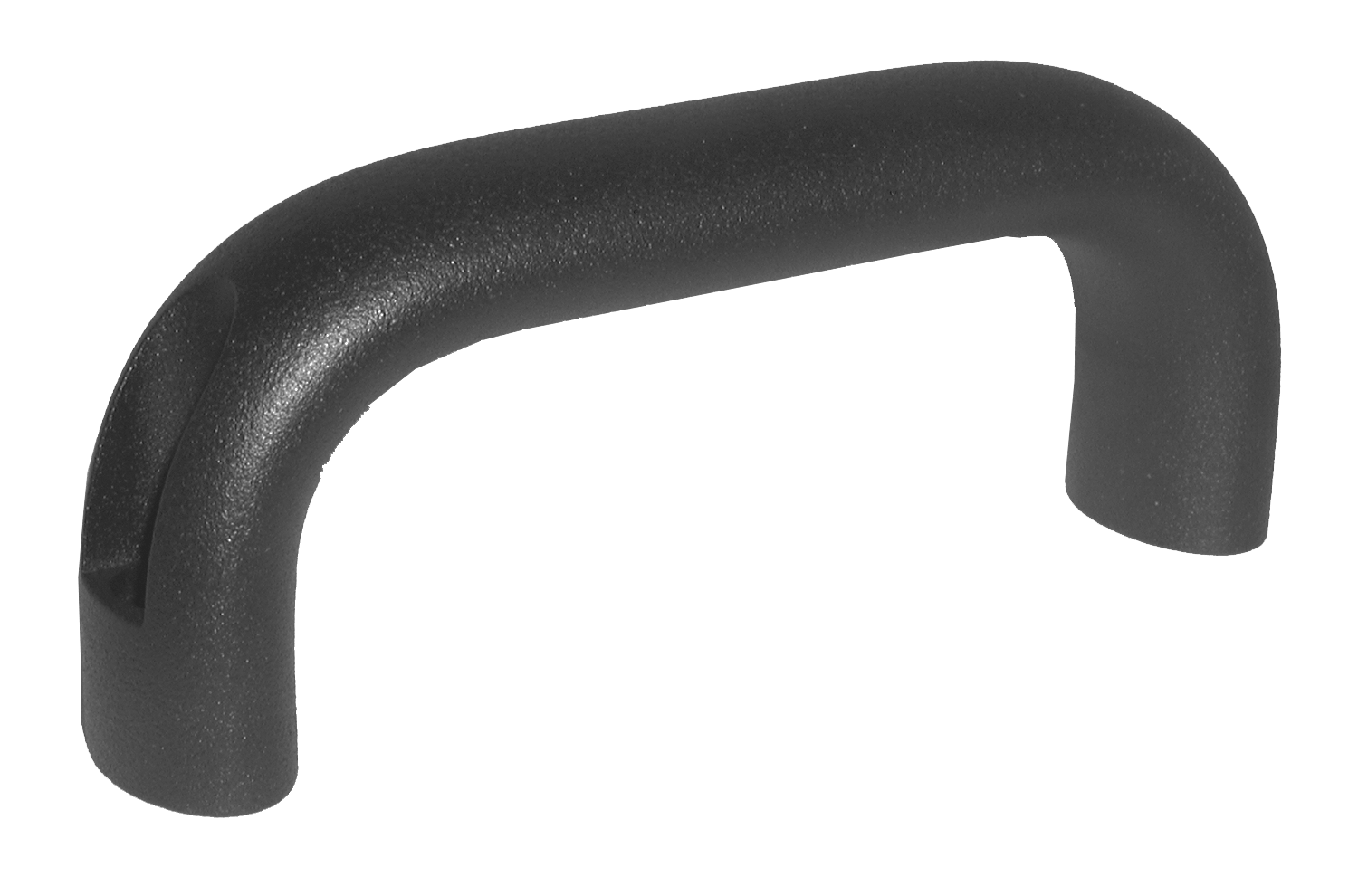

Pull Handles – Rounded Design, Counterbored (Aluminum) Part # CL-116-PHRC-4-1 Carr Lane Mfg.®

Attractive, modern-design aluminum handle provides a comfortable grip with good ergonomic features. Available in either a durable powder-coated pebble finish or plain tumbled finish. Counterbored for mounting with two socket-head cap screws. Choice of four handle sizes.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

Powder Coated
MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Aluminum Extrusion	-	Black Powder-Coated	✔	✔

Plain Tumbled Finish
MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Aluminum Extrusion	-	Tumbled	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Pull Handles – Rounded Design, Counterbored (Aluminum)

Powder Coated

PART NO.	A	B	D	E	F	G	H	J	R
CL-116-PHRC-4	4.57	5.12	1/4 OR M6	1.02	2.17	.43	.24	.67	.67
CL-132-PHRC-4	5.20	5.75	1/4 OR M6	1.02	2.17	.43	.24	.67	.67
CL-164-PHRC-4	6.46	7.01	1/4 OR M6	1.02	2.24	.43	.24	.67	.67
CL-196-PHRC-4	7.72	8.27	1/4 OR M6	1.02	2.24	.43	.24	.67	.67

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Tumbled Finish

PART NO.	A	B	D SCREW DIA	E	F	G	H	J	R
CL-116-PHRC-4-1	4.57	5.12	1/4 or M6	1.02	2.17	.43	.24	.67	.67
CL-132-PHRC-4-1	5.20	5.75	1/4 or M6	1.02	2.17	.43	.24	.67	.67
CL-164-PHRC-4-1	6.46	7.01	1/4 or M6	1.02	2.24	.43	.24	.67	.67
CL-196-PHRC-4-1	7.72	8.27	1/4 or M6	1.02	2.24	.43	.24	.67	.67

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
