Lever-Handle Hubs (Single)

Handles

Save to My Project

What is this?

Product Information

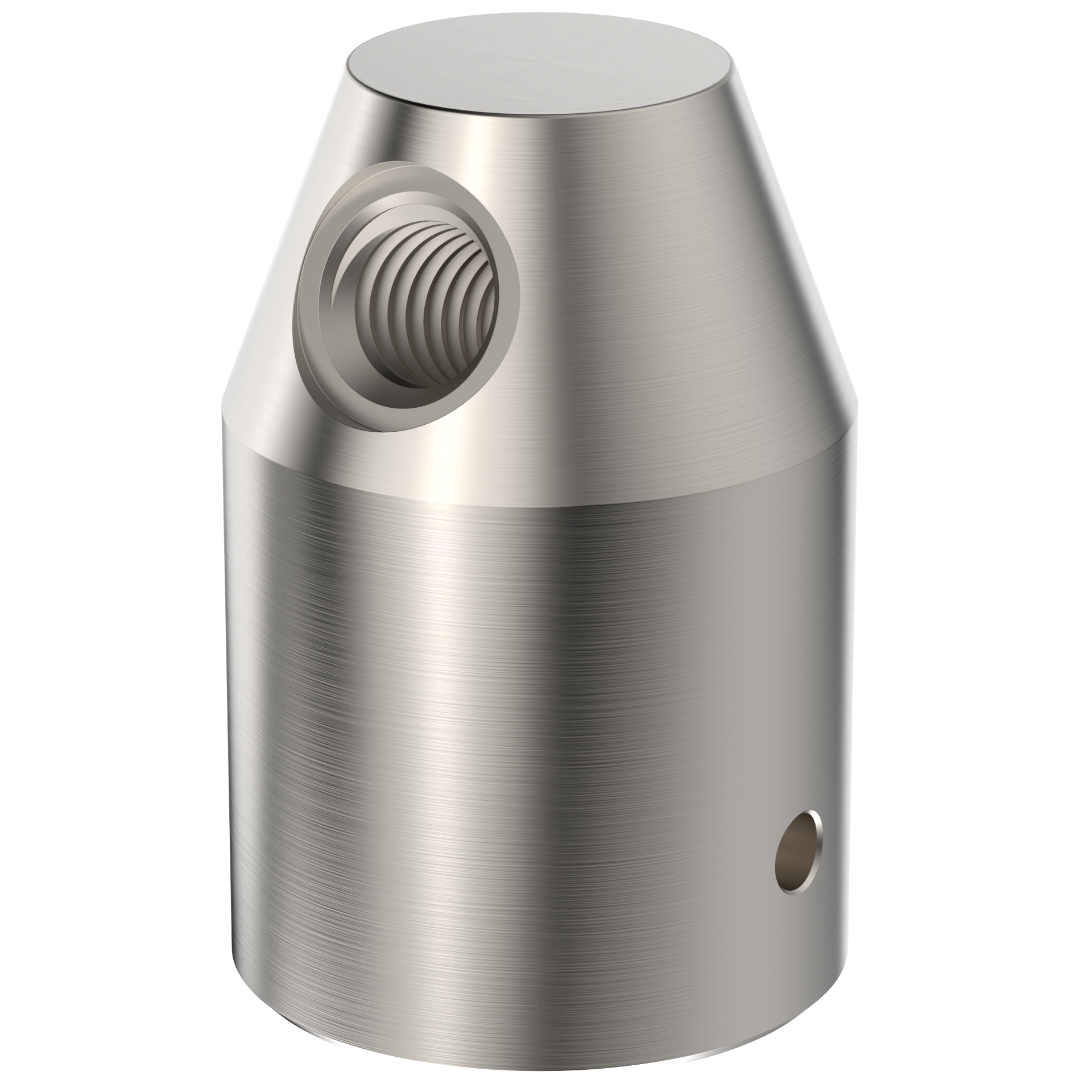

Lever-Handle Hubs (Single) Part # CL-116-LHH-S Carr Lane Mfg.®

To assemble a Lever Handle, first choose a Lever Handle Hub, then customize by choosing bar length and knob style. Hubs are made of stainless steel, polished to a beautiful finish. Choice of two hub sizes, each available with a tapped or reamed center hole.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH	RoHS
300-Series Stainless Steel	-	-	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Lever-Handle Hubs (Single)

Tapped (Inch)

Order Lever Bar and Knob separately

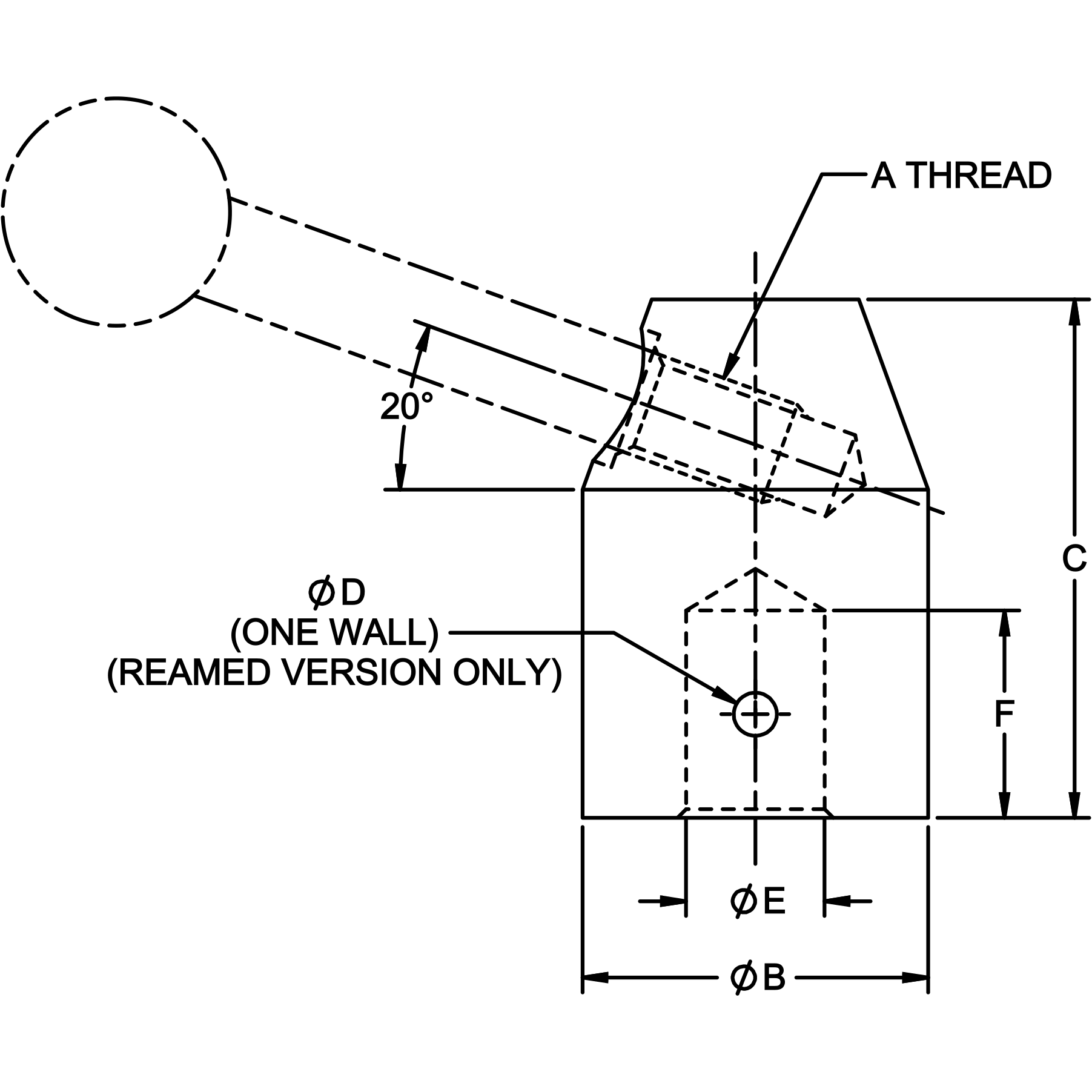

QUANTITY	PART NO.	A THREAD	B DIA	C	D DIA	E	F	MATCHING LEVER BAR
	CL-1160-LHH-S	5/16-18	1	1-1/2	-	3/8-16 Tapped	9/16	SIZE 1
	CL-1280-LHH-S	3/8-16	1-1/4	1-7/8	-	1/2-13 Tapped	11/16	SIZE 2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Reamed (Inch)

Order Lever Bar and Knob separately

QUANTITY	PART NO.	A THREAD	B DIA	C	D DIA	E DIA	F	MATCHING LEVER BAR
	CL-116-LHH-S	5/16-18	1	1-1/2	1/8	3/8 Reamed	5/8	SIZE 1
	CL-128-LHH-S	3/8-16	1-1/4	1-7/8	5/32	1/2 Reamed	3/4	SIZE 2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
