Hand Wheels – Two-Spoke Rounded Design (Thermoplastic) without Handle

Hand Wheels

Save to My Project

What is this?

Product Information

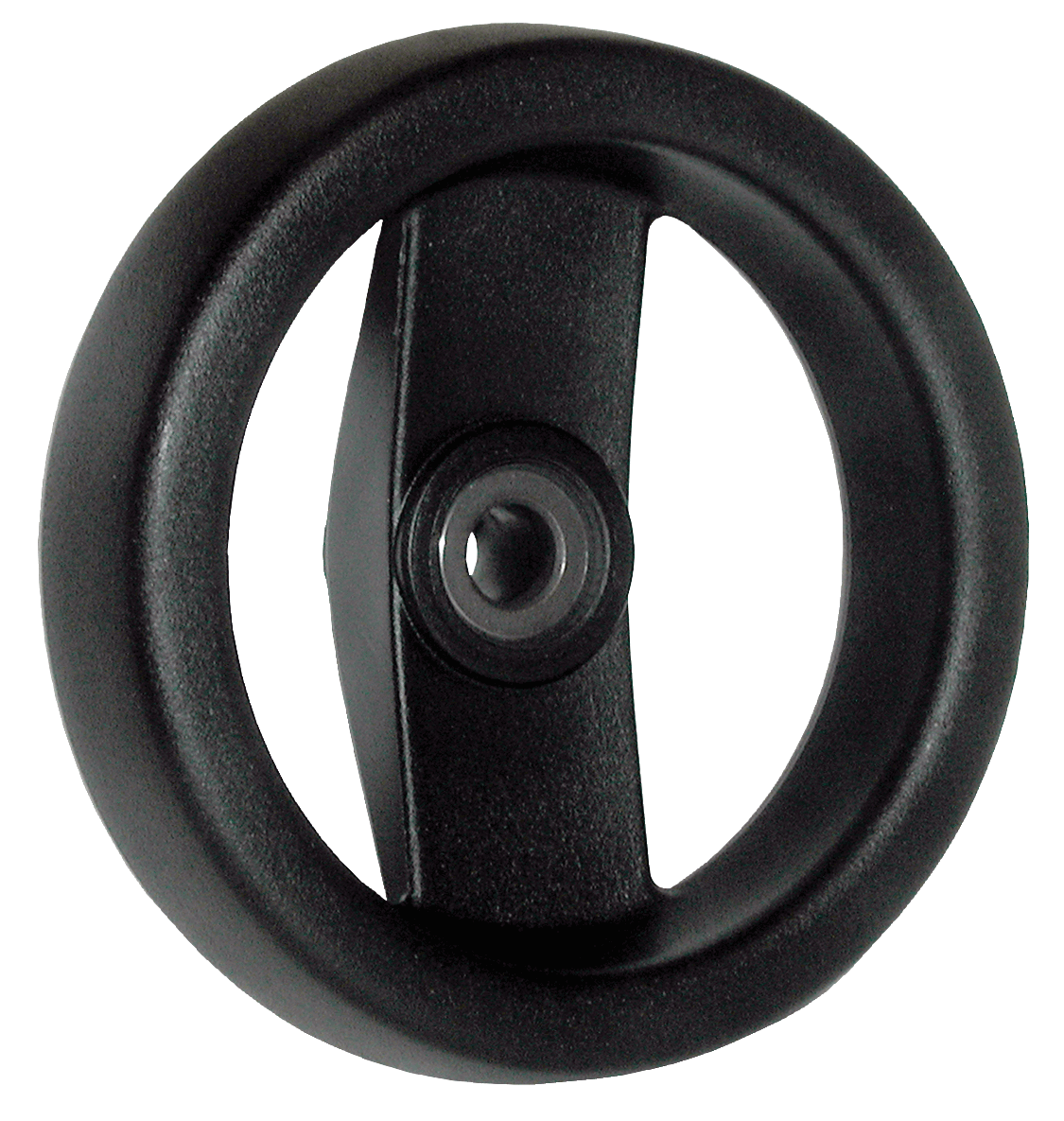

Hand Wheels – Two-Spoke Rounded Design (Thermoplastic) without Handle

Elesa Original Design

High-quality, modern-design thermoplastic Hand Wheel with two spokes. Molded-in steel hub. Available in four sizes, from 4" to 8" diameter. These Hand Wheels are finish-bored to the standard shaft diameter for their size. The version shown here has a plain rim without a handle, but is also available with a standard Revolving Handle or a Foldable Revolving Handle.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Matte black fiber-reinforced nylon thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 230°F)	-	-	✔	✔
Hub	Mild Steel	-	Black Oxide, Molded In	✔	✔
Center Trim Cover	Aluminum	-	Anodized	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Hand Wheels – Two-Spoke Rounded Design (Thermoplastic) without Handle

Inch

PART NO.	A DIA	B HUB DIA	C	D	E	H	J DIA	K BORE DIA	N	P DIA	Q DIA	R
CL-4-HWTR-P	3.90	.71	.79	1.46	.79	.01	.67	.375	—	—	.98	—
CL-5-HWTR-P	4.88	.87	.87	1.73	.87	.01	.83	.375	—	—	1.22	—
CL-6-HWTR-P	6.30	1.02	.98	2.01	.94	.01	.98	.500	—	—	1.57	—
CL-8-HWTR-P	7.87	1.18	1.10	2.40	1.06	.01	1.22	.625	—	—	1.97	—

Check Price & Availability
