Hand Wheels – Solid Disk Design (Thermoplastic) with Foldable Revolving Handle

Hand Wheels

Save to My Project

What is this?

Product Information

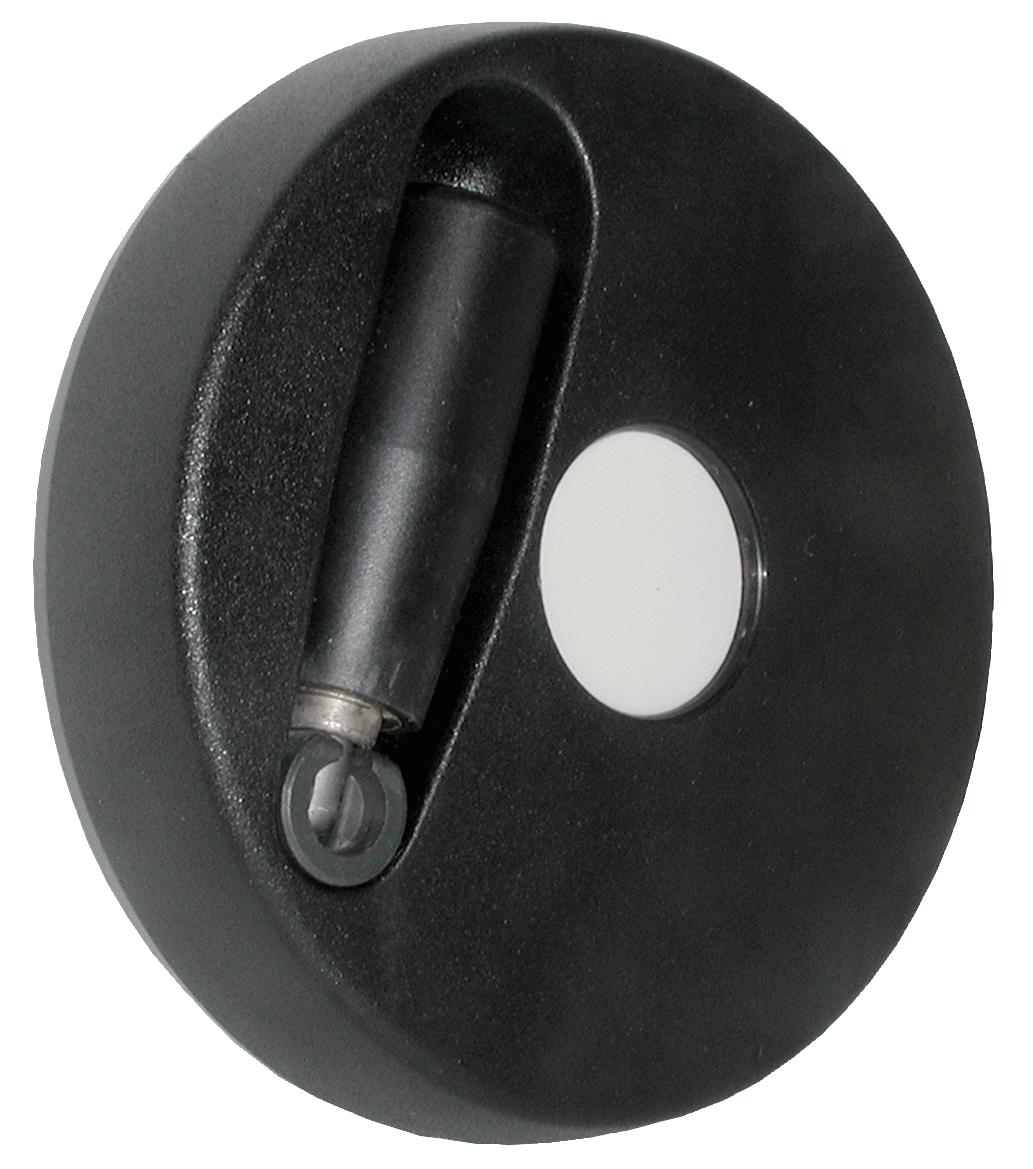

Hand Wheels – Solid Disk Design (Thermoplastic) with Foldable Revolving Handle Part # CL-62-HWSD-P Carr Lane Mfg.®

Elesa Original Design

High-quality, modern-design, solid-disk thermoplastic Hand Wheel. Molded-in steel hub. Available in four sizes, from 4" to 8" diameter. These Hand Wheels are finish-bored to the standard shaft diameter for their size. The version shown here includes a Foldable Revolving Handle, but is also available with a standard Revolving Handle.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Matte black fiber-reinforced nylon thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 230°F)	-	-	✔	✔
Hub	Mild Steel	-	Black Oxide, Molded In	✔	✔
Center Trim Cover	Gray Thermoplastic	-	Push Fit	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Hand Wheels – Solid Disk Design (Thermoplastic) with Foldable Revolving Handle

Inch

QUANTITY	PART NO.	A DIA	B HUB DIA	C	D	E	H	J DIA	K BORE DIA	N	P DIA	Q DIA	R	S	T
	CL-62-HWSD-P	5.91	1.02	1.26	1.73	.55	.01	.94	.500	2.56	.91	1.50	2.28	1.57	.39
