T Handles (Phenolic)

Hand Knobs

Save to My Project

What is this?

Product Information

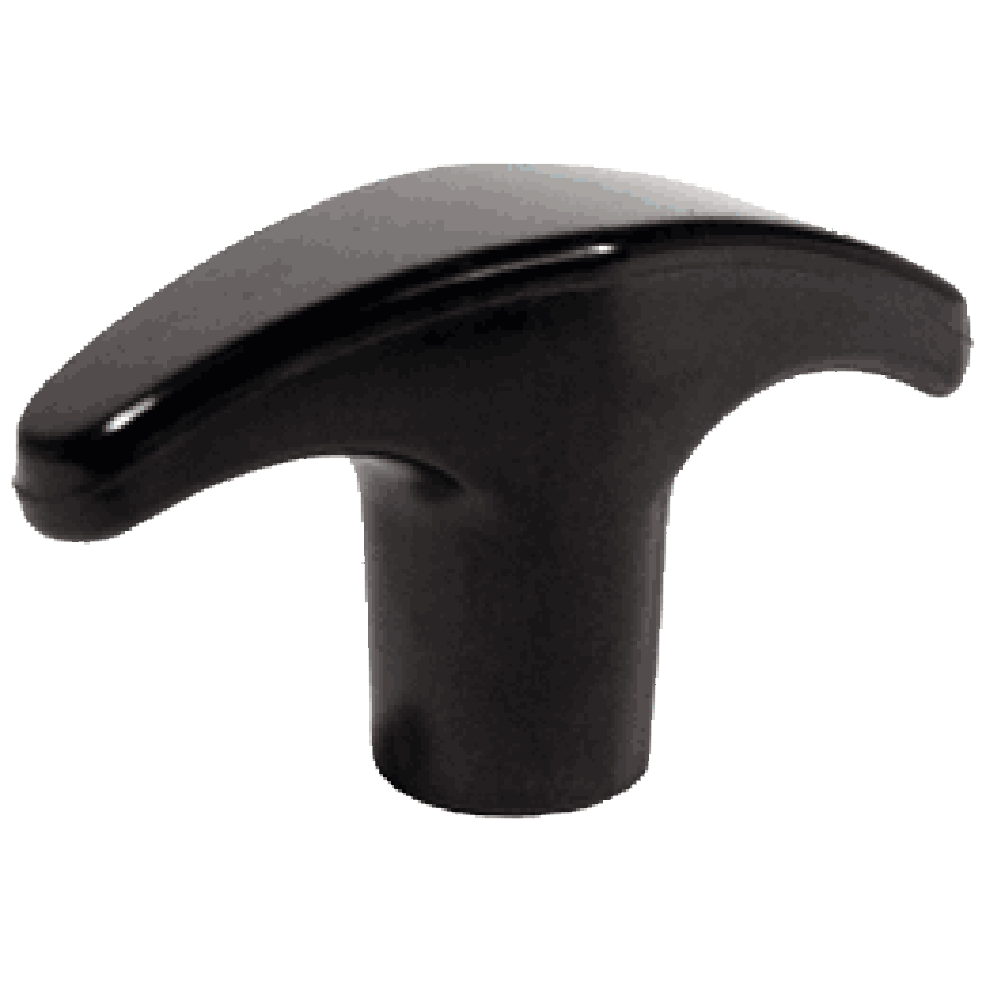

T Handles (Phenolic) Part # CL-424-TH-PACKOF2 Carr Lane Mfg.®

Easy-grip handle for push/pull applications, such as release latches and cabinet doors. Available in one handle size, with tapped-hole sizes from #10-32 to 5/16-18 (M5 to M8 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes, or molded-in studs are available in quantities of 500 and above. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

T Handles (Phenolic)

Inch

PART NO.	A	B	C DIA	D	E THREAD	F
CL-424-TH-PACKOF2	2-1/4	1-1/4	9/16	11/16	#10-32	5/16
CL-432-TH-PACKOF2	2-1/4	1-1/4	9/16	11/16	1/4-20	7/16
CL-434-TH-PACKOF2	2-1/4	1-1/4	9/16	11/16	1/4-28	7/16
CL-442-TH-PACKOF2	2-1/4	1-1/4	9/16	11/16	5/16-18	7/16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	A (mm)	B (mm)	C DIA (mm)	D (mm)	E THREAD	THREAD PITCH (mm)	F (mm)
	CLM-422-TH-PACKOF2	57	32	14	17	M5	.8	8

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
