Tapered Handles – Tapped (Phenolic)

Hand Knobs

Save to My Project

What is this?

Product Information

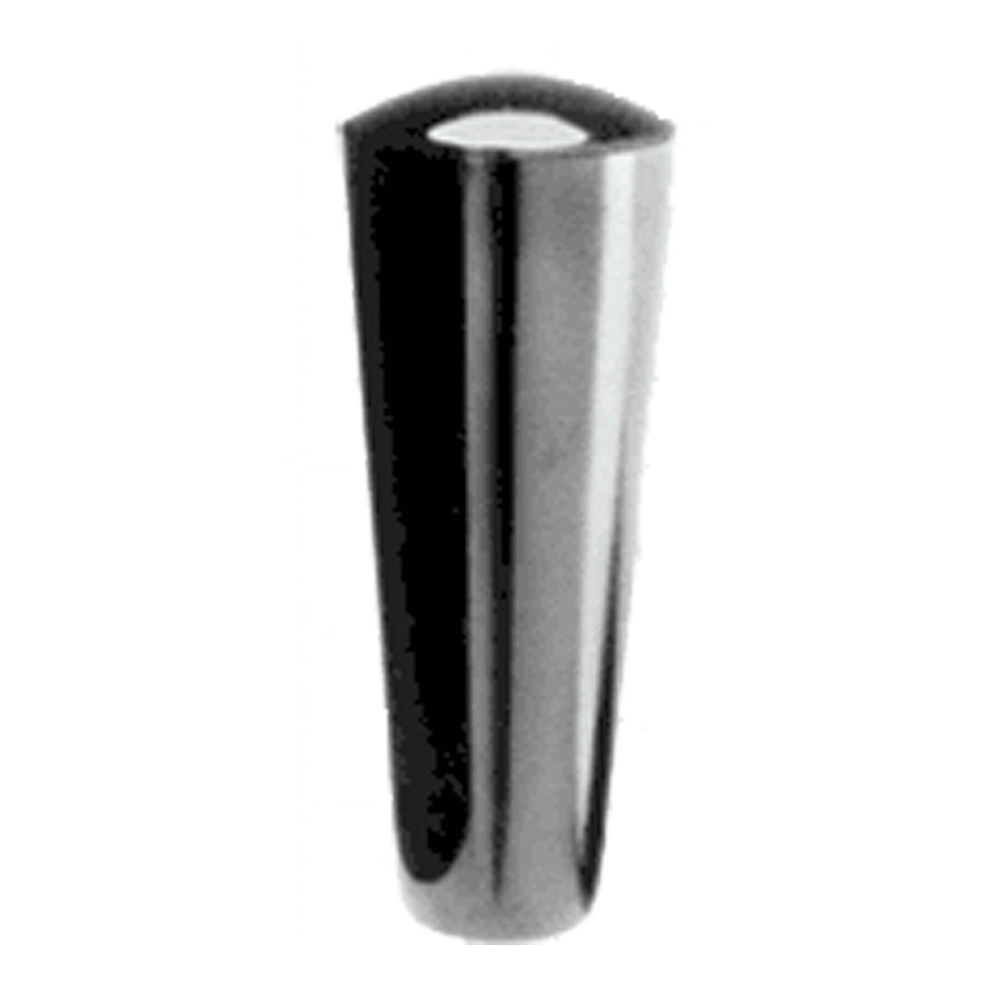

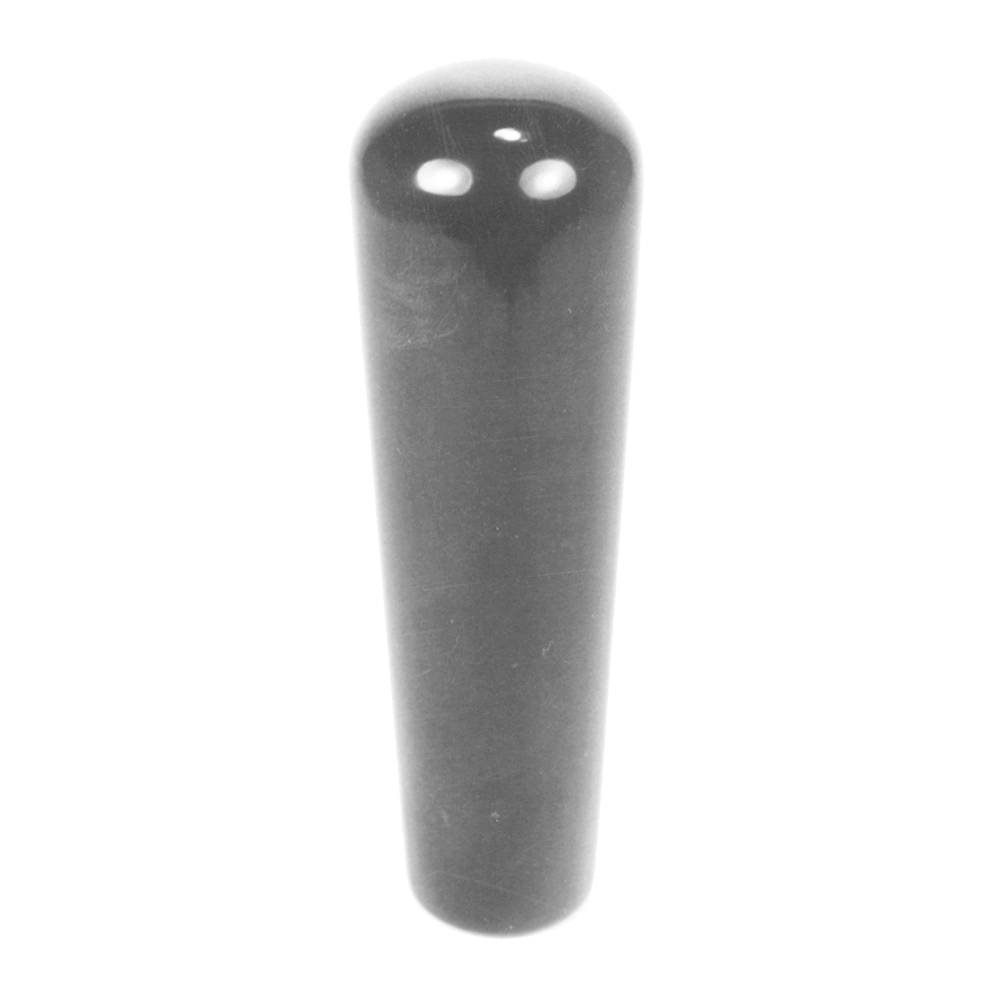

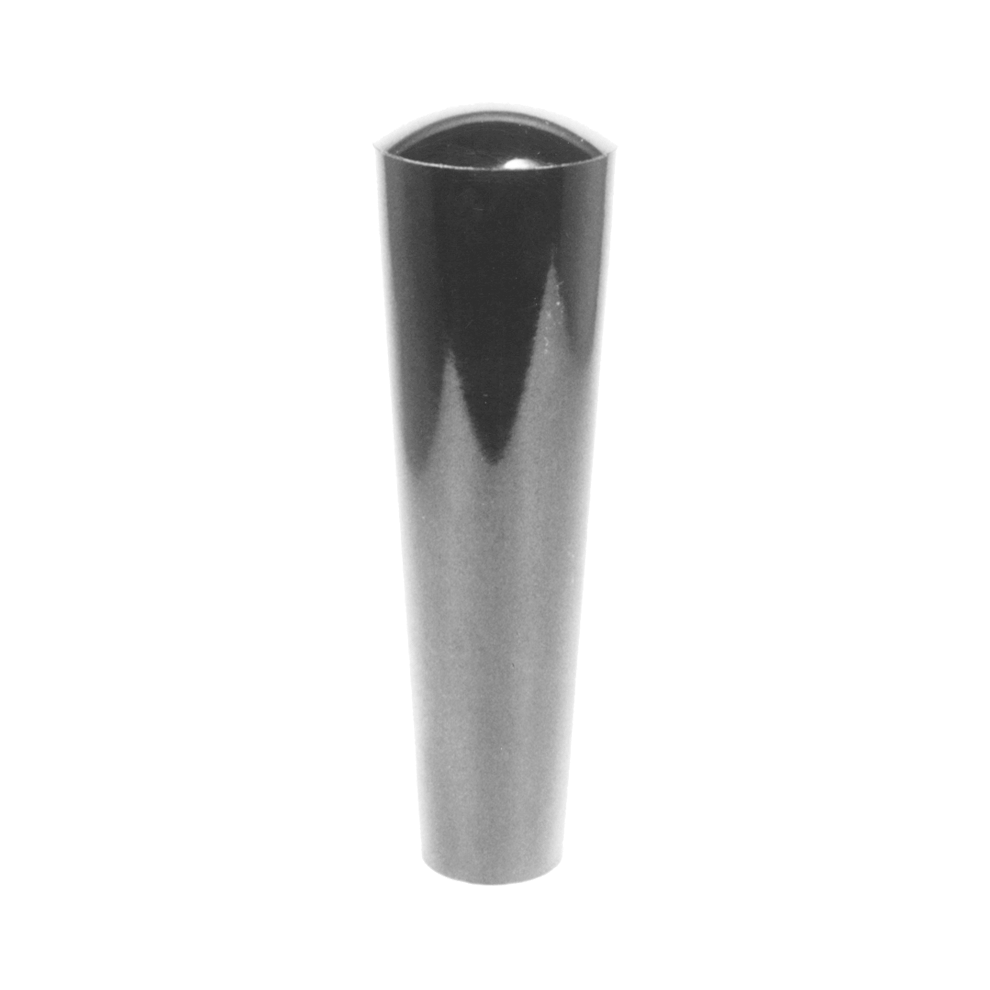

Tapered Handles – Tapped (Phenolic) Part # CLM-18-PH Carr Lane Mfg.®

Heavy-duty design that makes an excellent grasp handle or machine shift lever. Choice of three handle sizes, available with tapped-hole sizes from 1/4-20 to 1/2-13 (M6 to M10 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Available Sizes

Diagram showcasing the application of Tapered Handles Tapped Phenolic

1/2-13

M10

3/8-16

1/4-20

5/16-18

3/8-16

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Tapered Handles – Tapped (Phenolic)

Inch

PART NO.	A DIA	B	C DIA	D THREAD	E
CL-1-PH-PACKOF2	1	2-5/8	5/8	1/4-20	7/16
CL-15-PH-PACKOF2	1	2-5/8	5/8	5/16-18	7/16
CL-16-PH-PACKOF2	1	2-5/8	5/8	3/8-16	1/2
CL-2-PH	1-1/8	3-7/8	3/4	3/8-16	5/8
CL-3-PH	1-3/8	4-1/2	1	1/2-13	2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A DIA	B	C DIA	D THREAD	THREAD PITCH (mm)	E
CLM-6-PH	25.5	67	16	M6	1	11
CLM-18-PH	25.5	67	16	M8	1.25	10
CLM-8-PH	28.5	98	19	M8	1.25	11
CLM-10-PH	35	114	25.5	M10	1.5	51
