Tapered Handles – Counterbored Through Hole (Phenolic)

Hand Knobs

Save to My Project

What is this?

Product Information

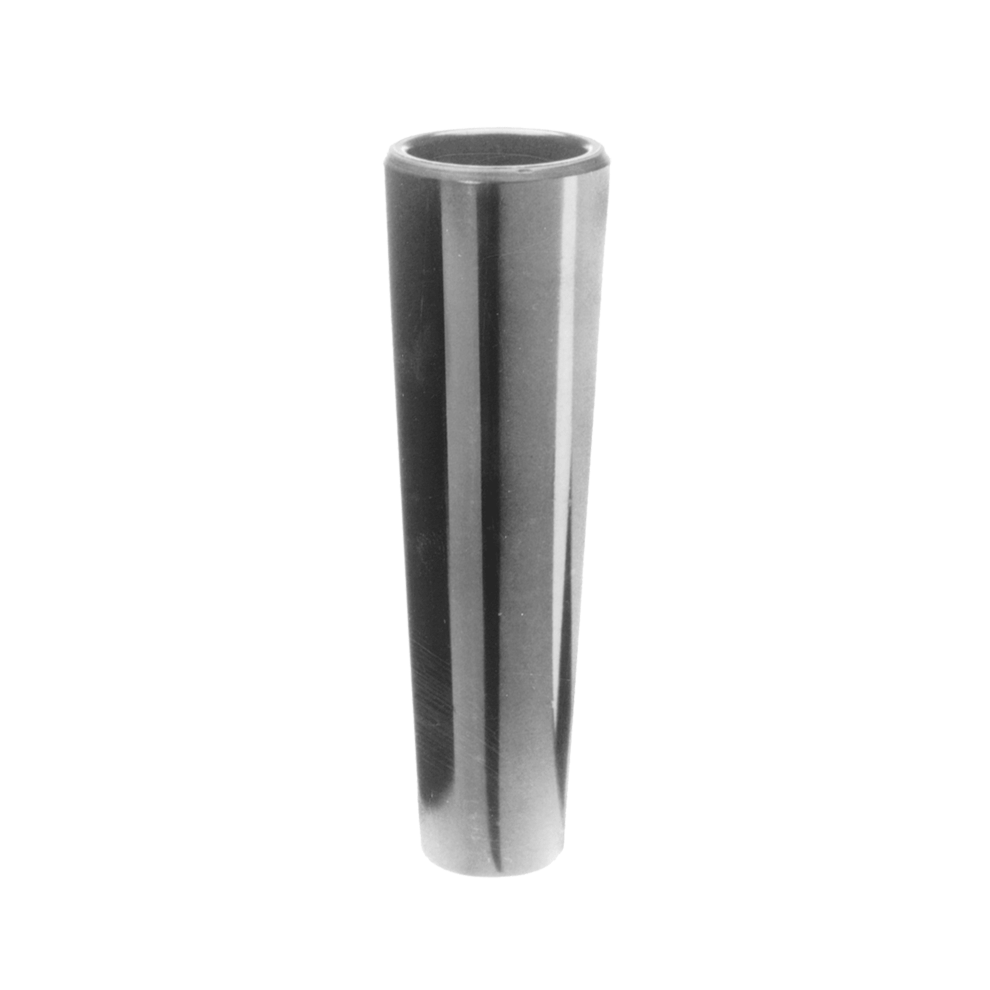

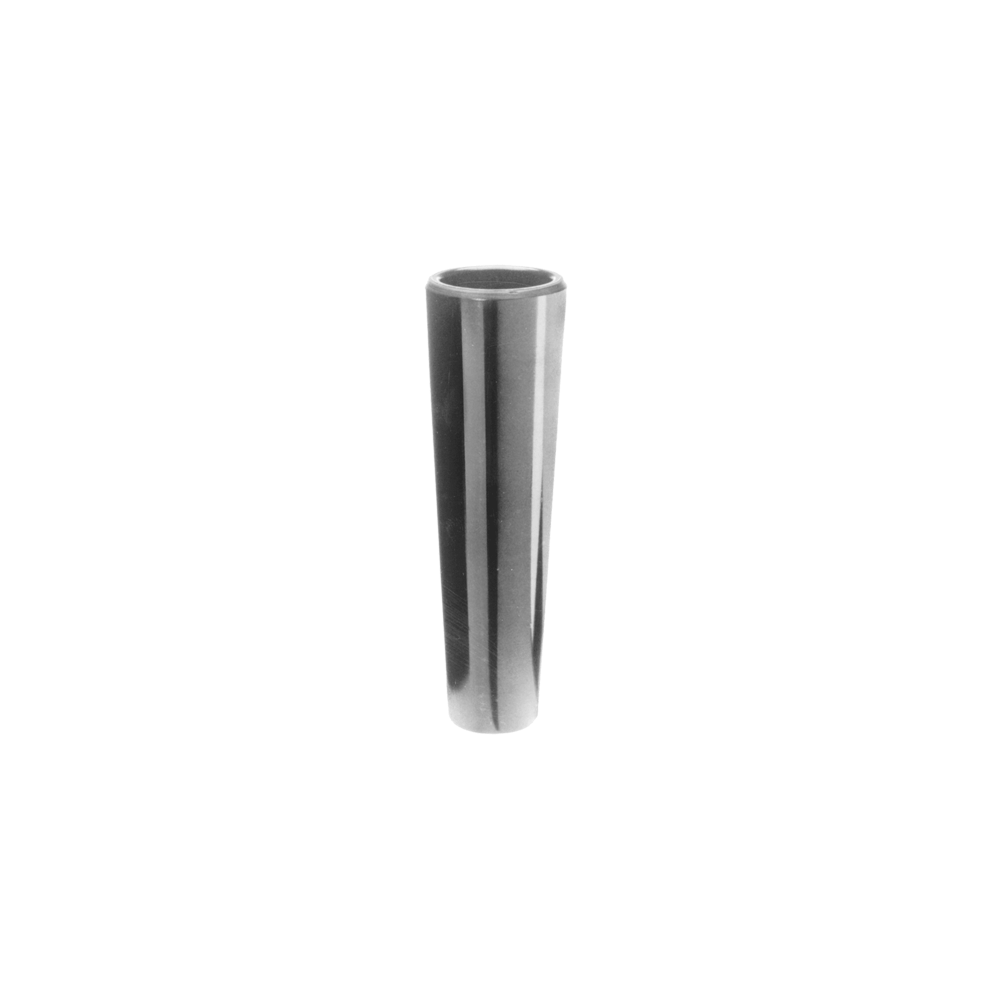

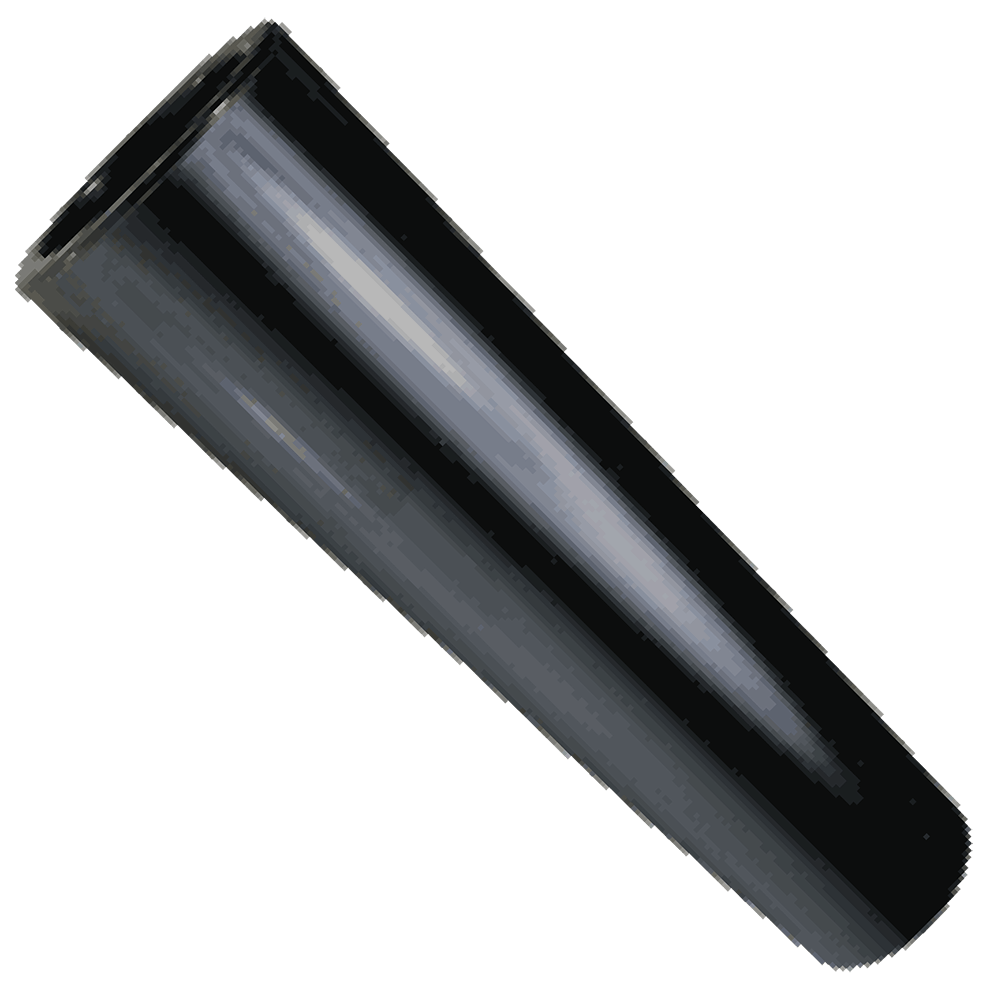

Tapered Handles – Counterbored Through Hole (Phenolic) Part # CL-10-PH-PACKOF2 Carr Lane Mfg.®

Heavy-duty design that makes an excellent grasp handle or machine shift lever. The version shown here is made of solid phenolic plastic, with a counterbored through-hole. This type can be used as a rotating handle by installing with a Shoulder Screw. Choice of three handle sizes. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Available Sizes

Diagram showcasing the application of Tapered Handles Counterbored Through Hole Phenolic

3/8 Dia

1/4 Dia

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Tapered Handles – Counterbored Through Hole (Phenolic)

PART NO.	A DIA	B	C DIA	D DIA NOMINAL	D DIA ACTUAL	E
CL-10-PH-PACKOF2	1	2-9/16	5/8	1/4	.251 / .256	5/8
CL-20-PH-PACKOF2	1-1/8	3-11/16	3/4	3/8	.380 / .385	2-5/8
CL-30-PH	1-3/8	4-3/32	1	3/8	.380 / .390	2-5/8
