Pull Knobs – Flat Top (Phenolic)

Hand Knobs

Save to My Project

What is this?

Product Information

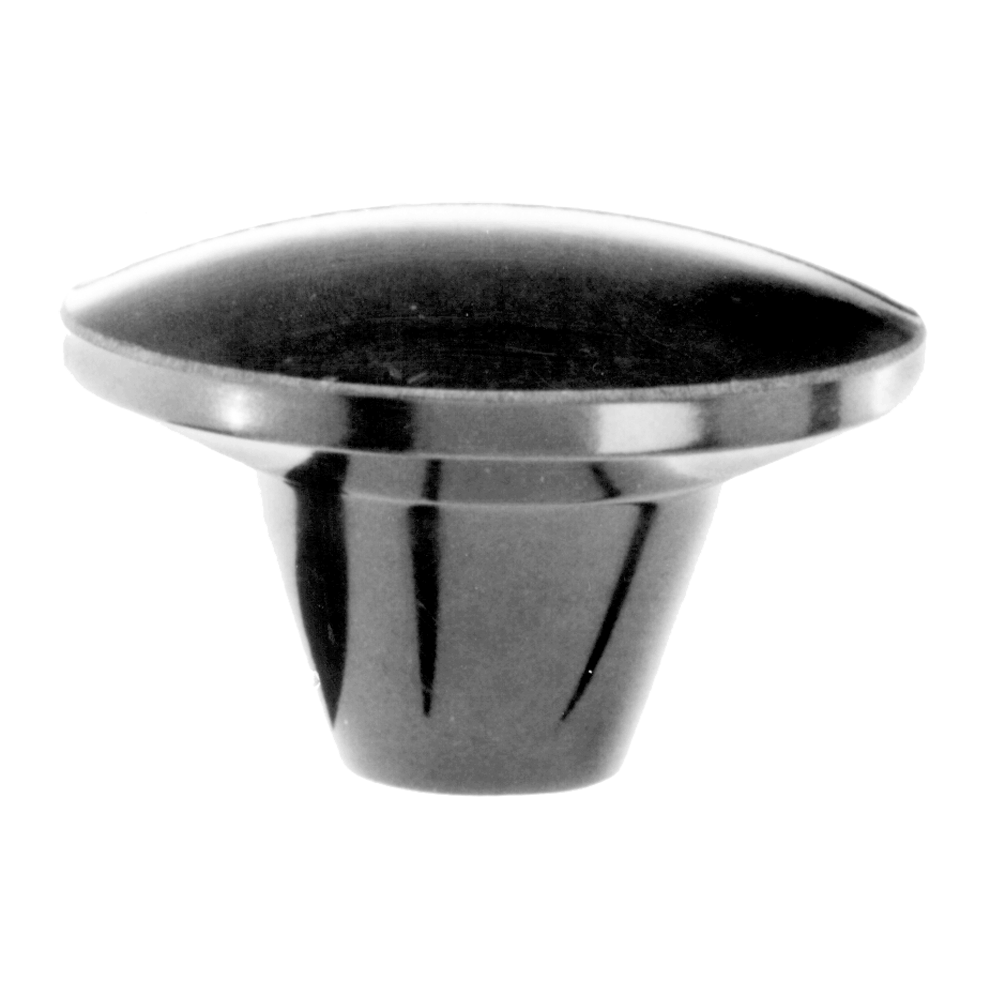

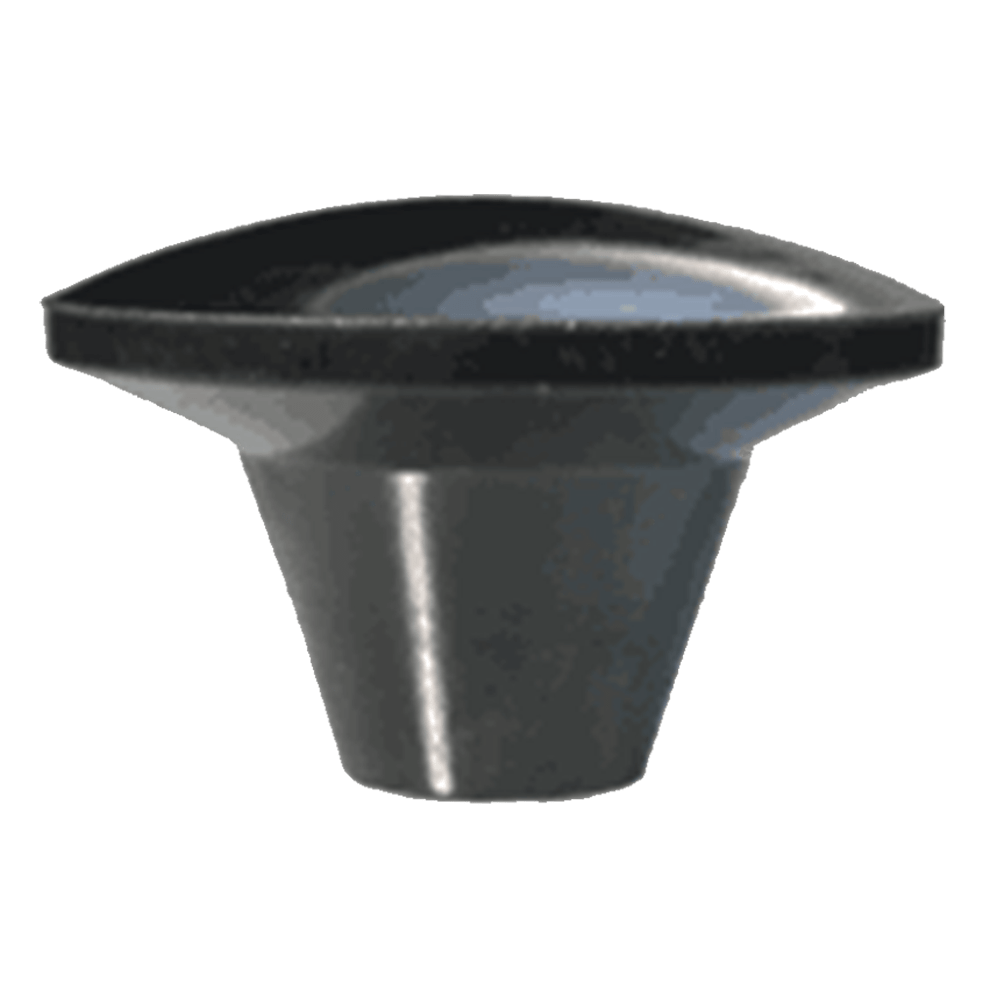

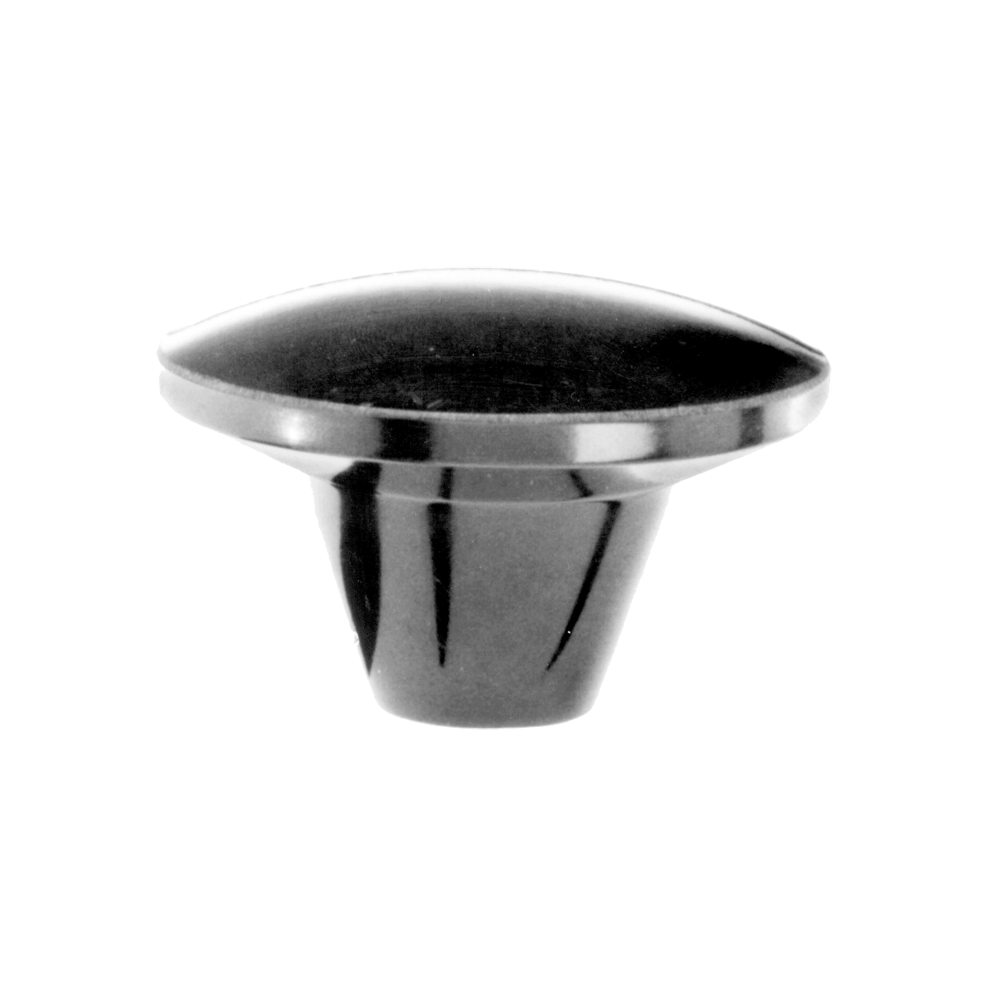

Pull Knobs – Flat Top (Phenolic) Part # CL-424-PK-PACKOF2 Carr Lane Mfg.®

Versatile knobs with an enlarged head for pulling, pushing, or lifting. Choice of two knob sizes, available with tapped-hole sizes from #10-32 to 3/8-16 (M5 to M8 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Available Sizes

Diagram showcasing the application of Pull Knobs Flat Top Phenolic

#10-32

1/4-20

5/16-18

3/8-16

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Pull Knobs – Flat Top (Phenolic)

Inch

PART NO.	A DIA	B	C DIA	D	E THREAD	F
CL-424-PK-PACKOF2	1-3/8	7/8	5/8	5/8	#10-32	5/16
CL-432-PK-PACKOF2	1-3/8	7/8	5/8	5/8	1/4-20	7/16
CL-632-PK-PACKOF2	1-13/16	1-3/16	5/8	7/8	1/4-20	7/16
CL-642-PK-PACKOF2	1-13/16	1-3/16	5/8	7/8	5/16-18	1/2
CL-652-PK-PACKOF2	1-13/16	1-3/16	5/8	7/8	3/8-16	3/8

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A DIA (mm)	B (mm)	C DIA (mm)	D (mm)	E THREAD	THREAD PITCH (mm)	F (mm)
CLM-422-PK-PACKOF2	35	22	16	16	M5	.8	10
CLM-432-PK-PACKOF2	35	22	16	16	M6	1	11
CLM-642-PK-PACKOF2	46	30	16	22	M8	1.25	10
